2023 Norco Optic C Frame
$0.00
$0.00
$0.00
$0.00
Free shipping or in-store pickupSpecs
- Wheel Size: 29"
- Rear Travel: 125mm
- Frame Material: Carbon
Key Features
About This Bike
The 2023 Norco Optic C frameset is a highly advanced and meticulously designed mountain bike frameset that offers exceptional performance and versatility. It combines the strength and lightness of a carbon front triangle with the durability and affordability of an aluminum rear triangle, striking a perfect balance between weight savings and robustness. This frame composition ensures a nimble and responsive ride, allowing riders to tackle various terrains with confidence and ease.
One notable feature of the Norco Optic C frameset is the Universal Derailer Hanger. This hangerless interface is compatible with different derailleurs, offering flexibility and ease of maintenance. It allows riders to easily switch between different drivetrain setups without the need for specific hangers, providing convenience and versatility.

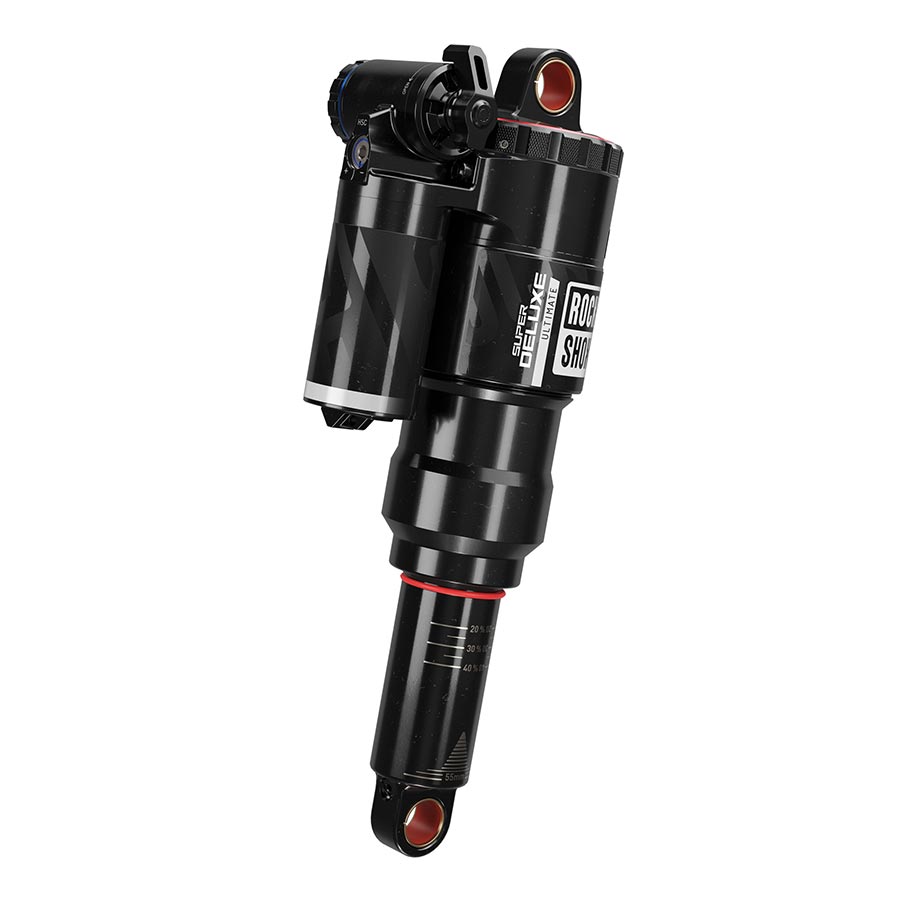

Another key component of the frameset is the RockShox Super Deluxe Ultimate rear shock. With 125mm of travel, this high-performance shock absorber ensures smooth and controlled suspension, enabling riders to confidently tackle technical descents and rough trails. The Super Deluxe Ultimate is known for its reliability and adjustability, allowing riders to fine-tune their suspension settings to suit their riding style and preferences.
The frameset also features a press-fit bottom bracket, which provides a secure and reliable interface between the frame and the crankset. This type of bottom bracket design enhances power transfer efficiency, enabling riders to transfer their energy more directly to the drivetrain. The press-fit bottom bracket also helps to reduce weight and increase frame stiffness, further enhancing the overall performance of the bike.
In summary, the 2023 Norco Optic C frameset offers a range of impressive features that make it a top choice for mountain bike enthusiasts. From the combination of a carbon front triangle and aluminum rear triangle for optimal strength and weight savings, to the Universal Derailer Hanger for easy compatibility with different drivetrain setups, this frameset is designed to deliver a superior riding experience. The inclusion of the RockShox Super Deluxe Ultimate rear shock ensures excellent suspension performance, while the press-fit bottom bracket enhances power transfer efficiency. With its innovative design and high-quality components, the Norco Optic C frameset is built to excel in various riding conditions and elevate the performance of any rider.
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| Size | S | M | L | XL |
|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" |
| Front Travel | 140 | 140 | 140 | 140 |
| Rear Travel | 125 | 125 | 125 | 125 |
| Reach | 420 | 450 | 480 | 510 |
| Stack | 611 | 620 | 629 | 638 |
| Head Tube Angle | 65 | 65 | 65 | 65 |
| Fork Offset | 42 | 42 | 42 | 42 |
| Seat Tube Length | 395 | 415 | 445 | 485 |
| Effective Seat Tube Angle | 76 | 76 | 76 | 76 |
| Rear Centre Length | 425 | 430 | 435 | 440 |
| Bottom Bracket Drop | 38 | 38 | 38 | 38 |
| Bottom Bracket Height | 337 | 337 | 337 | 337 |
| Horizontal Top Tube | 572 | 605 | 637 | 669 |
| Wheelbase | 1157 | 1196 | 1235 | 1275 |
| Standover | 664 | 680 | 698 | 719 |
| Head Tube Length | 100 | 110 | 120 | 130 |
| Trail | 129 | 129 | 129 | 129 |
| Recommended Seatpost Drop | 125 | 150 | 170 | 170 |
| Maximum Post Insertion | 205 | 220 | 240 | 250 |
| Stem Length | 45 | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 170 | 170 |
| Tire Size | 2.35"-2.6" | 2.35"-2.6" | 2.35"-2.6" | 2.35"-2.6" |
| Water Bottle Compatible | 1x750mL | 1x750mL | 1x750mL | 1x750mL |
Detailed Specs By Build Kit
| KIT | C Frame Kit | C3 | C2 SRAM | C2 Shimano | C1 | C AXS | |
|---|---|---|---|---|---|---|---|
| FRAME | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ | |
| FORK | - | RockShox Pike Select RC, DebonAir, 140mm Travel, 42mm Offset | RockShox Pike Select + RC, DebonAir, 140mm Travel, 42mm Offset | Fox Performance Elite FLOAT 36, GRIP2, 140mm Travel, 42mm Offset | Fox Performance Elite FLOAT 36, GRIP2, 140mm Travel, 42mm Offset | RockShox Pike Ultimate RC2, DebonAir, 140mm Travel, 42mm Offset | |
| REAR SHOCK | RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm | RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm | RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm | Fox Performance Elite FLOAT DPX2, 190x45mm | Fox Performance Elite FLOAT DPX2, 190x45mm | RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm | |
| REAR SHIFTER | - | Shimano SLX SL-M7100-IR I-Spec EV | SRAM GX Eagle | Shimano XT SL-M8100 I-Spec EV | Shimano XTR M9100 I-Spec EV | SRAM GX Eagle AXS | |
| REAR DERAILLEUR | - | Shimano XT RD-M8100 | SRAM GX Eagle | Shimano XT RD-M8100 | Shimano XTR M9100 | SRAM GX Eagle AXS | |
| CRANKSET | - | Praxis Cadet M30, 32T, 170mm | SRAM GX Eagle DUB Lunar, 32T, 170mm | Praxis Girder Carbon M30, 32T, 170mm | e*thirteen TRS Race Carbon, 32T, 170mm | SRAM GX Eagle DUB Lunar, 32T, 170mm | |
| BOTTOM BRACKET | - | Praxis M30 PF92 | SRAM DUB PF92 | Praxis M30 BB92 | e*thirteen BB92 | SRAM DUB PF92 | |
| CHAIN TENSIONER | - | GW 1x Flip Guide | e*thirteen | - | - | - | |
| CASSETTE | - | Shimano SLX, 10-51T, 12 Speed | SRAM XG1275 Eagle, 10-52T | Shimano XT CS-M8100, 10-51T, 12 Speed | Shimano XTR M9100, 10-51T, 12 Speed | SRAM XG1275 Eagle, 10-52T | |
| CHAIN | - | Shimano Deore | SRAM GX Eagle | Shimano XT CN-M8100 | Shimano XTR M9100 | SRAM GX Eagle | |
| FRONT BRAKE | - | Shimano BR-MT420, 4 Piston, Organic Pads | SRAM DB8, 4 Piston, Organic Pads | Shimano XT BR-M8020, 4 Piston, Metallic Pads | Shimano XTR M9120, 4 Piston, Organic Pads | SRAM Code RSC, 4 Piston, Organic Pads | |
| FRONT BRAKE ROTOR | - | TRP 180mm | SRAM CenterLine 203mm | Shimano SM-RT70 Ice Tech, 203mm | Shimano XTR MT900 Freeza, 203mm | SRAM CenterLine 203mm, 6 bolt | |
| REAR BRAKE | - | TRP Slate EVO, 4 Piston, Resin Pads | SRAM DB8, 4 Piston, Organic Pads | Shimano XT BR-M8020, 4 Piston, Metallic Pads | Shimano XTR M9120, 4 Piston, Organic Pads | SRAM Code RSC, 4 Piston, Organic Pads | |
| REAR BRAKE ROTOR | - | TRP 180mm | SRAM CenterLine 180mm | Shimano SM-RT70 Ice Tech, 180mm | Shimano XTR MT900 Freeza, 180mm | SRAM CenterLine 180mm, 6 bolt | |
| BRAKE LEVERS | - | TRP Slate EVO | SRAM DB8 | Shimano XT BR-M8020 | Shimano XTR | SRAM Code RSC | |
| HANDLEBAR | - | Butted 6061 Alloy, 780mm, 20mm Rise | e*thirteen, 800mm, 20mm Rise | TranzX Butted 6061 Alloy, 780mm, 20mm Rise | OneUp Carbon, 800mm, 20mm Rise | OneUp Carbon, 800mm, 20mm Rise | |
| STEM | - | 6061 Alloy, 45mm Length, 35mm Clamp | 6061 Alloy, 45mm Length, 35mm Clamp | Norco 6061 Alloy, 45mm Length, 35mm Clamp | 6061 Alloy, 45mm Length, 35mm Clamp | OneUp EDC Compatible, 50mm Length, 35mm Clamp | |
| SEATPOST | - | X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL) | X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL) | X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL) | X-Fusion Manic Dropper, 31.6mm, 125mm (s), 150mm (M,L), 170mm (XL) | X-Fusion Manic, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL) | |
| HEADSET | FSA Internal Sealed Bearing | FSA Internal Sealed Bearing | FSA Internal Sealed Bearing | FSA Internal Sealed Bearing | FSA Internal Sealed Bearing | FSA Internal Sealed Bearing | |
| SADDLE | - | Fizik Alpaca Terra, Wingflex | Fizik Alpaca Terra, Wingflex | Fizik Alpaca Terra, Wingflex | Fizik Alpaca Terra, Wingflex | Fizik Alpaca Terra, Wingflex | |
| GRIPS | - | DMR Deathgrip | WTB Waffle Lock-On | DMR Deathgrip | DMR Deathgrip | DMR Deathgrip | |
| SEATPOST CLAMP | Norco Alloy Nutted Clamp | - | - | - | - | - | |
| FRONT HUB | - | Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt | DT Swiss 350 15x110mm Boost, 6 Bolt | Shimano XT HB-8110-B, 15x110mm Boost, Center Lock | Shimano XT HB-8110-B, 15x110mm Boost, Center Lock | Crank Bros. Synthesis E Carbon, 15x110mm Boost, 6-bolt | |
| REAR HUB | - | Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt | DT Swiss 350 12x148mm Boost, XD, 6 Bolt | Shimano XT FH-8110-B 12x148mm Boost, 32H, Micro Spline, Center Lock | Shimano XT FH-8110-B, 12x148mm Boost, Micro Spline, Center Lock | Crank Bros. Synthesis E Carbon 12x148mm Boost, XD, 6 Bolt | |
| REAR HUB SKEWER | 148mm x 12mm TA | - | - | - | - | - | - |
| RIMS | Stan's Flow S1 29", 32H | Stan's Flow S1 29", 32H | Stan's Flow S1 29", 32H | Stan's Flow S1 29", 32H | Crank Bros. Synthesis E Carbon, 28H, 29" | ||
| FRONT TIRE | - | Vittoria Mazza 2.4" Trail G2.0 | Vittoria Mazza 2.4" Trail G2.0 | Vittoria Mazza 2.4" Trail G2.0 | Vittoria Mazza 2.4" Trail G2.0 | Vittoria Mazza 2.4" Trail G2.0 | |
| REAR TIRE | - | Vittoria Martello 2.35" Trail G2.0 | Vittoria Martello 2.35" Trail G2.0 | Vittoria Martello 2.35" Trail G2.0 | Vittoria Martello 2.35" Trail G2.0 | Vittoria Martello 2.35" Trail G2.0 | |
| SPOKES/NIPPLES | - | Sapim Sprint DB Stainless | Sapim Sprint DB Stainless | Sapim Sprint DB Stainless | Sapim Sprint DB Stainless | Butted Stainless Black | |
| VALVES | - | Stan's Universal 35mm Presta Valve Stem | Stan's Universal 35mm Presta Valve Stem | Stan's Universal 35mm Presta Valve Stem | Stan's Universal 35mm Presta Valve Stem | Stan's Universal 35mm Presta Valve Stem | |
| SEALANT | - | Stan's - 200ml | Stan's - 200ml | Stan's - 200ml | Stan's - 200ml | Stan's - 200ml | |
| PRICE | $2,699 | $4,299 | $5,499 | $5,599 | $6,599 | $7,999 |
Disclaimers
- Mountain bikes, road bikes, and gravel bikes are fully assembled prior to shipping. Del Sol, E11even, Haro, and Tuesday bikes will ship as received from the original manufacturer in the original manufacturer packaging. All other bikes including kids bikes, cruisers, bmx bikes, etc. may be shipped in the original manufacturers packaging.
- While every effort is made to ensure the accuracy of the above information, it is entered by real live humans and humans make mistakes. The majority of the bikes on our website are specced exactly as they come from the manufacturers. Any upgrades or customizations will be listed separately. Please confirm with Airpark Bike Co if there are any questions about the included specification for the bike you are looking at.
- Bike component specifications including (but not limited to) suspension, drivetrain, brakes, tires, and wheels are subject to change by the manufacturer without notice.
- Any indicated component upgrades included or purchased in conjunction with a bike will be replacements for OEM components on the bike. The bike will ship with the upgraded components installed, but will not include the OEM components. Credit for the OEM components are factored into the pricing for upgrades.
