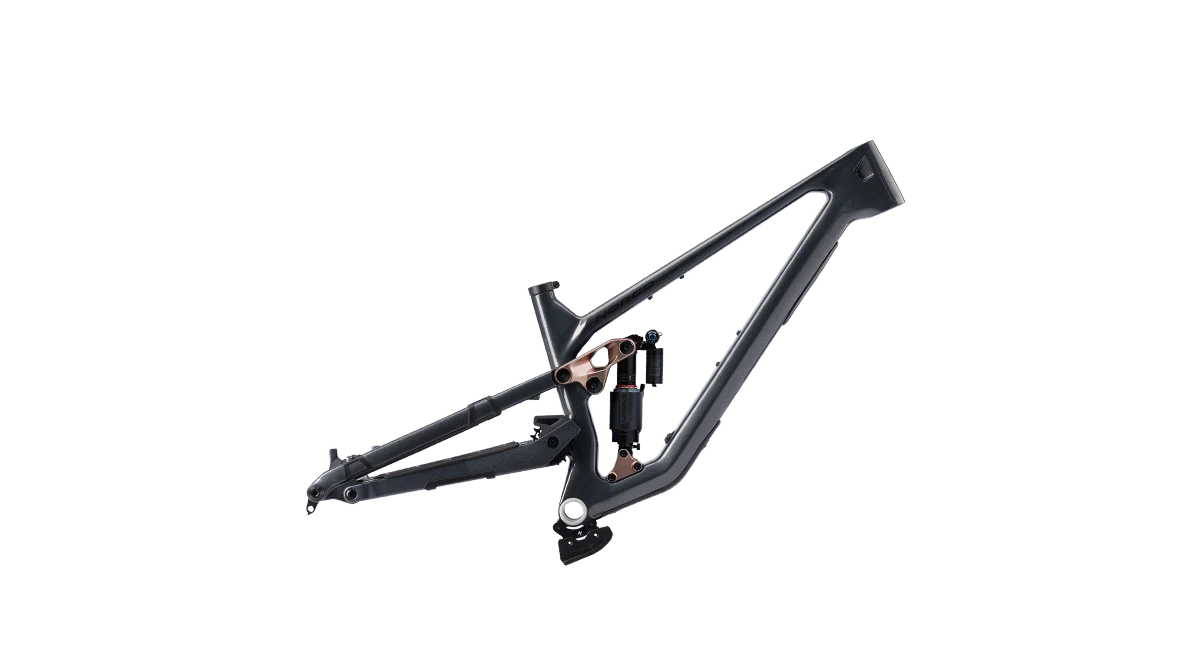

2024 Norco Optic C Frame
$0.00
$0.00
$0.00
$0.00
$0.00
Free shipping or in-store pickupOut of Stock
Out of Stock
Out of Stock
Out of Stock
Out of Stock
Specs
- Front Travel: 140mm
- Rear Travel: 125mm
- Frame Material: Carbon
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| Size | 29"/27.5" Size 1 (XS) | 29"/27.5" Size 2 (S) | 29"/27.5" Size 3 (M) | 29"/27.5" Size 4 (L) | 29"/27.5" Size 5 (XL) | 29" Size 1 (XS) | 29" Size 2 (S) | 29" Size 3 (M) | 29" Size 4 (L) | 29" Size 5 (XL) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Travel (mm front/mm rear) | 140/125 | 140/125 | 140/125 | 140/125 | 140/125 | 140/125 | 140/125 | 140/125 | 140/125 | 140/125 | |
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
| Stack | 608 | 617 | 626 | 635 | 644 | 608 | 617 | 626 | 635 | 644 | |
| Head Tube Angle | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | |
| Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | |
| Seat Tube Length | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 385 | 430 | 445 | |
| Effective Seat Tube Angle | 76.5 | 76.75 | 77 | 77.25 | 77.5 | 76.5 | 76.75 | 77 | 77.25 | 77.5 | |
| Rear Centre Length | 415 | 419 | 423 | 427 | 431 | 421 | 425 | 429 | 433 | 437 | |
| Bottom Bracket Drop | 32/11 | 32/11 | 32/11 | 32/11 | 32/11 | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | |
| Bottom Bracket Height | 346 | 346 | 346 | 346 | 346 | 346 | 346 | 346 | 346 | 346 | |
| Horizontal Top Tube | 568 | 593 | 617 | 641 | 665 | 568 | 593 | 617 | 641 | 665 | |
| Wheelbase | 1154 | 1188 | 1221 | 1254 | 1287 | 1159 | 1193 | 1226 | 1259 | 1292 | |
| Standover | 675 | 677 | 678 | 707 | 705 | 675 | 677 | 678 | 707 | 705 | |
| Head Tube Length | 100 | 110 | 120 | 130 | 140 | 100 | 110 | 120 | 130 | 140 | |
| Trail | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | |
| Recommended Seatpost Drop | 150 | 170 | 200 | 200 | 230 | 150 | 170 | 200 | 200 | 230 | |
| Maximum Post Insertion | 250 | 270 | 300 | 300 | 330 | 250 | 270 | 300 | 300 | 330 | |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
| Crank Length | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Tire Size | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" |
Detailed Specs By Build Kit
| Build | C1 | C2 | C2 MX | C Frame Kit | A Frame Kit |
|---|---|---|---|---|---|
| Frame | Optic Carbon, VPSHP, 125mm Travel, UDH Compatible | Optic Carbon, VPSHP, 125mm Travel, UDH Compatible | Optic Carbon, VPSHP, 125mm Travel, UDH Compatible | Optic Full Carbon, 125mm Travel, VPS hp, UDH, Hangerless Interface Compatible, Ride Aligned | Optic Aluminum, 125mm Travel, VPS hp, UDH, Hangerless Interface Compatible, Ride Aligned™ |
| Fork | Fox Factory 34 FLOAT GRIP2, HSC, LSC, HSR, LSR, LNT, 140mm Travel, 44mm Offset, Fender Included | RockShox Pike Select +, Charger 3 RC2, DebonAir+, 140mm Travel, 44mm Offset, Fender Included | RockShox Lyrik Select +, Charger 3 RC2, DebonAir+ 140mm Travel, 44mm Offset, Fender Included | - | - |
| Rear Shock | Fox FLOAT X Factory, 185x50mm Trunnion | Fox FLOAT X Performance Elite, 2 Pos, 185x50mm Trunnion | RockShox Vivid Select +, 185x50mm Trunnion | Rockshox Vivid 2 Select + air | Rockshox Vivid 2 Select + air |
| Rear Shifter | SRAM Pod Controller | SRAM Pod Controller | SRAM Pod Controller | - | - |
| Rear Derailleur | SRAM X0 AXS Eagle T-Type | SRAM GX Eagle AXS T-Type | SRAM GX Eagle AXS T-Type | - | - |
| Crankset | SRAM X0 Eagle T-Type, Boost, 30T AL Ring, 170mm | SRAM GX Eagle T-Type, DUB, 30T | SRAM GX Eagle T-Type, 32T, 170mm | - | - |
| Bottom Bracket | SRAM DUB BSA Threaded | SRAM DUB BSA Threaded | SRAM DUB BSA Threaded | - | - |
| Cassette | SRAM Eagle T-Type 1295, 10-52T | SRAM T-Type 1275 10-52T | SRAM T-Type 1275 10-52T | - | - |
| Chain | SRAM XO Eagle T-Type | SRAM GX Eagle T-Type | SRAM GX Eagle T-Type | - | - |
| Chain Guide | Norco Idler Guide and Lower Guide | Norco Idler Guide and Lower Guide | Norco Idler Guide and Lower Guide | - | - |
| Chain Tensioner | - | - | - | Norco Idler Guide and Lower Guide | Norco Idler Guide and Lower Guide |
| Front Brake | SRAM Level Stealth Silver, 4-Piston, Sintered Pads | SRAM Code R, 4-Piston, Sintered Pads | SRAM Code R, 4-Piston, Sintered Pads | - | - |
| Front Brake Rotor | SRAM Centerline 200mm | SRAM Centerline 200mm | SRAM Centerline 200mm | - | - |
| Rear Brake | SRAM Level Stealth Silver, 4-Piston, Sintered Pads | SRAM Code R, 4-Piston, Sintered Pads | SRAM Code R, 4-Piston, Sintered Pads | - | - |
| Rear Brake Rotor | SRAM Centerline 180mm | SRAM Centerline 180mm | SRAM Centerline 180mm | - | - |
| Brake Levers | SRAM Level Silver | SRAM Code R | SRAM Code R | - | - |
| Handlebar | Deity Skywire Carbon 800mm, 25mm Rise | Deity Ridgeline 35, 800mm, 25mm rise | Deity Ridgeline 35, 800mm, 25mm rise | - | - |
| Stem | CNC Alloy, 40mm Length, 35mm Clamp | Alloy 40mm Length, 35mm Clamp | Alloy 40mm Length, 35mm Clamp | - | - |
| Seatpost | One Up Adjustable Dropper, 34.9mm, 150mm (1), 180mm (2), 210mm (3, 4), 240mm (5) | TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5) | TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200mm (3, 4), 230mm (5) | - | - |
| Headset | FSA #57 E, Sealed Bearing | FSA #57 E, Sealed Bearing | FSA #57 E, Sealed Bearing | - | - |
| Saddle | Fizik Alpaca Terra, Wingflex | Fizik Alpaca Terra, Wingflex | Fizik Alpaca Terra, Wingflex | - | - |
| Grips | DMR DeathGrip | DMR DeathGrip | DMR DeathGrip | - | - |
| Seatpost Clamp | Norco Alloy Nutted Clamp | Norco Alloy Nutted Clamp | Norco Alloy Nutted Clamp | Norco Alloy Nutted Clamp | Norco Alloy Nutted Clamp |
| Front Hub | Industry Nine 1/1 12x110mm Boost, 6-Bolt | Race Face Trace, 15x110 Boost, 6-Bolt | Race Face Trace, 15x110mm Boost, 6-Bolt | - | |
| Rear Hub | Industry Nine 1/1, 12x148mm Boost, XD, 6-Bolt | Race Face Trace, 12x148mm Boost, XD, 6-Bolt | Race Face Trace, 12x148mm Boost, XD, 6-Bolt | - | |
| Rear Hub Skewer | - | - | - | 148mm x 12mm TA | - |
| Rims | We Are One Union Carbon | Stan's Flow S2, Black, 32H | Stan's Flow S2, 32H, 29" Front, 27.5" Rear | - | - |
| Front Tire | Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO / TR, Folding | Maxxis Minion DHF 2.5" 3C MaxxTerra / EXO / TR, Folding | Maxxis Minion DHF 2.5" 3C, MaxxTerra / EXO+ / TR, Folding | - | - |
| Rear Tire | Maxxis Dissector 2.4" WT, 3C, MaxxTerra / EXO / TR, Folding | Maxxis Dissector 2.4", 3C MaxxTerra / EXO / TR Folding | Maxxis Minion DHRII 2.4" 3C, MaxxTerra / EXO+ / TR, Folding | - | - |
| Spokes/Nipples | Sapim Race Butted Stainless | Sapim Race Butted Stainless | Sapim Sprint Butted | - | - |
| Price | $9099 | $6999 | $6999 | $3849 | $2099 |
