The 2026 Norco Sight VLT TQ (Gen 4): Full Details & Specs

Be the Pilot, Not the Passenger.

Be the pilot, not the passenger. The 2026 Norco Sight VLT TQ Gen 4 brings all the confidence and rough-terrain ability of the Sight to Norco's incredibly light all-mountain eMTB. Looks, feels and rides like a pedal bike, with a secret rocket booster.

The Sight VLT TQ features the TQ HPR60 drive unit, the smallest system in its class with the highest torque for its size. It packs 60Nm of torque, 350W of maximum power, and 200% pedal assist support, all in a 1.92kg package. The near-invisible integration keeps the Sight's kinematics unchanged, so it rides like a best-in-class analog bike, with a boost when you want it. Add the optional 160Wh Range Extender for even more trail time.

Underneath, the Sight VLT TQ shares the VPSHP high-pivot suspension as other the Sight models, tuned with i-track idler technology for smooth, efficient pedalling and stable handling as the trail gets rough. A mixed-wheel configuration and size-specific rear centre lengths and seat tube angles keep the ride balanced and consistent across all five frame sizes.

The Sight VLT TQ Gen 4 is available in three builds, C1, C2, and C3.

Shop Inventory

Norco Sight VLT Bicicletas Norco Bicicletas de montaña eléctricas Bicicletas All-Mountain

Available Colors

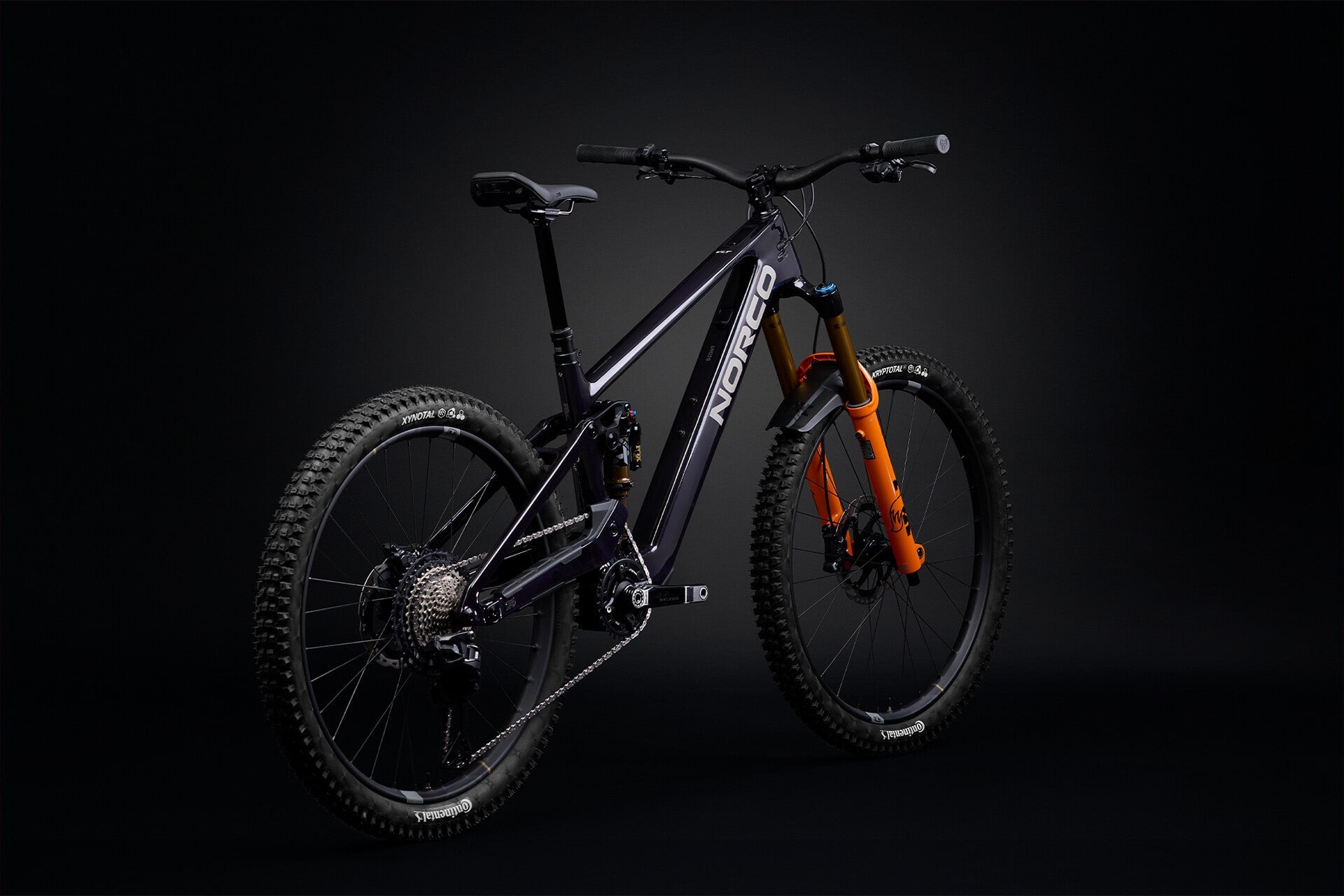

2026 Norco Sight VLT TQ in Metallic Grey

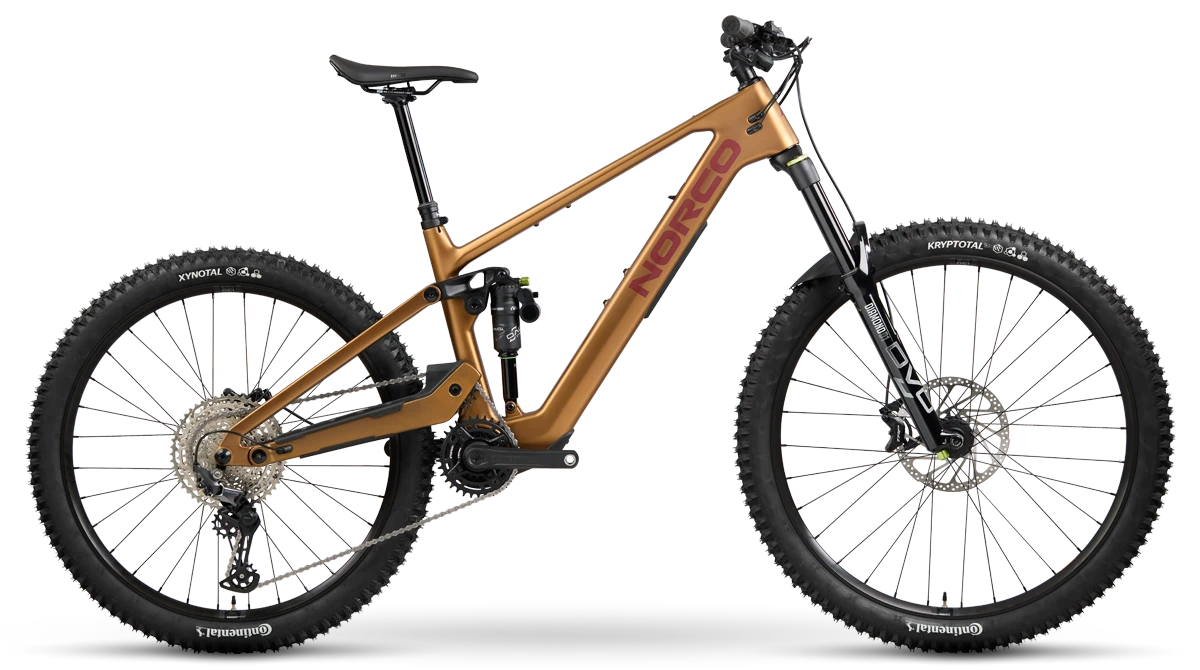

2026 Norco Sight VLT TQ in Metallic Brown

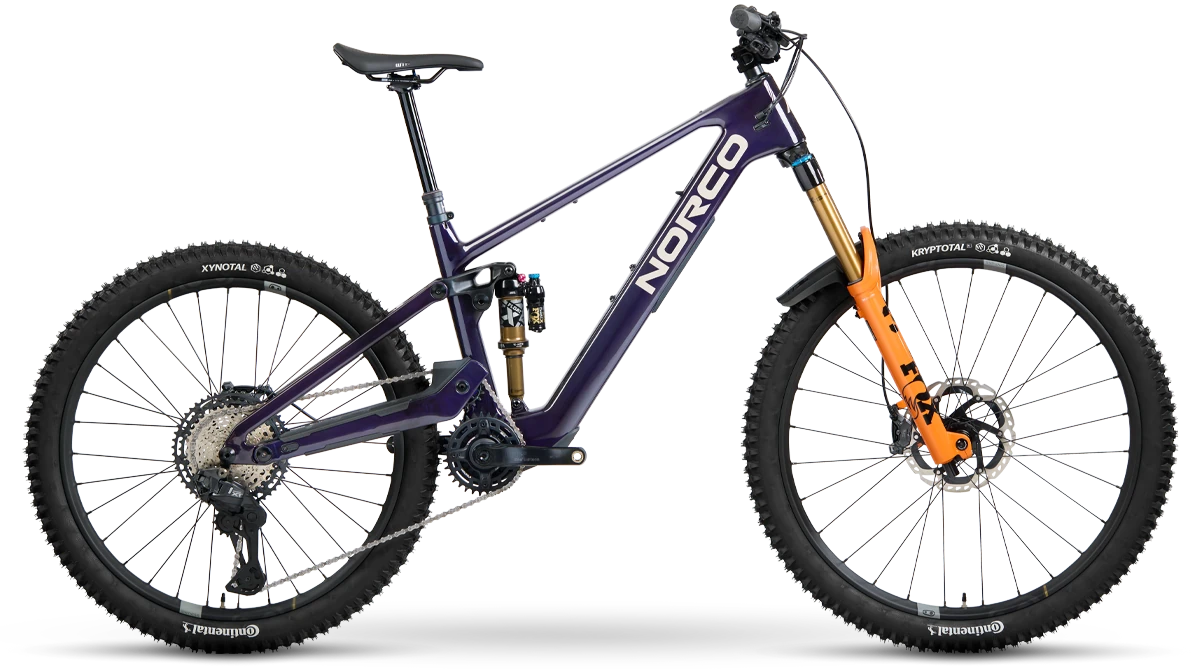

2026 Norco Sight VLT TQ in Royal Purple

Specifications

BuildC1C2C3
MSRP$10,599.00$8,999.00$6,999.00
ColourRoyal PurpleMetallic GreyMetallic Brown
FrameCarbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
ForkFox 36 Factory Grip X2, HSC/LSC/HSR/LSR, 160mm, 44mm Offset, Fender IncludedFox 36 Performance Elite GripX2, HSC/LSC/HSR/LSR, 160mm, 44mm Offset, Fender IncludedDVO Diamond 36 D1, High/Low Speed Compression | Rebound, 160mm, 44mm Offset
Rear ShockFox Factory Float X, 230x60mm Std, 2 positionFox Float X Performance, 230x60mm Std, 2 positionDVO Topaz Pro Gen 3, 230x60mm Std
Rear ShifterShimano Deore XT Di2 SW-M8250-IR, 12spShimano Deore Di2 SW-M6250-IR, 12spShimano Deore SL-M6100-R, 12sp
Rear DerailleurShimano Deore XT Di2 RD-M8250, SGS, 12spShimano Deore Di2 RD-M6250, SGS, 12spShimano Deore RD-M6100, SGS, 12sp
Cranksete*thirteen Helix Race Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)e*thirteen Helix Race Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)e*thirteen Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)
CassetteShimano Deore XT CS-M8200-12, 10-51T, 12spShimano Deore CS-M6100-12, 10-51T, 12spShimano Deore CS-M6100-12, 10-51T, 12sp
ChainShimano Deore XT CN-M8100, 12spShimano Deore CN-M6100, 12spShimano Deore CN-M6100, 12sp
Front BrakeShimano XT M8220 4-P, Metallic PadsShimano Deore M6120 4-P, Metallic PadsTRP Slate EVO, Organic Pads
Front Brake RotorShimano RT-MT905, 203mm, 6-BoltShimano SM-RT86, 203mm, 6-BoltTRP 203mm, 2.3mm Thickness, 6-Bolt
Rear BrakeShimano XT M8220 4-P, Metallic PadsShimano Deore M6120 4-P, Metallic PadsTRP Slate EVO, Organic Pads
Rear Brake RotorShimano RT-MT905, 180mm, 6-BoltShimano SM-RT86, 180mm, 6-BoltTRP RS01E, 180mm, 2.3mm Thickness, 6-Bolt
Brake LeversShimano XT BL-M8200Shimano Deore M6100TRP Slate EVO
HandlebarRaceFace Era Carbon, 760mm - 20mm Rise (S1,S2), 780mm - 20mm Rise (S3,S4), 780mm - 40mm Rise (S5)Norco 6061 DB Alloy, 800mm, 25mm RiseNorco 6061 DB Alloy, 800mm, 25mm Rise
StemNorco Alloy, 40mm Length, 35mm ClampNorco Alloy, 40mm Length, 35mm ClampNorco Alloy, 40mm Length, 35mm Clamp
SeatpostTranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) - 150mm (S2) - 170mm (S3) - 200mm (S4,S5)TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) - 150mm (S2) - 170mm (S3) - 200mm (S4,S5)TranzX YSI36KL, 31.6mm, 125mm (S1) - 150mm (S2) - 170mm (S3) - 200mm (S4,S5)
HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered (ZS44/28.6 | ZS56/40)FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered (ZS44/28.6 | ZS56/40)FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered (ZS44/28.6 | ZS56/40)
SaddleWTB Rocket Fusion Med, 142x250mmWTB Rocket Fusion Med, 142x250mmWTB Rocket Fusion Med, 142x250mm
GripsWTB Wavelength, 140mm LengthWTB Wavelength, 140mm LengthWTB Wavelength, 140mm Length
Seatpost ClampNorco Alloy Nutted Clamp, 34.9mm IDNorco Alloy Nutted Clamp, 34.9mm IDNorco Alloy Nutted Clamp, 34.9mm ID
Front HubCrank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-BoltCrank Bros. Synthesis, 15x110mm Boost, 32h, 6-BoltBear Pawls BMB-003, 15x110mm Boost, 32H, 6-Bolt
Rear HubCrank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-BoltCrank Bros. Synthesis, 12x148mm Boost, Micro Spline, 32h, 6-BoltBear Pawls BMB-007, 12x148mm Boost, Micro Spline, 32H, 6-Bolt
RimsCrank Bros. Synthesis Carbon Enduro, F-31.5mm 28h, R-29.5mm 32h, 29"-27.5" F/RCrank Bros. Synthesis Alloy Enduro, F-31.5mm 28h, R-29.5mm 32h, 29"-27.5" F/RWTB ST i30 TCS 2.0, 30mm, 32H, 29"-27.5" F/R
Front TireContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", FoldableContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", FoldableContinental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
Rear TireContinental Xynotal, Enduro, Soft, 27.5" x 2.4", FoldableContinental Xynotal, Enduro, Soft, 27.5" x 2.4", FoldableContinental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
Spokes/NipplesSapim D-Light (Front), Sapim Race (Rear)Sapim D-Light (Front), Sapim Race (Rear)Sapim Sprint DB Spokes
Drive UnitTQ HPR60, 60 NmTQ HPR60, 60 NmTQ HPR60, 60 Nm
BatteryTQ 580WhTQ 580WhTQ 580Wh
SwitchTQ Remote, V02, 22.2mmTQ Remote, V02, 22.2mmTQ Remote, V02, 22.2mm
SensorTQ Speed Sensor Rotor MagnetTQ Speed Sensor Rotor MagnetTQ Speed Sensor Rotor Magnet
Weight (Size 3)20.2 kg (44.4 lbs)20.6 kg (45.4 lbs)20.9 kg (46.1 lbs)

Características destacadas de 2026 Norco Sight VLT TQ (Gen 4)

All-Mountain Geometry, Dialed for Every Size

Size-specific rear centre lengths and seat tube angles keep rider weight balanced from Size 1 to Size 5, so the Sight VLT TQ carries the same confident, capable feel no matter which frame size you're on.

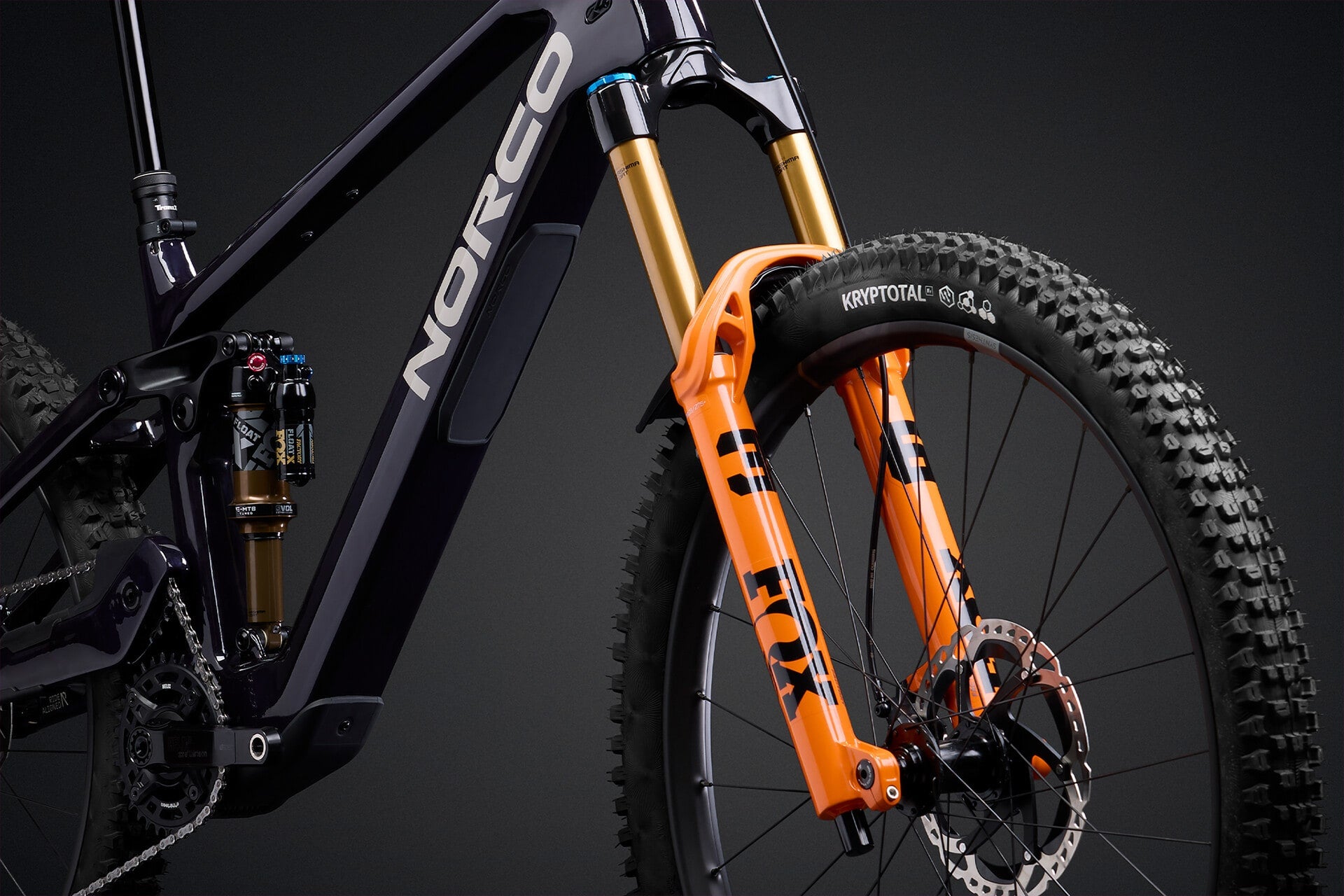

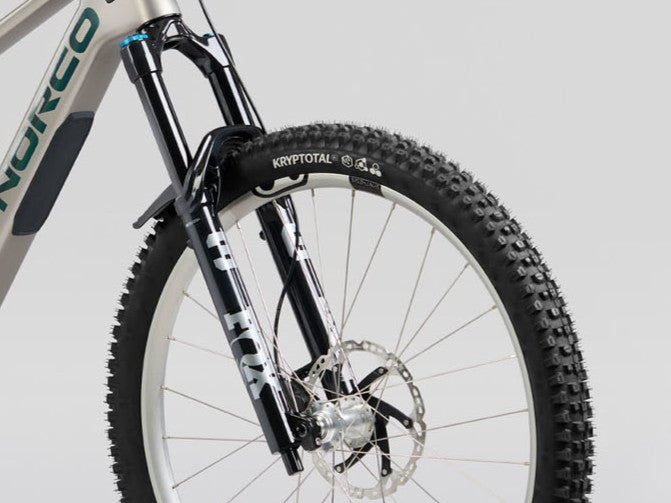

160mm of Front-End Control

A 160mm fork and slack 64° head angle keep the front end planted and confident wherever the trail points.

Power Without the Weight

Most mid-power systems ask you to compromise somewhere. The TQ HPR60 doesn't: 60Nm of torque, 350W of output, and a featherweight 1.92kg build that keeps the Sight VLT TQ's natural, pedal-bike feel intact.

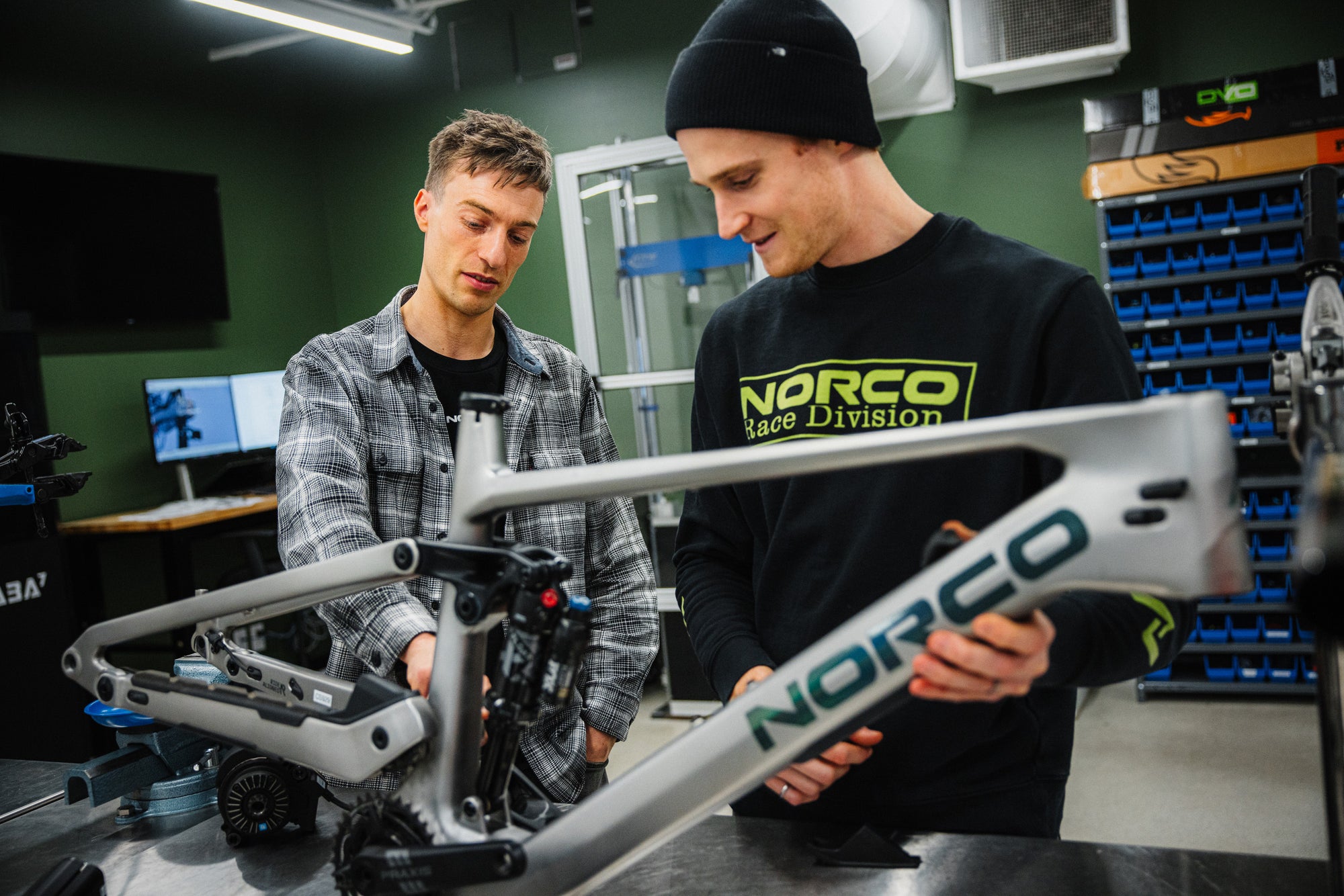

From Concept to Sight VLT TQ

Every eMTB starts as a set of decisions. Here, Norco's team evaluates a prototype frame during the design process that led to the Sight VLT TQ.

Clean Cockpit, TQ Integration

A tidy bar and stem setup with the TQ Remote V02 built right in, so you can adjust support on the fly without taking a hand off the grips.

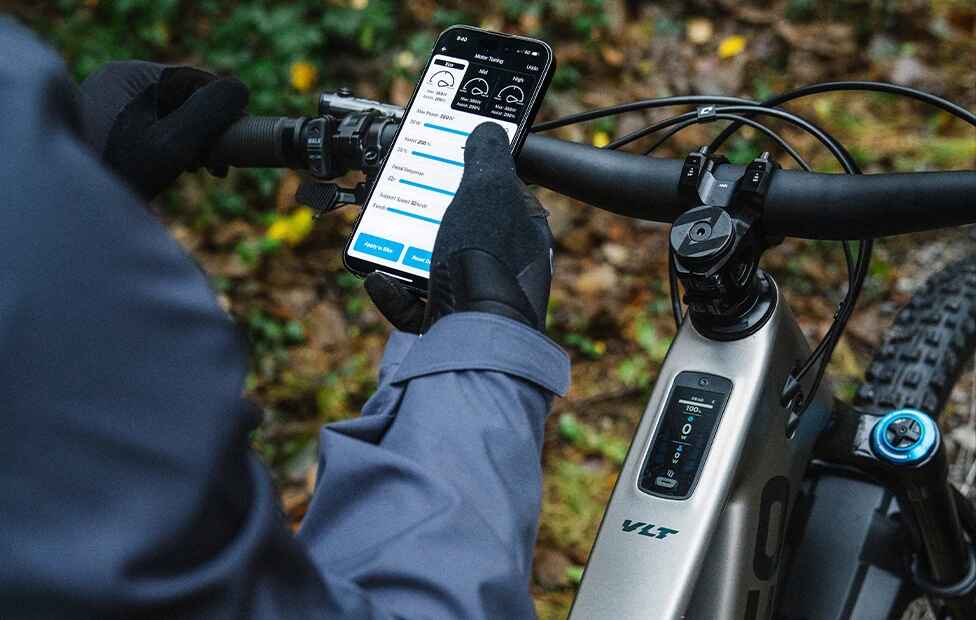

Switch motor profiles

The TQ app offers individually adjustable, personalized rider profiles with motor tuning to adjust power, support, and pedal response on the go.

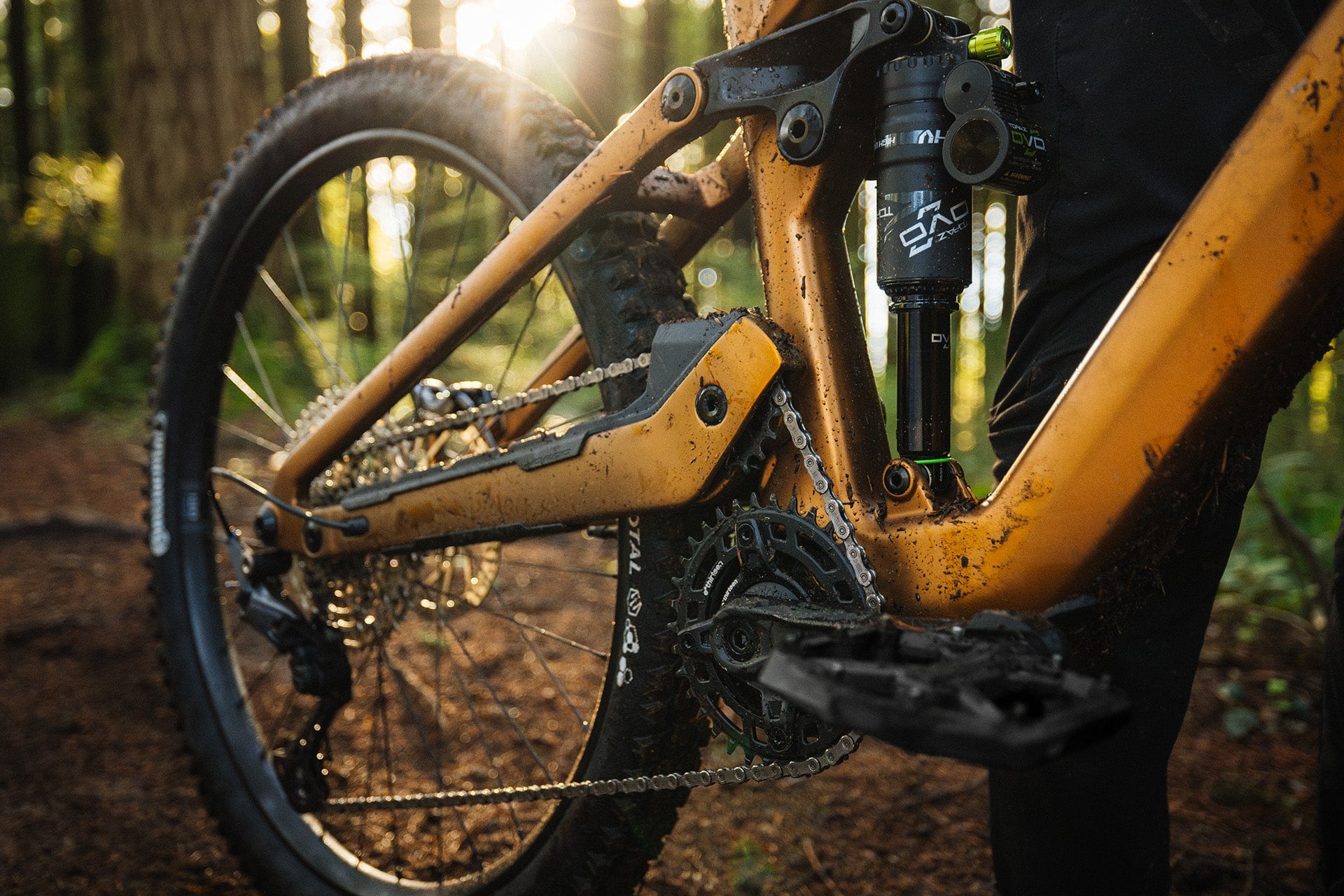

VPSHP Suspension

The Sight's VPSHP suspension delivers efficient pedaling with confident control on rough, steep trails. A rearward axle path helps maintain momentum through technical terrain, while the i-track idler reduces pedal feedback and optimizes chain growth for a stable, responsive ride.

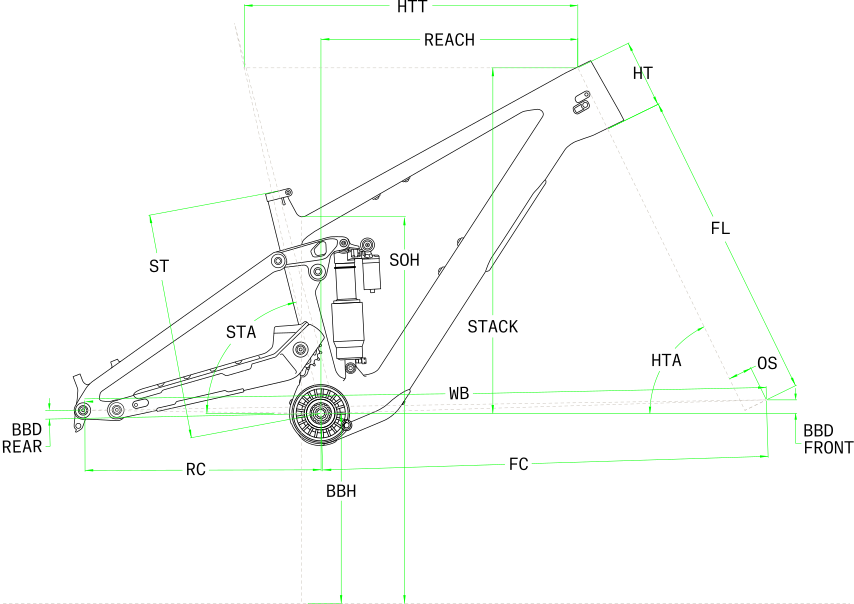

Geometry Details by Size

Size12345
Wheel Size29"/27.5"29"/27.5"29"/27.5"29"/27.5"29"/27.5"
Travel (mm Front/mm Rear)160/150160/150160/150160/150160/150
Reach422.5447.5472.5497.5522.5
Stack618627636645654
Head Tube Angle (HTA)6464646464
Fork Offset (OS)4444444444
Seat Tube Length (ST)385395415445475
Effective Seat Tube Angle (STA)7777.2577.577.7578
Rear Centre Length (RC)432432436440444
Rear Centre Length at Sag (RC)441441445449453
Bottom Bracket Drop, Front/Rear (BBDF/R)25/525/525/525/525/5
Bottom Bracket Height (BBH)349349349349349
Horizontal Top Tube (HTT)565589613637661
Wheelbase (WB)11931222125512891322
Standover (SOH)700701711714729
Head Tube Length (HT)105115125135145
Trail133133133133133
Recommended Seatpost Drop125150170200200
Maximum Post Insertion220250270300330
Stem Length4040404040
Crank Length165165165165165
Tire Size2.35" - 2.6"2.35" - 2.6"2.35" - 2.6"2.35" - 2.6"2.35" - 2.6"
Water Bottle Compatible1 x 620 mL1 x 620 mL1 x 620 mL1 x 750 mL1 x 750 mL

Size Guide

Size Rider Height (cm) Rider Height (Imperial)
1155 cm - 165 cm5'1" - 5'5"
2163 cm - 173 cm5'4" - 5'8"
3170 cm - 180 cm5'7" - 5'11"
4178 cm - 188 cm5'10" - 6'2"
5185 cm - 196 cm6'1" - 6'5"

Frequently Asked Questions

2026 Norco Sight VLT TQ (Gen 4)

Rotor de 203 mm con adaptador de freno, rotor de 180 mm sin adaptador.

S1-S3 frames fit a 620mL bottle, while S4 and S5 fit a 750mL bottle.

An FSA No.55 sealed-bearing tapered headset, 1 1/8" - 1.8" (ZS44/28.6 upper, ZS56/40 lower).

A 230x60mm standard-mount, 2-position shock across all sizes. C1 and C2 run a Fox Float X, while C3 runs a DVO Topaz Pro Gen 3.

The TQ HPR60 drive unit produces 60Nm of torque and 350W of maximum power at up to 200% support. At just 1.92kg it's the lightest, quietest, and smallest drive system in its class.

Yes. The bike ships with a 580Wh internal battery, and Norco offers a 160Wh Range Extender for practical extra range on longer rides.

This bike is covered by Norco's "No Other Way" Limited Lifetime Warranty, Norco's promise to get you back on the trail as soon as possible if something goes wrong.

This is the very first Norco Sight VLT TQ. It's called "Gen 4" due to the Sight Gen 4 frame design.
