The 2027 Orbea Wild LT: Full Details & Specs

Enduro, with maximum power

The Wild, rebuilt from the ground up. An enduro ebike that backs off at nothing. A custom-tuned Avinox motor that responds almost instantly and cranks out more power than you've ever seen.

Orbea dropped the shock mount and top tube lower and pulled the weight in around the bottom bracket. The bike sits low, feels centered, and gets out of its own way in corners. Suspension and geometry borrow straight from Rallon, Orbea's downhill race bike, and you get a choice of carbon or alloy frames across seven builds.

The geometry adjusts more than the old Wild ever did. A flip chip moves the bottom bracket 8mm and the head angle half a degree. The headset takes aftermarket angle-adjust cups. Wheel size swaps between full 29" and mullet without touching the rest of the geometry.

Round it out with the MC10-RS smart dropper, the RS-HMI controller on the bars, and a 600Wh or 800Wh battery depending on the build, and the Wild LT is set up to grind up technical climbs and disappear underneath you on the way down.

Shop Inventory

Orbea Wild Bicicletas Orbea Bicicletas de montaña eléctricas Bicicletas de enduro Bicicletas de montaña

Available Colors

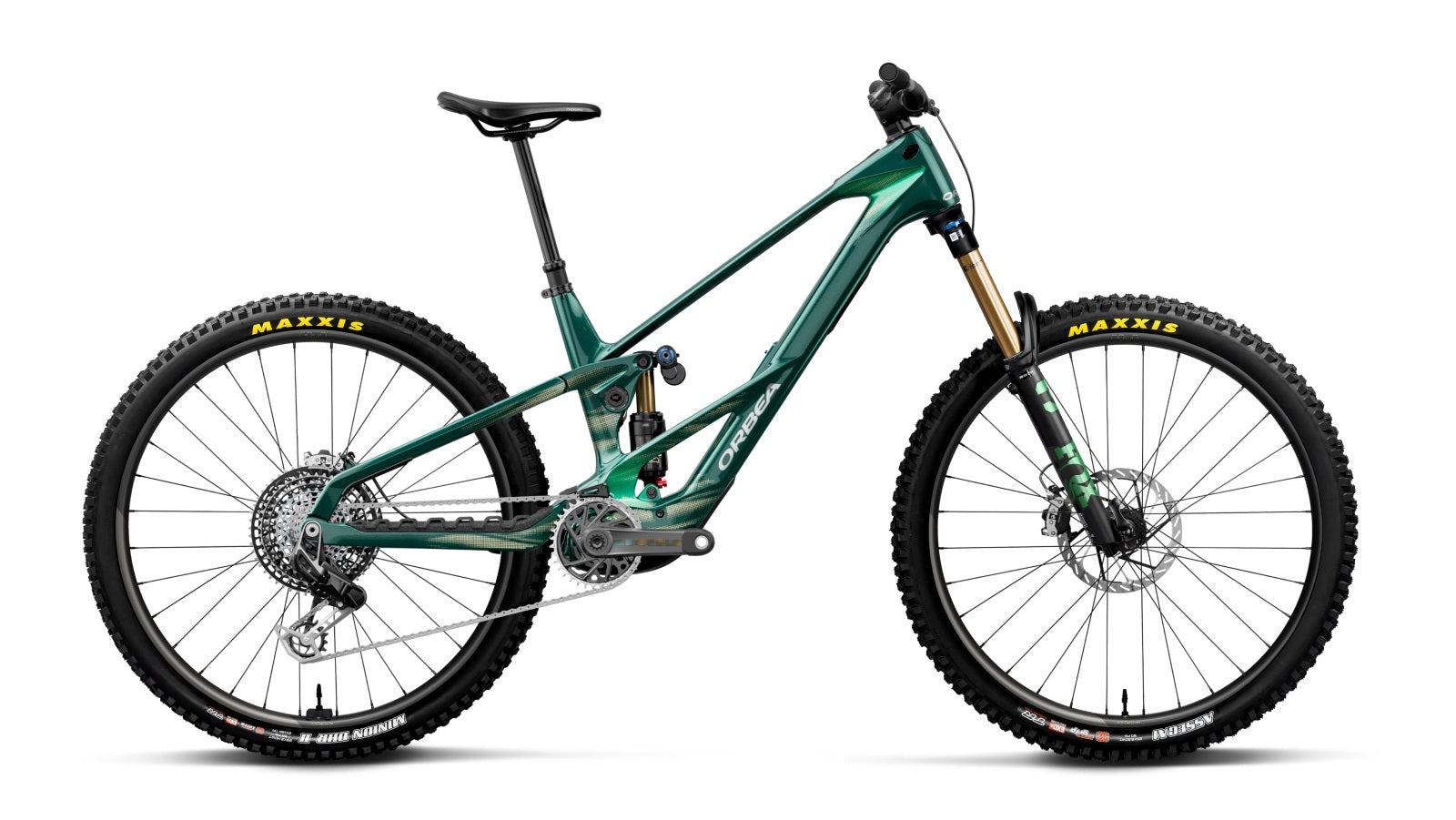

2027 Orbea Wild LT in Escape Green Carbon View + Mintalized (Gloss)

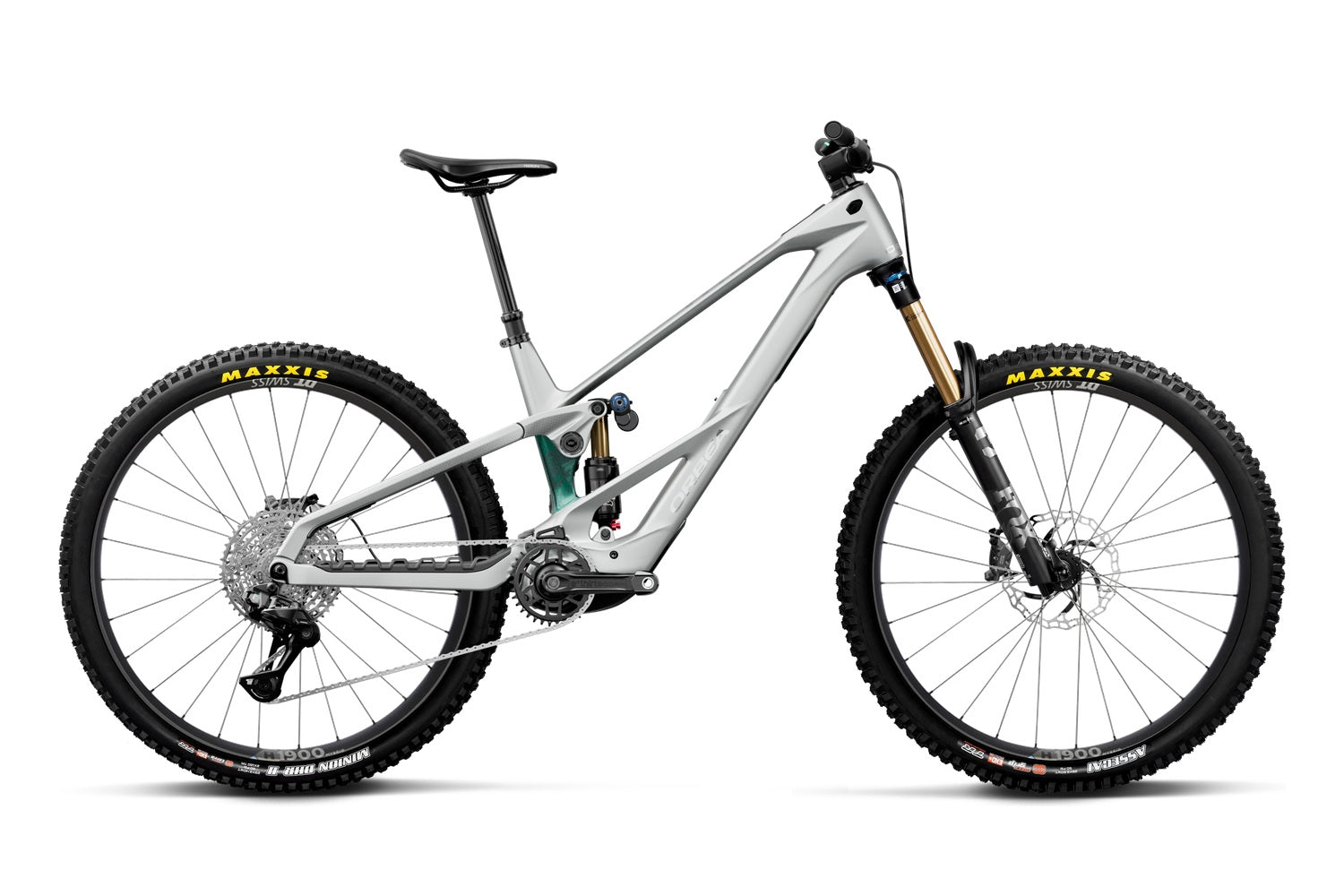

2027 Orbea Wild LT in Smooth Silver (Matt) + Escape Green Carbon View (Gloss)

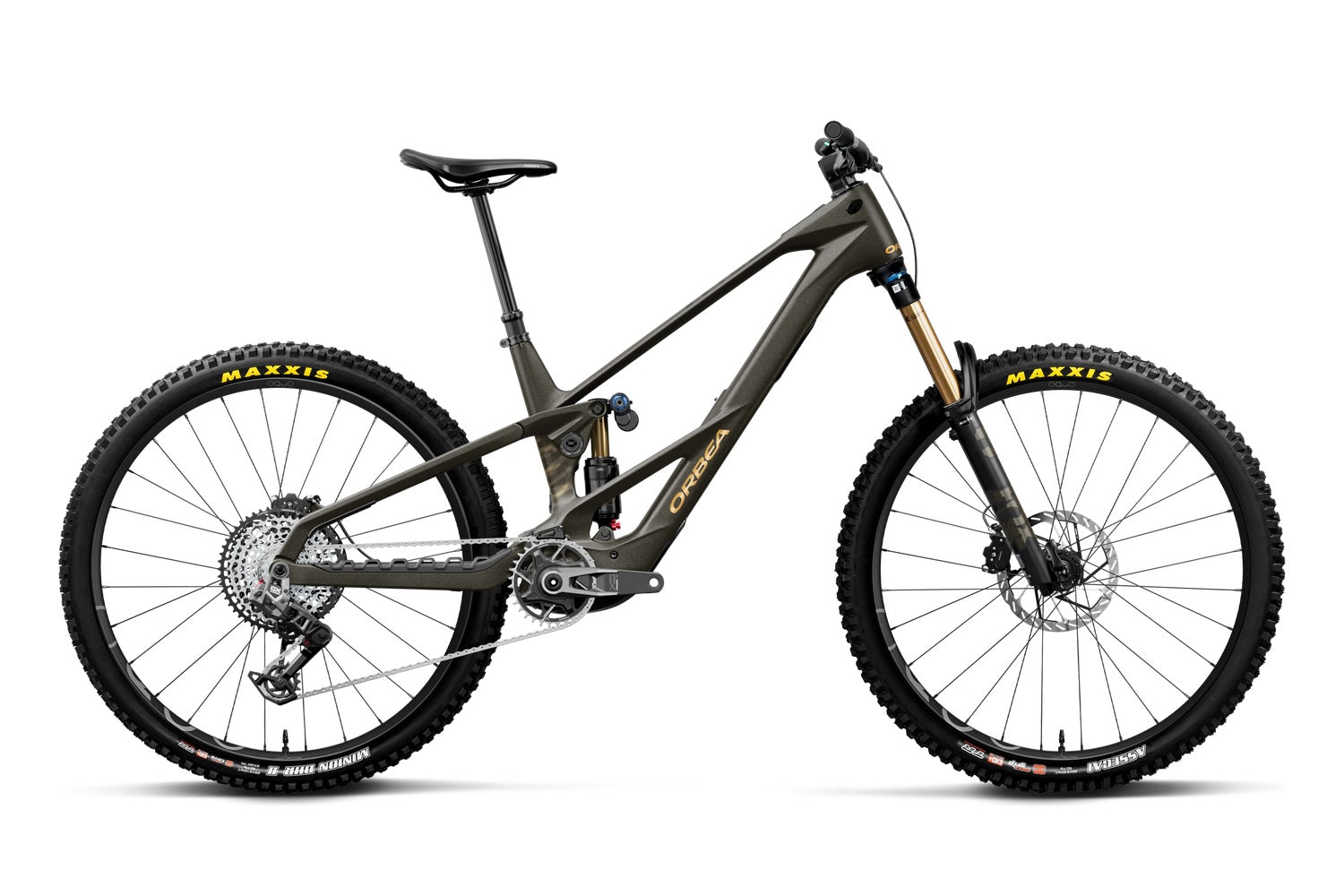

2027 Orbea Wild LT in Magic Gold Carbon View (Matt) + Titan Gold (Gloss)

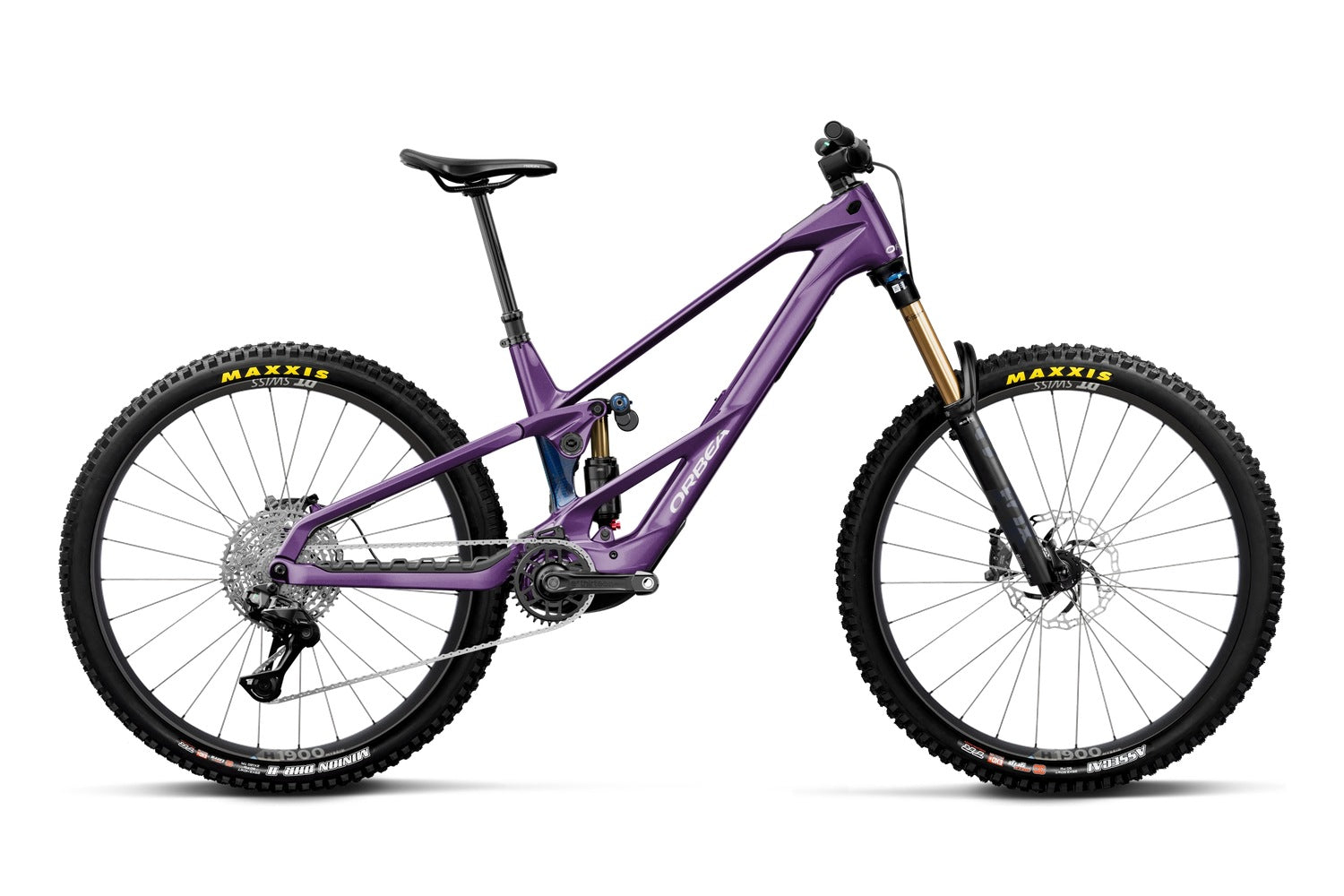

2027 Orbea Wild LT in Royal Plum + Noctiluca Carbon View (Gloss)

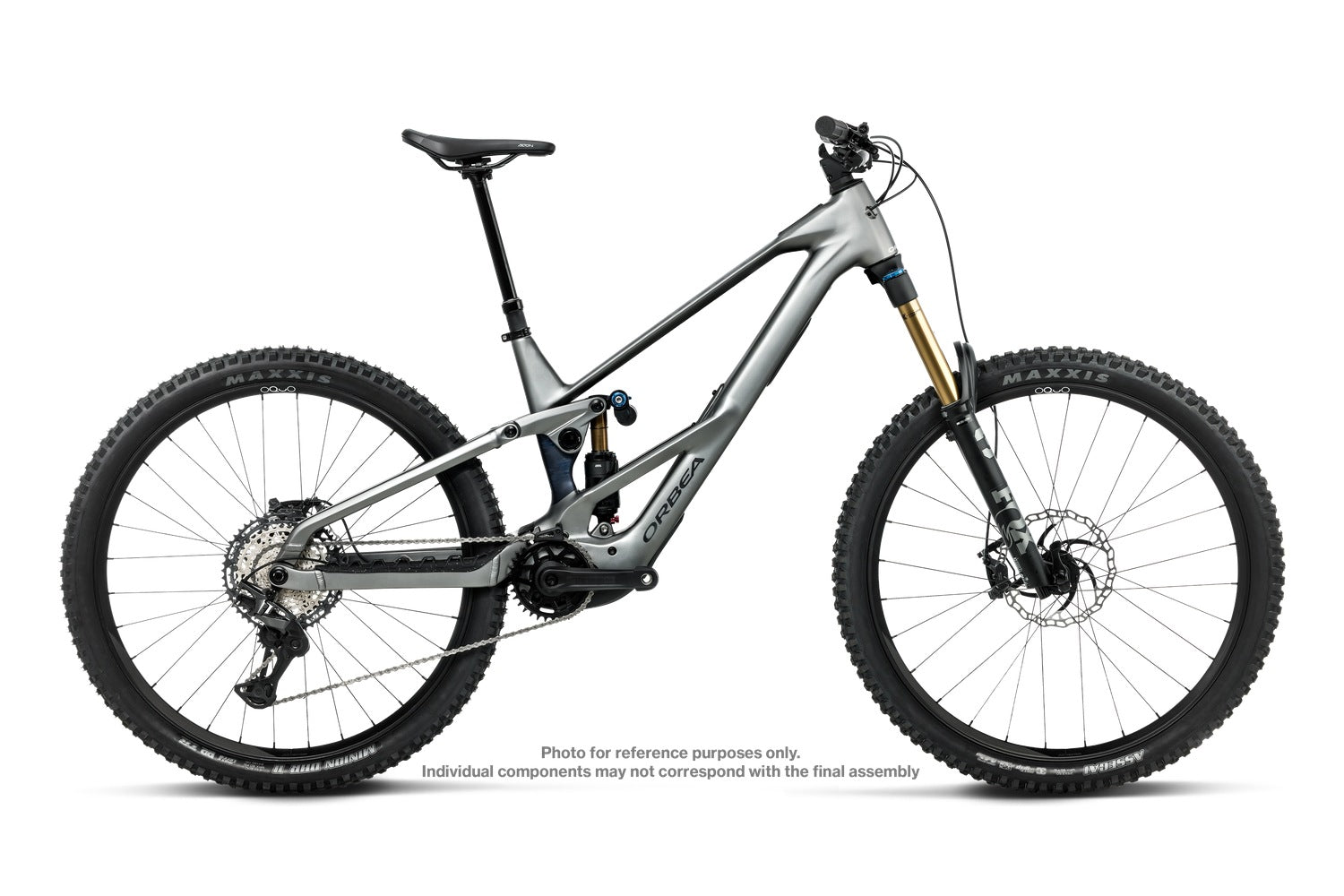

2027 Orbea Wild LT in Titan Grey + Noctiluca Carbon View (Matt)

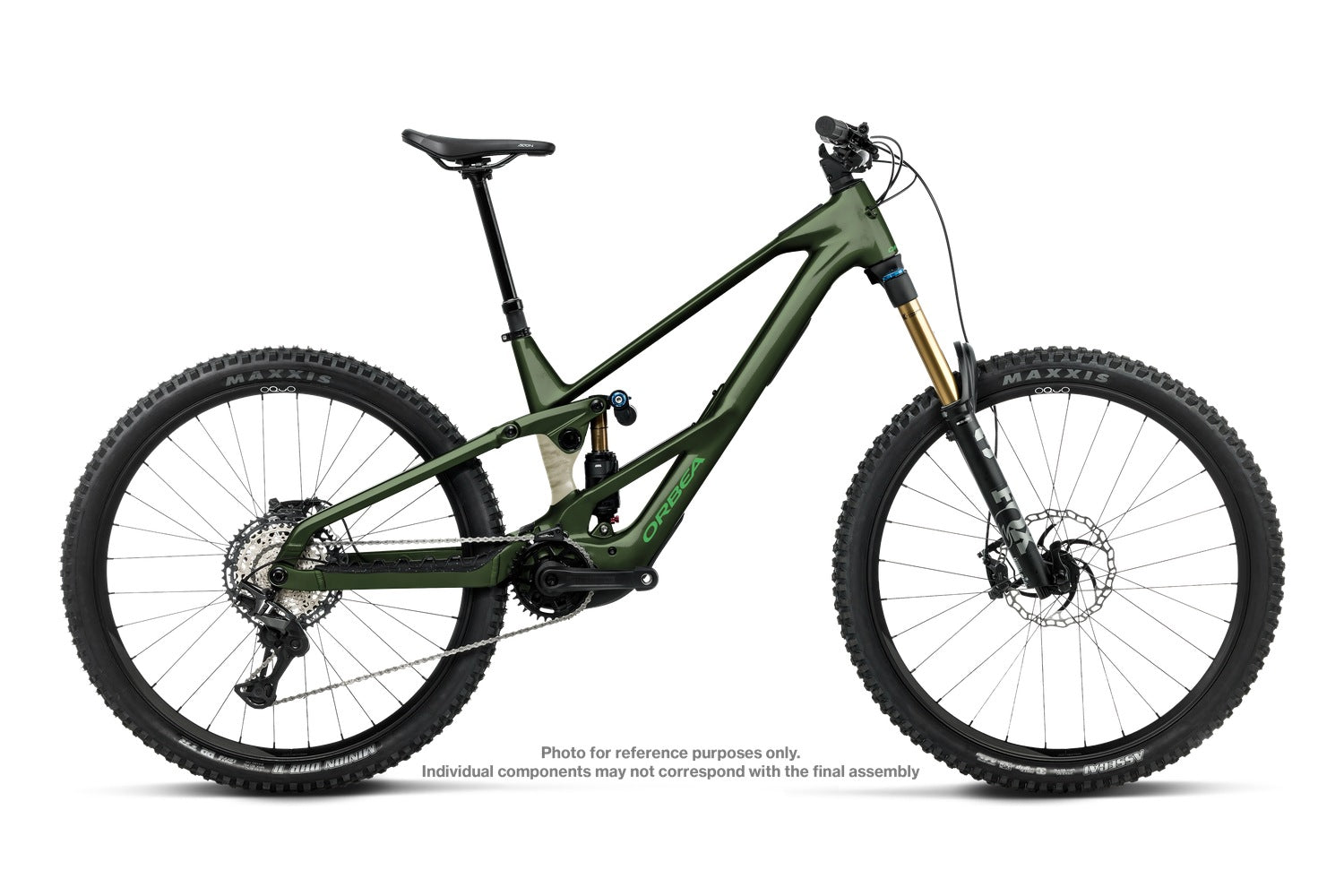

2027 Orbea Wild LT in Racing Reen + White Cream (Gloss)

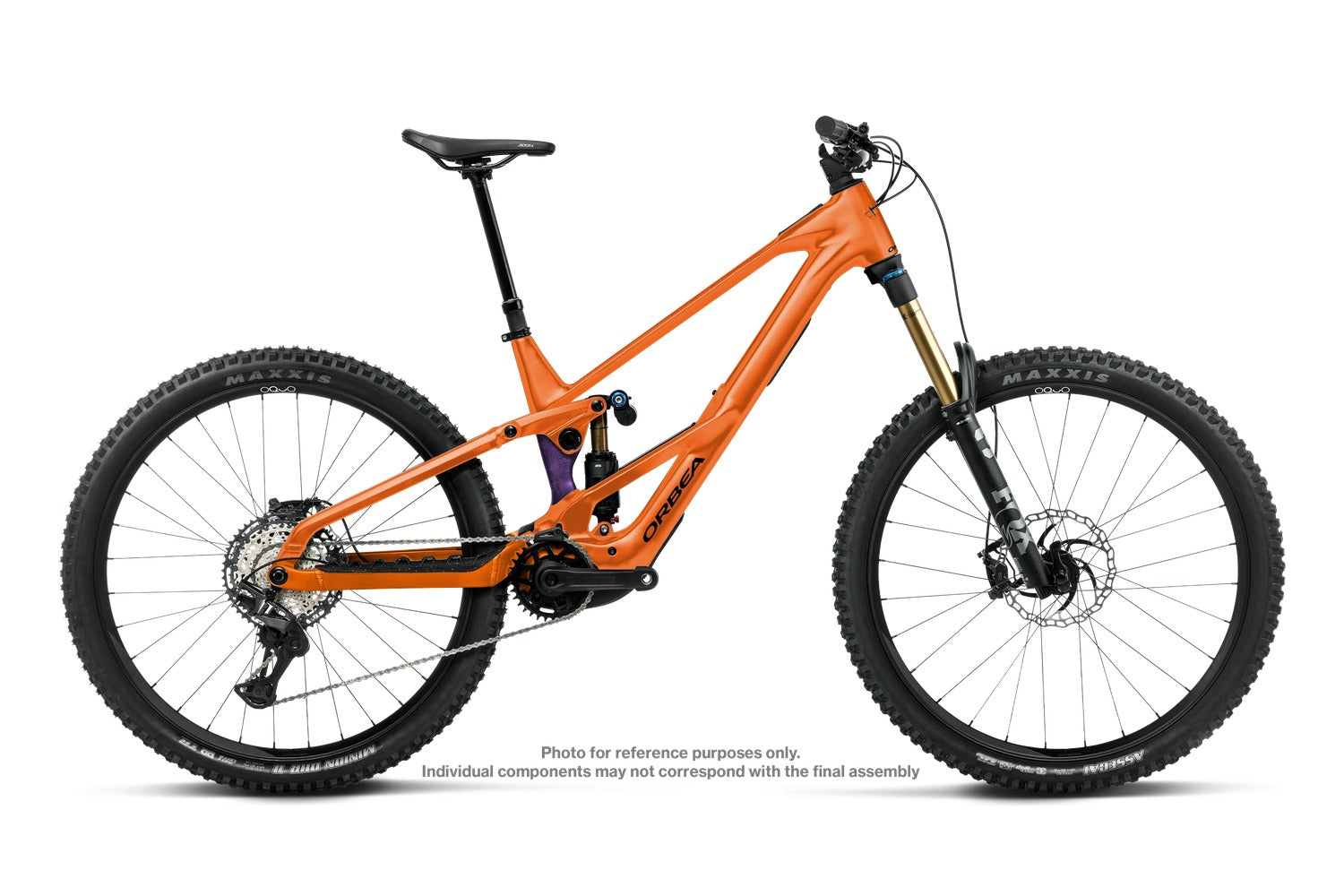

2027 Orbea Wild LT in Wild Orange + Royal Plum (Gloss)

Specifications

H20

H10

M20

H-TEAM

M10

M-TEAM RS

M-LTD RS
MSRP $6,173 $7,717 $7,717 $8,819 $9,371 $11,024 $14,883
Frame Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148 Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148
Fork RockShox ZEB Base DebonAir+ 170, E-MTB specific, 15x110 Boost Fox 38 Float Performance 170, Grip, 3-Pos, 15x110 RockShox ZEB Base DebonAir+ 170, E-MTB specific, 15x110 Boost Fox 38 Float Factory 170, Grip X2, 15x110, Kashima
Shock Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
Headset Acros ZS56
Motor Avinox M2 Avinox M2S
Battery Avinox 800Wh
Display Avinox DPC100 Avinox DP100
Charger Avinox Charger 4A
Remote Avinox BC100 Orbea System Controller Remote Orbea System Controller with eDropper Remote
Chainring e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine Sram Steel 34t
Crank e*thirteen Helix Core e*spec Sram X0 e*thirteen Helix Race Carbon e*spec
Shifters Shimano Deore M6200 I-Spec EV Shimano XT M8200 I-Spec EV Sram AXS Pod Sram AXS Pod Ultimate
Cassette Shimano CS-M6200 10-51t 12-Speed Shimano CS-M8200 10-51t 12-Speed Shimano CS-M7200 10-51t 12-Speed Sram GX-1275 Eagle 10-52t 12-Speed Sram XX-1297 Eagle 10-52t 12-Speed
Rear Derailleur Shimano Deore M7200 SGS Shadow Plus Shimano XT M8200 SGS Shadow Plus Shimano Deore M7200 SGS Shadow Plus Shimano XT M8200 SGS Shadow Plus Sram GX Eagle AXS Sram XX Eagle AXS
Chain Shimano M6100 Sram GX Eagle 12-Speed Sram XX Eagle 12-Speed
Chainguide Orbea eBike chainguide
Handlebar OC Mountain Control MC30, Rise 20, Width 800 OC Mountain Control MC20 Alu SL, Rise 35, Width 800 OC Mountain Control MC30, Rise 20, Width 800 OC Mountain Control MC20 Alu SL, Rise 35, Width 800 OC Mountain Control MC21 Alu SL, Rise 35, Width 800 OC Mountain Control MC10 Carbon, Rise 35, Width 800
Stem OC Mountain Control MC20, 0º OC Mountain Control MC11 Alu SL, 0º
Brakes Shimano MT420 Hydraulic Disc, Galfer Wave Rotors 200/200mm Shimano MT620 Hydraulic Disc, Galfer Wave Rotors 200/200mm Shimano MT420 Hydraulic Disc, Galfer Wave Rotors 200/200mm Shimano XT 8220 Hydraulic Disc, Galfer Wave Rotors 200/200mm Sram Maven Silver, 4-piston Hydraulic Disc Sram Maven Ultimate, 4-piston Hydraulic Disc
Wheels Race Face AR 30c Tubeless Ready DT Swiss H 1900 Spline 30c Race Face AR 30c Tubeless Ready Oquo Mountain Control MC32 Power Team alloy DT Swiss H 1900 Spline 30c Oquo Mountain Control MC32 Power Team alloy Oquo Mountain Control MC32LTD Power LTD carbon
Tyres Maxxis Assegai 2.50" front / Maxxis Minion 2.40" rear
Saddle Fizik Aidon 208x145mm manganese rail Fizik Terra Aidon X1 145mm
Dropper OC Mountain Control MC22, 31.6mm, Dropper (Shimano SL-MT500 I-Spec EV lever) OC Mountain Control MC10, 31.6mm, Electronic Dropper

Características destacadas de 2027 Orbea Wild LT

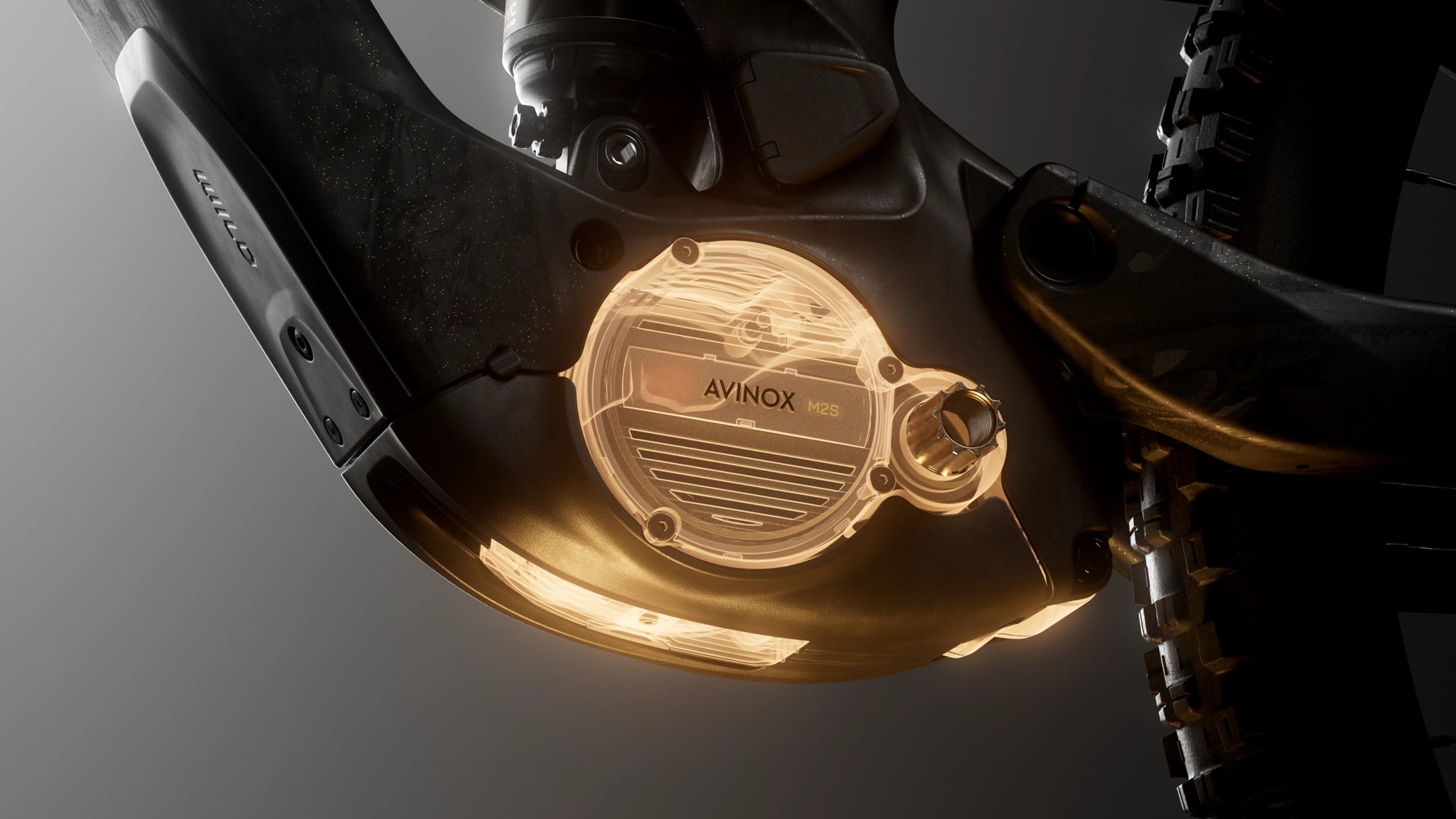

Avinox M2S Motor and RS Tune

Orbea tuned the Avinox M2S motor's firmware in-house to create the RS riding experience. The RS tune reduces the pedal input needed to trigger assistance and builds support faster, so power arrives closer to when the rider actually asks for it.

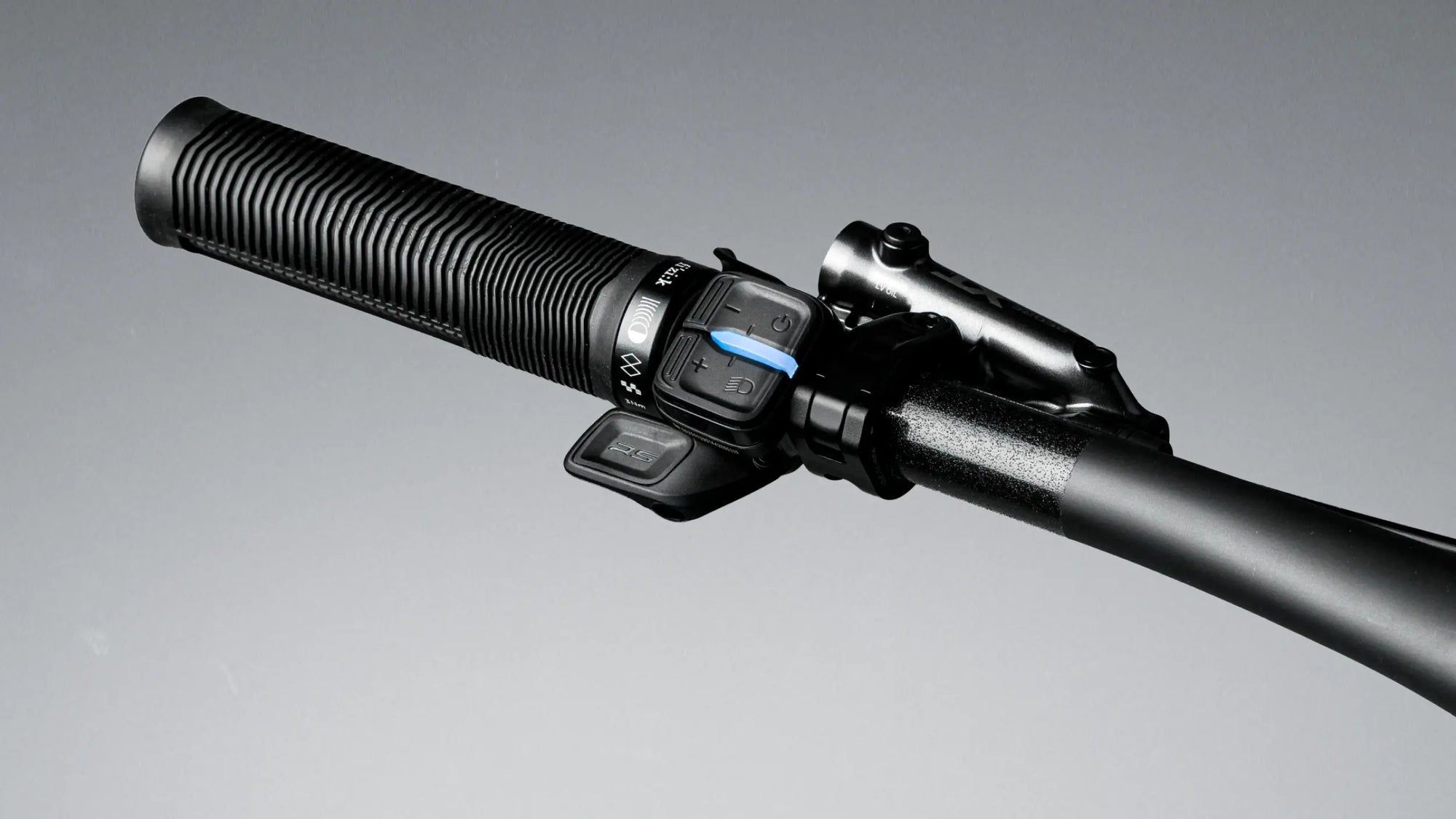

RS-HMI Controller

A single handlebar-mounted remote handles motor assistance, ride data, and the smart dropper functions. The buttons are large and textured so they're easy to use even with gloves on. A simple front LED shows the current assistance level.

A mountain biker in black clothing rides a white full-suspension electric mountain bike on a dirt trail, captured with a dynamic motion blur effect.
Assistance Modes and Superboost

Wild LT offers four tuned assistance modes, each adjustable on the fly from the RS-HMI. Superboost adds a separate, programmable burst of up to 150Nm and 1300W for short, steep sections where a rider needs an extra push.

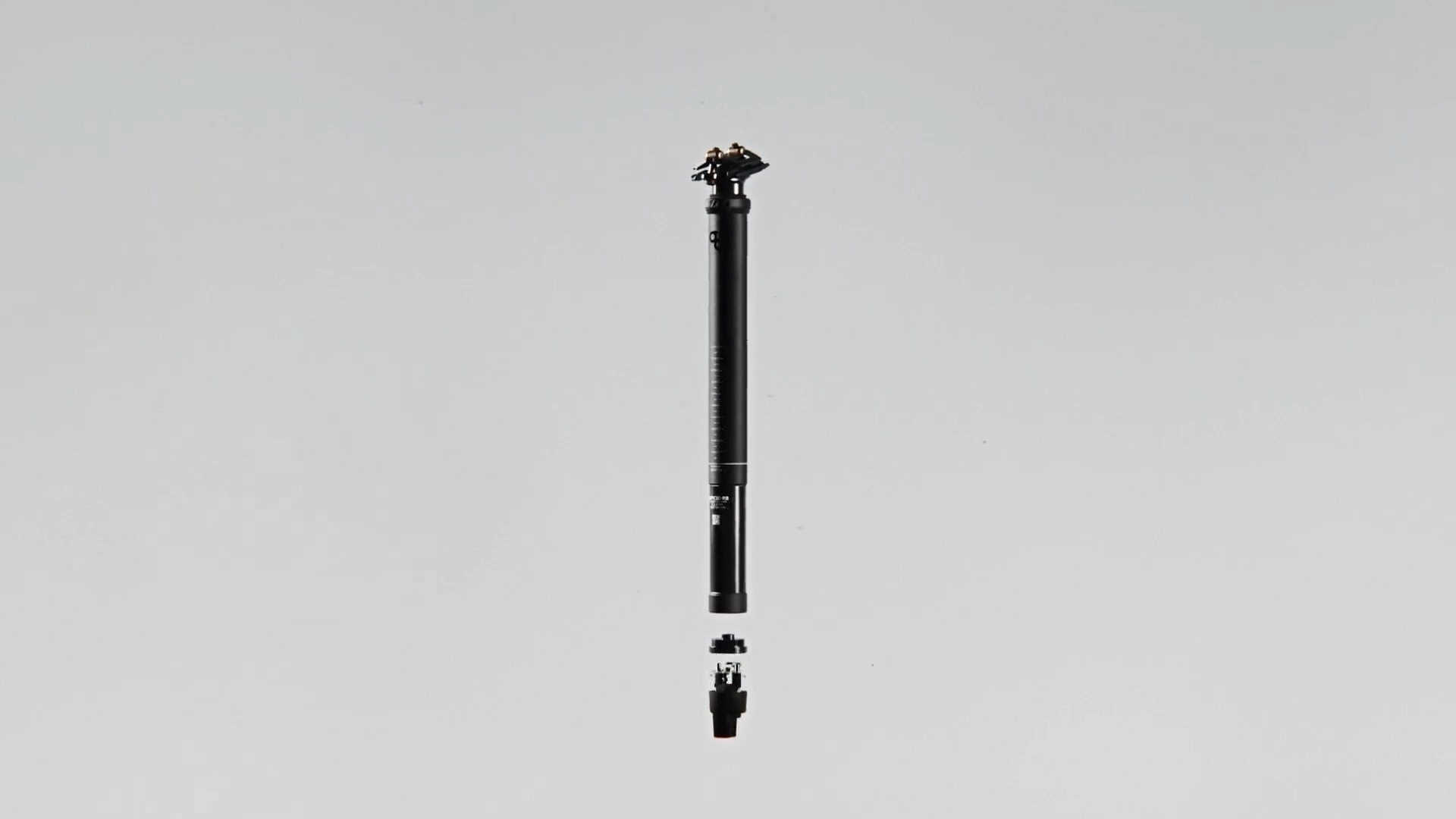

MC10-RS Smart Dropper

The MC10-RS dropper weighs 548 grams for 240mm of travel and uses a time-of-flight sensor so the system always knows where the post sits in its stroke. Programmable "climbing mode" height, or use it in Classic Mode like a regular dropper. Developed in-house by Orbea to offer a new level of control.

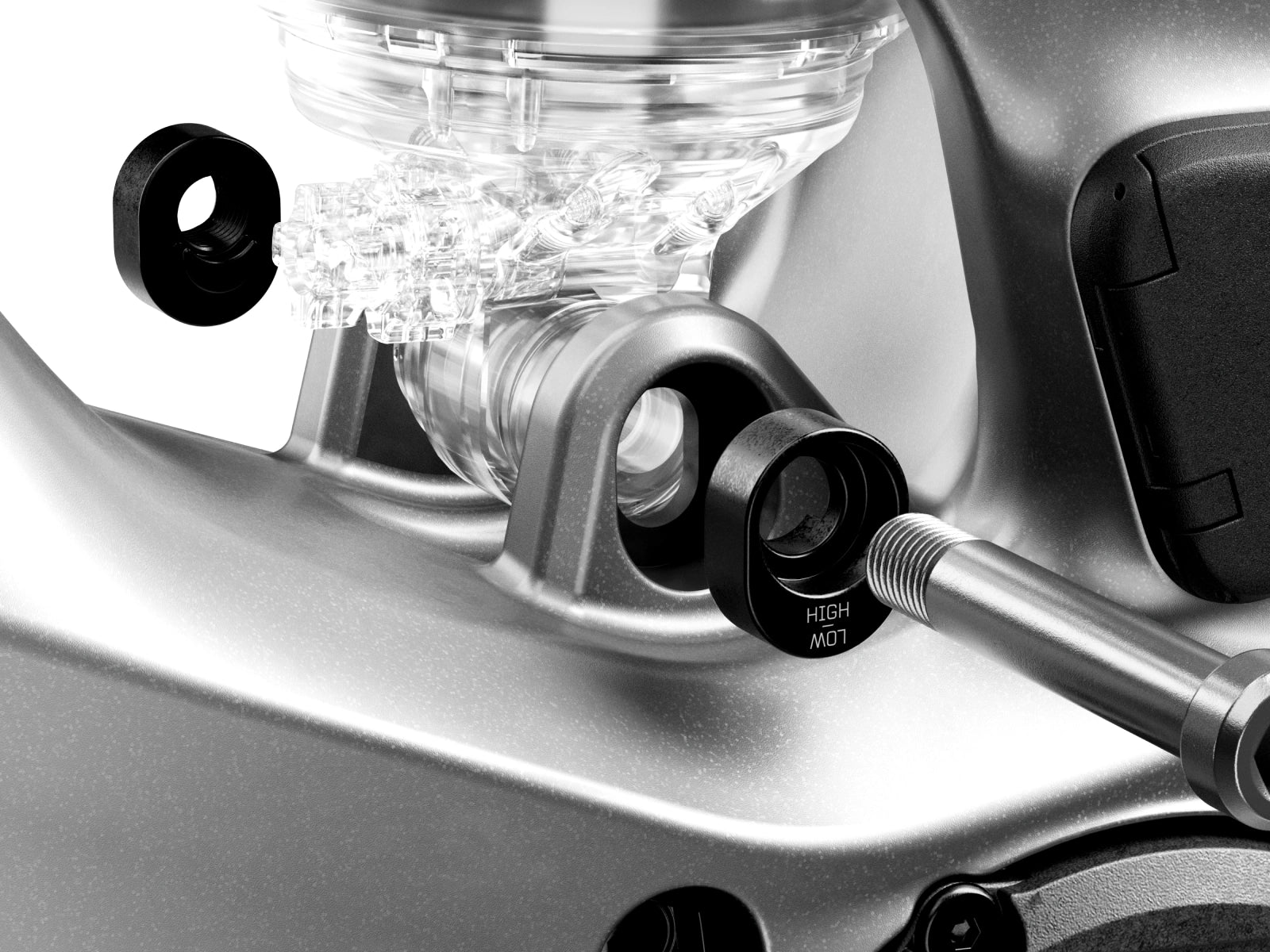

High/Low Flip Chip

A flip chip in the lower shock mount shifts the bottom bracket by 8mm and the head angle by 0.5 degrees. High steepens the bike slightly and adds ground clearance for tighter trails and climbing, while low drops the bike for stability on faster, rougher descents.

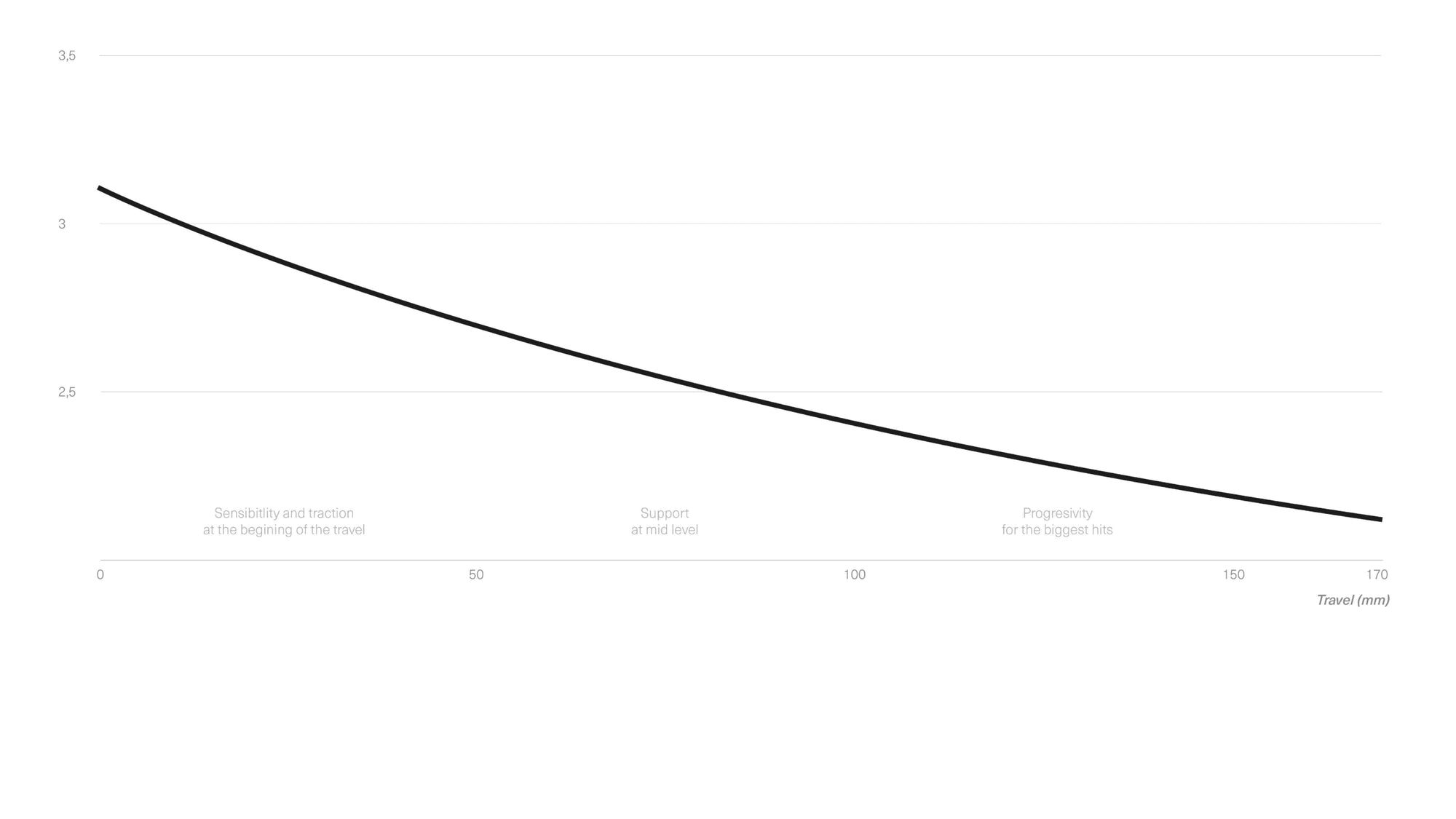

Progressive Suspension Kinematics

The Concentric Boost rear suspension carries a progressive leverage curve shared with Orbea's Rallon downhill bike. Support builds smoothly through the travel, balancing small-bump sensitivity early in the stroke with bottom-out resistance deeper in it.

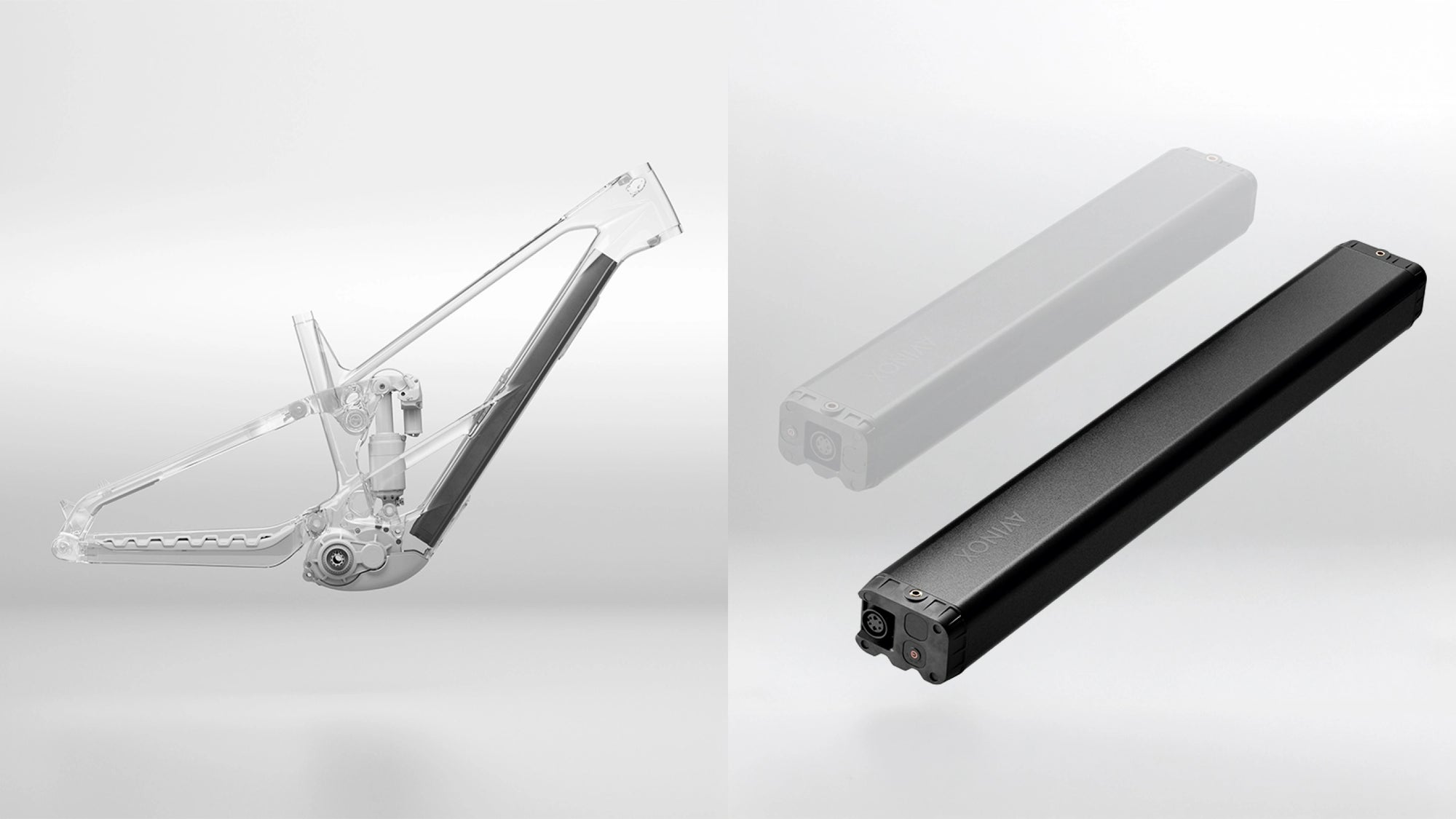

600Wh and 800Wh Battery Options

The carbon frame is available with a 800Wh battery by default. A smaller, 600Wh battery is available via custom order to shave grams (about 870 to be precise). The alloy Hydro frame ships with the 800Wh battery only.

Designed to Endure

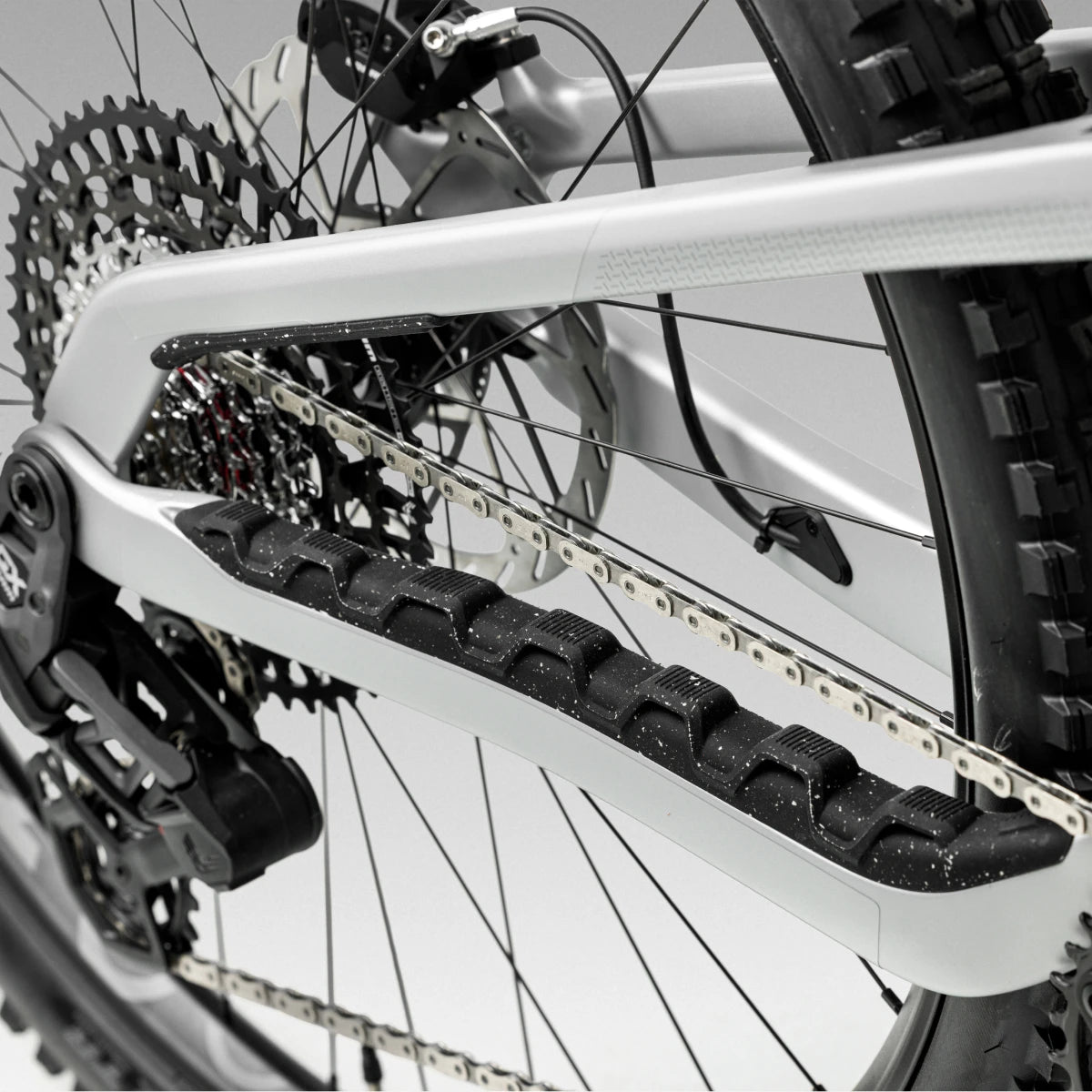

Orbea's Secure Battery System avoids large frame cutouts around the battery, which keeps weight down while adding rigidity and protecting the electronics. A soft rubber chainstay protector with hollow recesses absorbs chain slap and cuts down on noise.

Race Ready Geometry

The Wild LT's geometry comes from years of downhill testing, with massive adjustability: a bottom-bracket flip chip, an angle-adjust ZS56 headset, and dedicated linkages for full 29er or mullet setups.

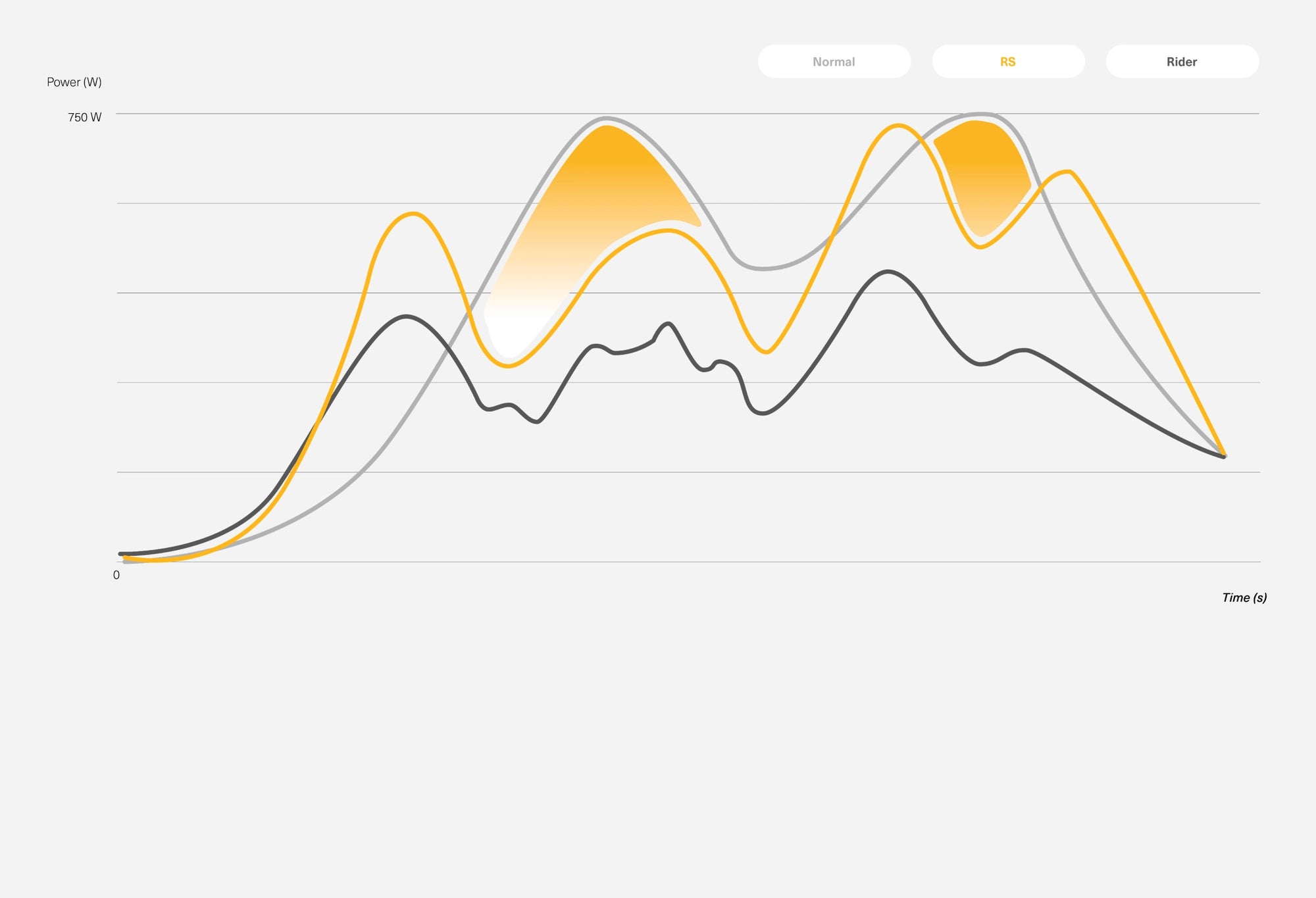

Torque and Power Output

The Avinox M2S motor with RS tune responds up to 3x faster to your pedaling force and cadence than an average ebike motor, for near-instantaneous rampup and rampdown of power and the most natural feel.

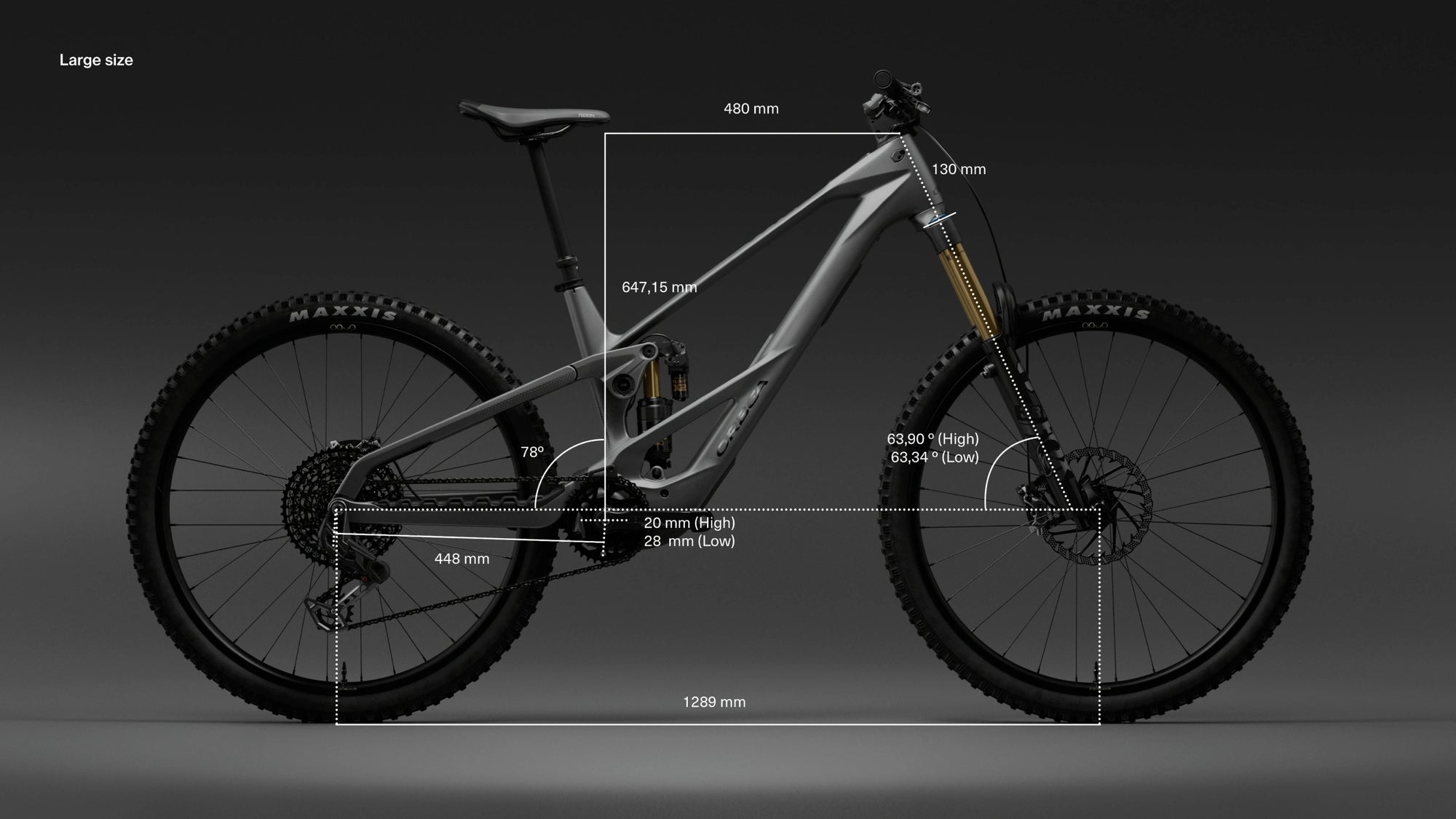

Geometry Details by Size

Size S M L XL
Seat Tube (mm) 400 405 410 420
Top Tube (mm) 563 593 623 652
Head Tube (mm) 110 120 130 140
Chainstay (mm) 448 448 448 448
BB Drop (mm) 20 20 20 20
BB Height (mm) 357 357 357 357
Wheelbase (mm) 1229 1258 1288 1317
Head Angle 63.9° 63.9° 63.9° 63.9°
Seat Angle 74° 74° 74° 74°
Reach (mm) 436 461 486 511
Stack (mm) 625 633 642 651
Figures shown are for 29" wheels, high flip-chip position, and the neutral headset setting. The flip chip adjusts BB height by 8mm and head angle by 0.5°. The angle-adjust headset and mullet setup change these numbers further.

Size Guide

Rider Height (Imperial) Rider Height (cm) Recommended Size
4'11"-5'9" 150cm - 175cm S
5'3"-6'1" 160cm - 185cm M
5'7"-6'5" 170cm - 195cm L
5'11"-6'8.5" 180cm - 205cm XL

Frequently Asked Questions

2027 Orbea Wild LT

The flip chip in the lower shock mount changes the bottom bracket height by 8mm and the head angle by 0.5 degrees. The high position adds ground clearance and steepens the geometry slightly for climbing and tighter trails. The low position drops the bike for maximum stability on aggressive, fast descents.

Yes. The frame uses a dedicated linkage for each wheel size, so you can run full 29" wheels front and rear or switch to a mullet setup with a 27.5" rear wheel without changing the geometry.

The carbon frame is available with a 600Wh or 800Wh Avinox battery through MyO. The 600Wh battery keeps weight down for a lighter ride feel, while the 800Wh battery adds about 33% more capacity and roughly 870g. The alloy Hydro frame ships exclusively with the 800Wh battery.

The Avinox M2S motor with Orbea's RS tune delivers up to 130Nm of torque and 750W of peak power. Superboost mode unlocks up to 150Nm and 1300W for a programmable period, activated instantly through the RS HMI controller.

An Acros ZS56 headset. It supports aftermarket reach and angle-adjust cups for fine-tuning fit and geometry.

A 205x65mm trunnion-mount shock with a custom Orbea tune. The M-LTD RS, M-TEAM RS, M10, and H-TEAM builds use a Fox Float X2 Factory shock, while the M20, H10, and H20 builds use a Fox Float X Performance shock.

The carbon frame uses Orbea's OMR carbon layup with a carbon link that trims weight higher up in the frame. The alloy Hydro frame shares the same geometry, suspension kinematics, and Avinox drive system in a hydroformed aluminum frame, at a lower price and with a modest weight increase.

170mm is standard across the range, matched to 170mm of rear travel. An optional 180mm fork is available for the most aggressive riding.

The LT is designed around a 55 mm Boost chainline. Use that measurement when choosing a crank, chainring, or drivetrain replacement.

The largest compatible round chainring size is 34t.

El tamaño de la batería es mayor de lo que normalmente se permite en un avión. Consulte las regulaciones locales antes de volar.

There is no specific limit. The post must stay above the minimum insert mark, must not bottom out inside the frame, and must not drop the saddle low enough for the rear tire to hit it. If you are wondering if a specific post is compatible, contact us for assistance.

Aún puedes pedalear sin batería ni motor. Si la pérdida de energía no se debe a una batería agotada, comuníquese con el servicio de atención al cliente.
