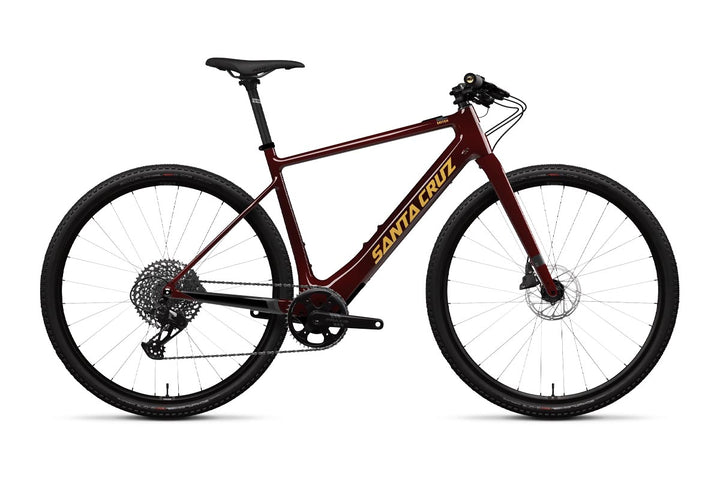

Santa Cruz Skitch 1 CC Apex Flat Bar 2025
Cuadro SRAM Apex + CC
Lifetime Warranty
Cómpralo con
Santa Cruz Skitch 1 CC Apex Flat Bar 2025
Key Features
- Wheel Size: 700c
- Frame Material: Carbon
Specs
- Horquilla de carbono
- SRAM Apex Eagle, desviador trasero de 12 velocidades
- SRAM NX Eagle, cambio de 12 velocidades
- Juego de bielas Praxis eTor AL, 107BCD
- SRAM XG1275 Eagle, 12 velocidades, cassette 10-50 dientes
- SRAM SX Eagle, cadena de 12 velocidades
- Frenos SRAM S-300
- Avid Centerline, Centerlock, rotor delantero de 160 mm
- Avid Centerline, Centerlock, rotor trasero de 160 mm
- Manillar RaceFace Ride
- RaceFace Ride, potencia de 80 mm
- Auriculares IS 41/IS52
- RaceFace Ride, tija de sillín de 27,2
- Sillín WTB Silverado Medium, CroMo
- Llanta delantera WTB ASYM i25 28h 700c
- DT Swiss 370, 12x100, Centerlock, buje delantero de 28 radios
- Neumático delantero Schwalbe G-One Overland Evo, 700x50c, ADDIX SpeedGrip
- Llanta trasera WTB ASYM i25 28h 700c
- DT Swiss 370, 12x148, XD, Centerlock, buje trasero de 28 radios
- Neumático trasero Schwalbe G-One Overland Evo, 700x50c, ADDIX SpeedGrip
- Batería integrada Fazua de 430 Wh
- Unidad motriz Fazua Ride 60
Learn More About the Santa Cruz Skitch 1 CC Apex Flat Bar 2025
La Santa Cruz Skitch 1 Apex Flat Bar 2025 en carbono CC se mueve con fluidez entre recorridos urbanos rápidos y senderos de grava accidentados. El cuadro 100% de carbono, fabricado con el carbono CC de la más alta calidad de Santa Cruz, y la horquilla delantera de carbono mantienen la estabilidad y absorben las vibraciones. Este cuadro superligero es también duradero y resistente, con una agradable sensación de conducción.
Energía y batería
Un motor Fazua Ride 60 integrado en el cuadro ofrece un impulso natural sin sentirse abrumador ni pesado. Ofrece una asistencia suave y natural que te hace sentir como un superhéroe sin abrumar la fluidez del ciclismo de montaña. Subir cuestas empinadas se siente menos como un sufrimiento agotador y más como un desafío alcanzable que te mantendrá a tope.
La batería de 430 Wh se esconde dentro del cuadro y te permite rodar durante toda la distancia sin añadir volumen innecesario.
Transmisión y frenos
Cambiar de marcha es muy sencillo gracias a la transmisión SRAM Apex Eagle de 12 velocidades. Disfruta de una amplia gama de marchas que facilita subir cuestas y mantener la velocidad en llano. Los fiables frenos SRAM S-300, junto con discos de 160 mm, proporcionan una potencia de frenado sólida dondequiera que montes.
Comodidad y control
El manillar plano es cómodo y te da control sin tener que agacharte para competir. Los componentes RaceFace Ride controlan la dirección y el asiento. Están diseñados para que tus manos y cuerpo se sientan cómodos en salidas largas.
Ruedas y neumáticos
La bicicleta rueda sobre llantas WTB ASYM i25 con bujes DT Swiss 370 de gran suavidad. Neumáticos Schwalbe G-One Overland Evo envuelven las ruedas. Esta combinación la hace robusta y a la vez rápida. El agarre y la eficiencia se equilibran para una conducción segura en superficies mixtas.
En resumen, la Skitch 1 CC Apex Flat Bar es una bicicleta eléctrica de gravel con características prácticas que se adaptan a cualquier terreno. Ya sea que te desplaces por la ciudad o por el campo, está lista para que te muevas rápido y te sientas bien.
Product Identifiers
- Barcode: 192219444406
Product Identifiers
- Barcode: 192219444628
Product Identifiers
- Barcode: 192219444840
Product Identifiers
- Barcode: 192219445069
Product Identifiers
- Barcode: 192219445281
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Reach | 390 | 405 | 420 | 435 | 450 |
| Stack | 563 | 579 | 596 | 610 | 630 |
| Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
| Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| Front Center | 624 | 646 | 668 | 689 | 711 |
| BB Height | 279 | 281 | 281 | 283 | 283 |
| BB Drop | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1047 | 1070 | 1092 | 1112 | 1135 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Head Tube Length | 105 | 125 | 145 | 160 | 180 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
Detailed Specs By Build Kit
| Kit | Apex | Barra plana Apex | GX AXS | Barra plana GX AXS |
|---|---|---|---|---|
| Precio | $6299 | $5999 | $7299 | $7299 |
| Material | Carbono CC | Carbono CC | Carbono CC | Carbono CC |
| Tamaño de rueda | 700c | 700c | 700c | 700c |
| Horquilla | Carbono | Carbono | Carbono | Carbono |
| Desviador trasero | SRAM Apex Eagle, 12 velocidades | SRAM Apex Eagle, 12 velocidades | SRAM GX Eagle AXS T-Type, 12 velocidades | SRAM GX Eagle AXS Tipo T, 12 velocidades |
| Palanca de cambio derecha | SRAM Apex | SRAM NX Eagle, 12 velocidades | SRAM Rival AXS | Puente SRAM AXS Pod |
| Casete | SRAM XG1275 Eagle, 12 velocidades, 10-50 dientes | SRAM XG1275 Eagle, 12 velocidades, 10-50 dientes | SRAM GX Eagle T -Tipo, 10-52t | SRAM GX Eagle Tipo T, 10-52t |
| Cadena | SRAM SX Eagle, 12 velocidades | SRAM SX Eagle, 12 velocidades | SRAM GX Eagle T-Type, 12 velocidades | SRAM GX Eagle tipo T, 12 velocidades |
| Auriculares | Auriculares integrados Cane Creek 40 IS | Auriculares integrados Cane Creek 40 IS | Auriculares integrados Cane Creek 40 IS | Auricular integrado Cane Creek 40 IS |
| Neumático trasero | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip |
| Neumático delantero | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip | Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip |
| Buje delantero | DT Swiss 370, 12x100, bloqueo central, 28 h | DT Swiss 370, 12x100, bloqueo central, 28 h | DT Swiss 370 , 12x100, bloqueo central, 28h | DT Swiss 370, 12x100, bloqueo central, 28h |
| Llanta delantera | WTB EZR i23p 700c | WTB EZR i23p 700c | Easton ARC Offset 25 700c | Easton Arco compensado 25 700c |
| Buje trasero | DT Swiss 370, 12x148, XD, Centerlock, 28 h | DT Swiss 370, 12x148, XD, Centerlock, 28 h | DT Swiss 370, 12x148, XD, bloqueo central, 28h | DT Swiss 370, 12x148, XD, bloqueo central, 28h |
| Llanta trasera | WTB EZR i23p 700c | WTB EZR i23p 700c | Easton ARC Offset 25 700c | Easton Arco compensado 25 700c |
| Rotor delantero | Avid Centerline, Centerlock, 160 mm | Avid Centerline, Centerlock, 160 mm | SRAM Paceline 160 mm, Centerlock | SRAM Paceline 160 mm, bloqueo central |
| Rotor trasero | Avid Centerline, Centerlock, 160 mm | Avid Centerline, Centerlock, 160 mm | SRAM Paceline 160 mm, Centerlock | SRAM Paceline 160 mm, bloqueo central |
| Frenos | SRAM Apex | SRAM S-300 | SRAM Rival AXS | SRAM Nivel Plata Stealth 2- Pistón |
| Platos | Praxis eTor AL | Praxis eTor AL | Praxis eTor AL | Praxis eTor AL |
| Manillares | Zipp Service Course 70 XPLR AL Bar | RaceFace Ride | Zipp Service Course 70 XPLR AL Bar | Barra plana SRAM Atmos, 31,8x760 |
| Potencia | Potencia Zipp Service Course, 70 mm | RaceFace Ride, 80 mm | Potencia Zipp Service Course, 70 mm | Potencia SRAM Atmos, 80mm |
| Sillín | WTB Silverado Medium, CroMo | WTB Silverado Medium, CroMo | WTB Silverado Medium, CroMo | WTB Silverado Mediano, CroMo |
| Tija de sillín | Zipp Service Course, 27,2 | RaceFace Ride, 27,2 | Easton EC70, 27,2, desplazamiento cero, 350 mm | Tija telescópica OneUp V2, 27.2 |
| Puños | Cinta de manillar Velo | Puños ESI Chunky | Cinta de manillar Velo | Puños ESI Chunky |
| Batería | Batería integrada Fazua 430 Wh | Batería integrada Fazua 430 Wh | Batería integrada Fazua 430 Wh | Batería integrada Fazua 430 Wh |
| Unidad motriz | Fazua Ride60 | Fazua Ride60 | Fazua Ride60 | Fazua Ride60 |
| Cargador de Batería | Cargador Fazua | Cargador Fazua | Cargador Fazua | Cargador Fazua |
