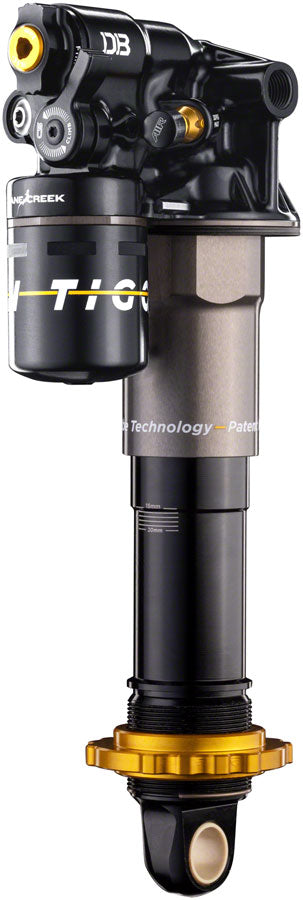

Cane Creek Tigon Rear Shock - 185 x 52.5mm Trunnion
$899.99
Free shipping on orders $50 and upLearn More About This Product
Cane Creek Tigon Rear Shock - 185 x 52.5mm Trunnion. The Tigon rear shock utilizes Cane Creeks DB Twin Tube design that combines the sensitivity of a coil shock with the tunable support of an air spring – to fuel your most creative and playful riding yet. Tigon tracks the ground and grips like a coil shock but thanks to RAMP Tube Technology it also offers the mid-stroke and bottom out support that is often required from an air shock. Both of these benefits are now delivered in an entirely new layout that better withstands side-loading and buckling forces that can harm traditional coil shocks. Want a shock that provides sensitivity and grip? Tigon delivers.RAMP Tube Technology allows riders to add 20-35% more progression than typical coil shocks (30psi max)
Using a basic shock pump riders can now tune the support of their coil shock by adding pressure to the RAMP Tube. This added air chamber increases the progression of the shock and gives all the mid-stroke and bottom out support that you may want
Significantly increased strength due to the bracing provided by RAMP Tube
Main coil spring allows Tigon to offer incredible grip and ground-tracking sensitivity
Coil sensitivity with air support and DB Twin Tube damping technology
Available adjustments include: RAMP Tube independent high and low-speed compression low-speed rebound 2 position Climb Switch
Compatible with VALT Coil springs sold separately
- TECH SPECS
| Stroke (mm) | 52.5 |
| Lockout Switch | Climb Switch |
| Metric | Yes |
| Weight | 210 |
| Eyelet Diameter (mm) | Trunnion |
| Eyelet Diameter (mm) | 12.7 |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| External Adjustments | Coil Preload |
| Positive Spring | Coil |
| Eye to eye length (mm) | 185 |
