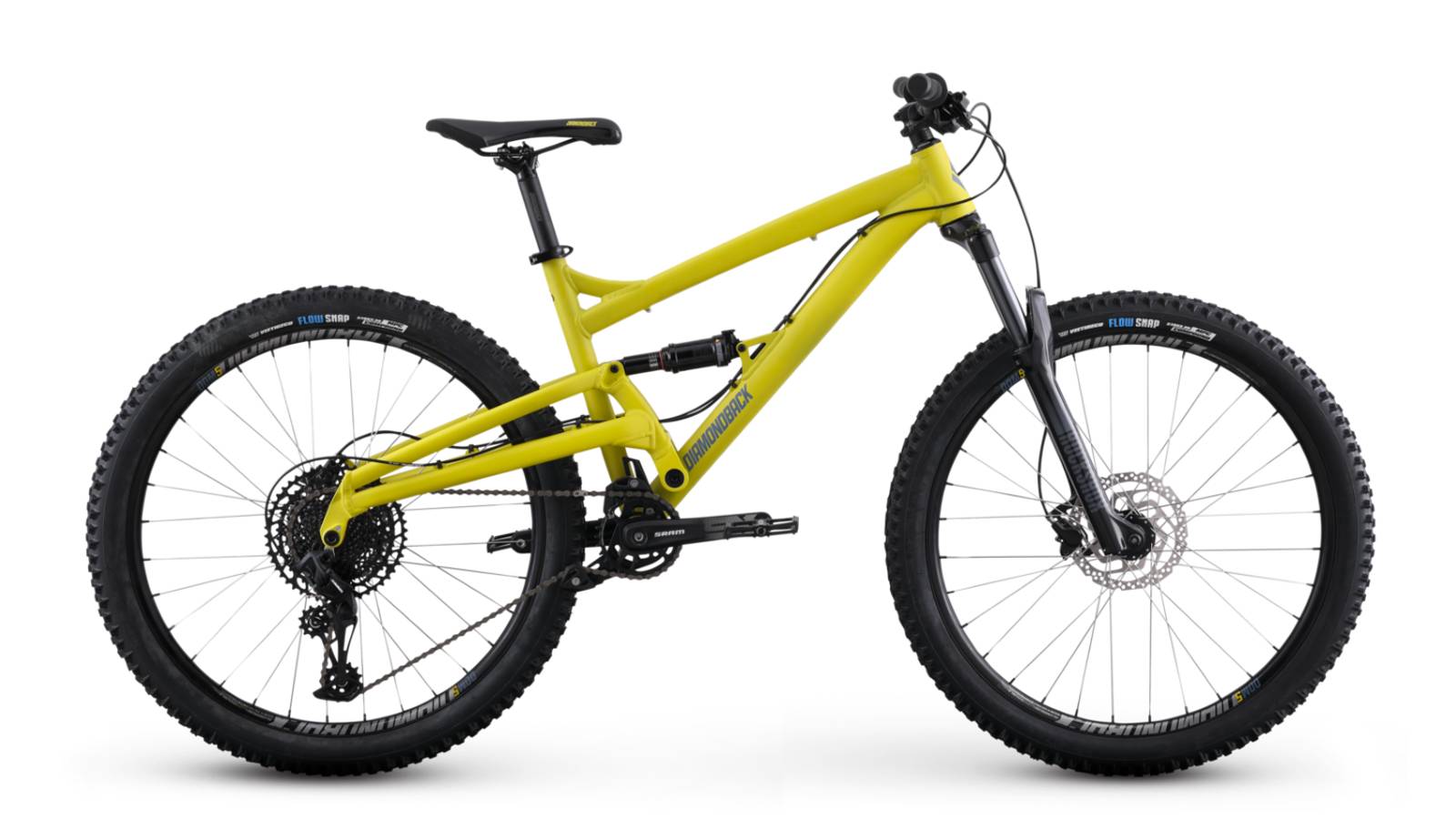

The 2022 Diamondback Atroz 3: Full Details & Specs

Check out the table below for the full specs on the 2022 Diamondback Atroz 3 full-suspension mountain bike.

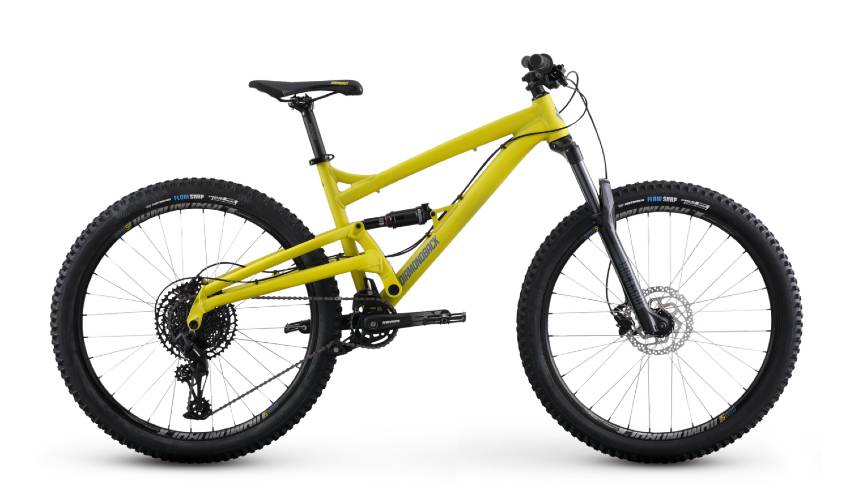

Available Colors

Specifications Specifications

FRAME	Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Seat Tube Routed for Internal Dropper Post, Aggressive Geometry, 142x12mm Rear Axle w/ Replaceable Hanger
REAR SHOCK	RockShox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm
FORK	RockShox Recon RL, Solo Air, 130mm Travel, 32mm Stanchions, 15mm Thru-Axle, 1.5" Tapered Steerer Tube, w/ Rebound and Lock Out Adjust
HEADSET	FSA NO.57, Sealed Cartridge for Tapered Headtube
CRANKS	Race Face Æffect C" w/ Steel 30T "Narrow Wide"
BOTTOM BRACKET	Race Face Outboard Bearing
REAR DERAILLEUR	SRAM SX EAGLE, 12 Speed
SHIFTER	SRAM SX 12 Speed X-Actuation Trigger
COGSET	SRAM PG1210, 12 Speed, 11-50T
CHAIN	KMC X12, 12 Speed
FRONT HUB	Formula Hub, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
REAR HUB	Formula Hub, 32h Aluminum 142x12mm Thru-axle, 4 Sealed Cartridge Bearings, Cassette, w/ CNC Disc Mount
SPOKES	14g Stainless Steel
RIMS	32H, DDM-5, 27.5 Doublewall
TIRES	VEE Rubber, Mission, 27.5x2.3
BRAKE LEVERS	Shimano MT200 Hydraulic
PEDALS	DB4L Aluminum Platform
HANDLEBAR	Race Face Chester, 780mm Wide, 35 Bar Bore
GRIPS	New DB "Flanged" Lock-on, 135mm Silcone
STEM	Race Face Chester, 40mm Reach, 35 Bar Bore
SEAT	DB Sync'r Saddle
SEATPOST	Aluminum Micro Adjust, 30.9mm
BRAKES	Shimano MT200 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors
EXTRAS	Tool Kit

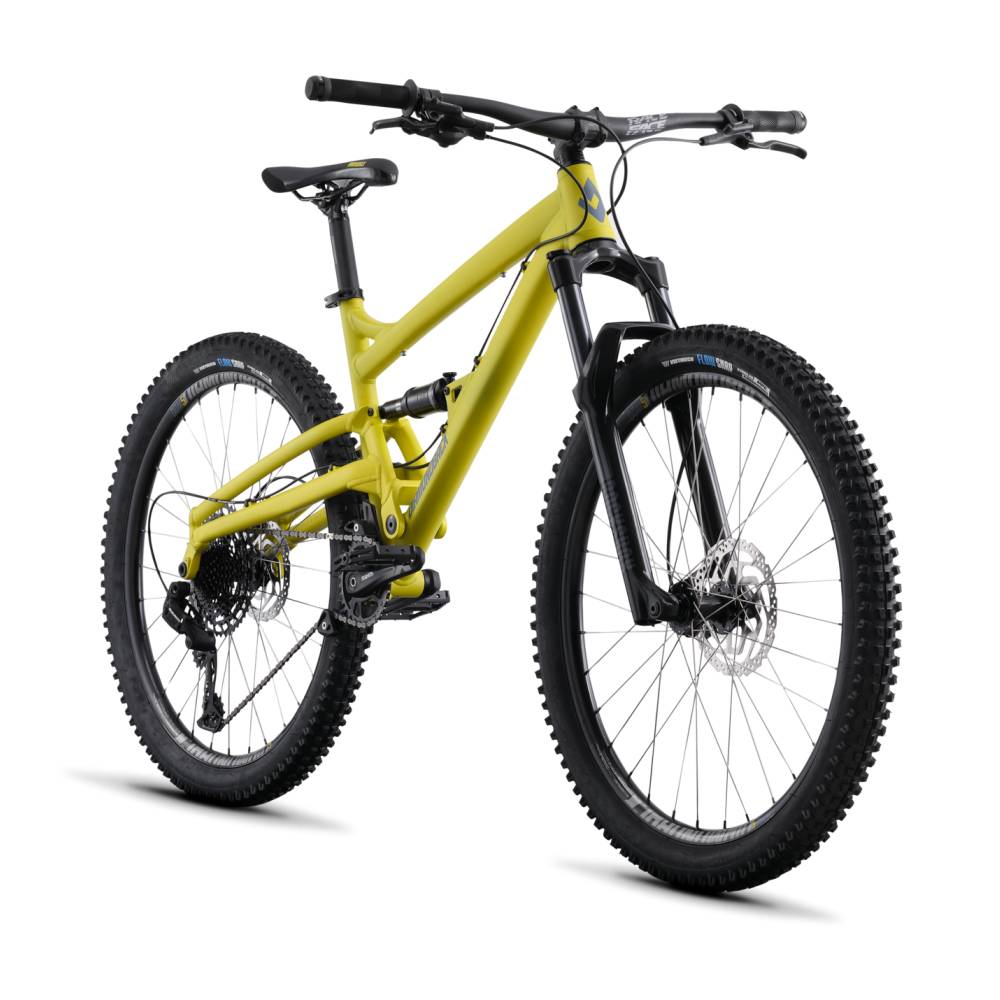

Accommodating Sizes

This bike comes in small, medium, and large. Something for every height range.

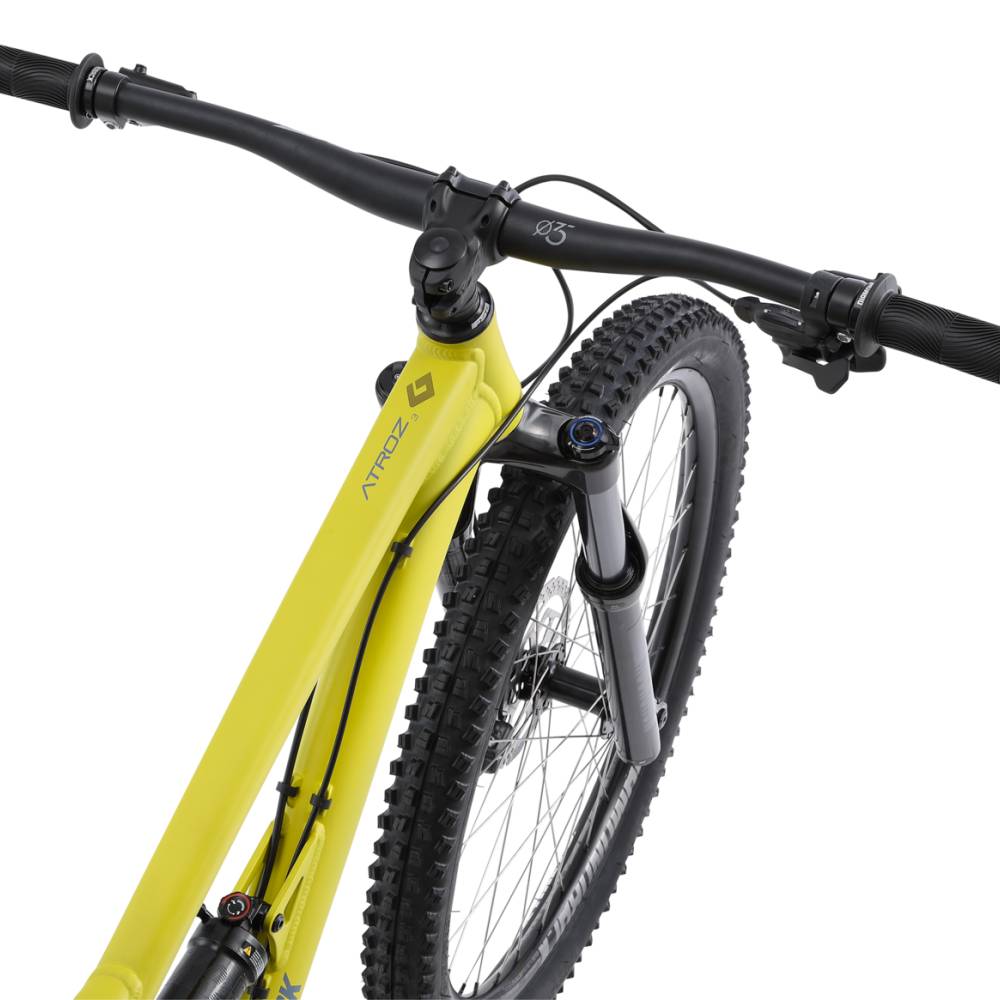

6061 T-6 Aluminum Frame

Very durable and stable for a wide range of riders. Also resistant to rust. And backed by a lifetime warranty.

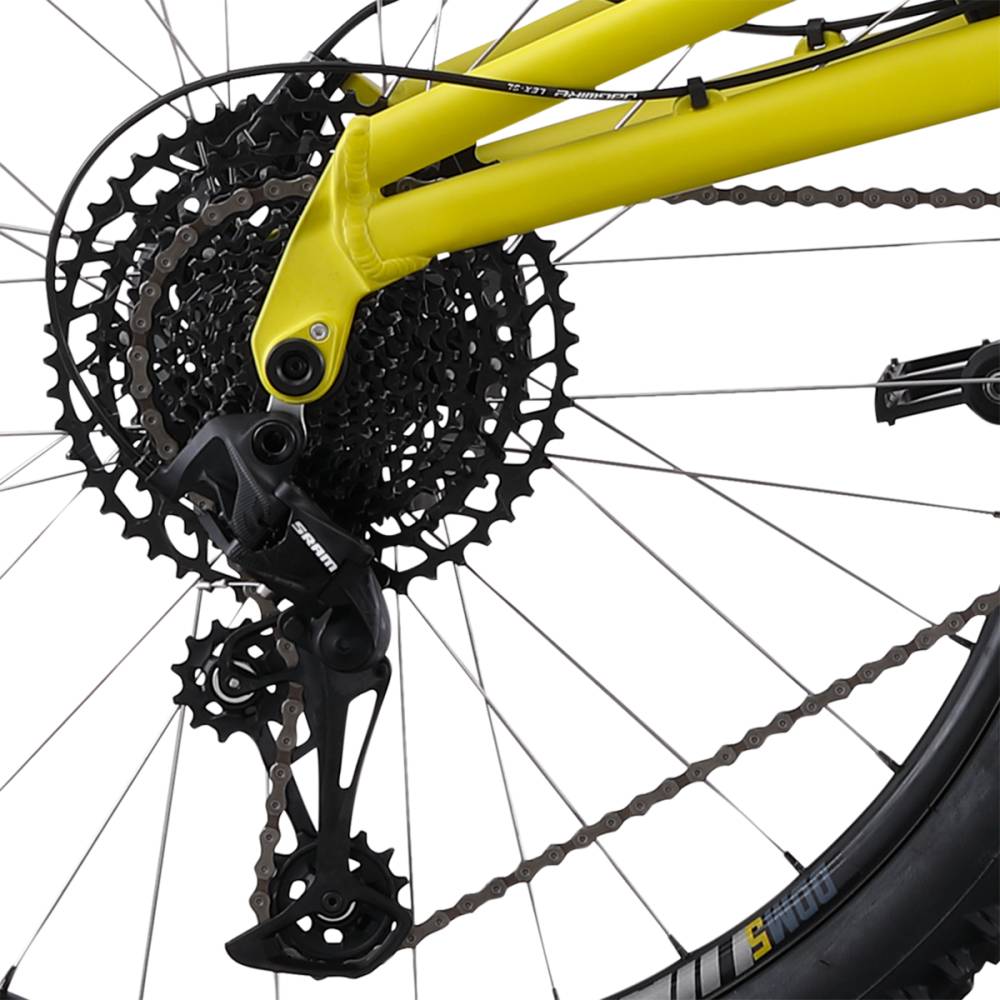

SRAM NX 12-Speed Drivetrain

Constant shifting power for any terrain. And pesky climbs are no problem thanks to its 50-tooth granny gear.

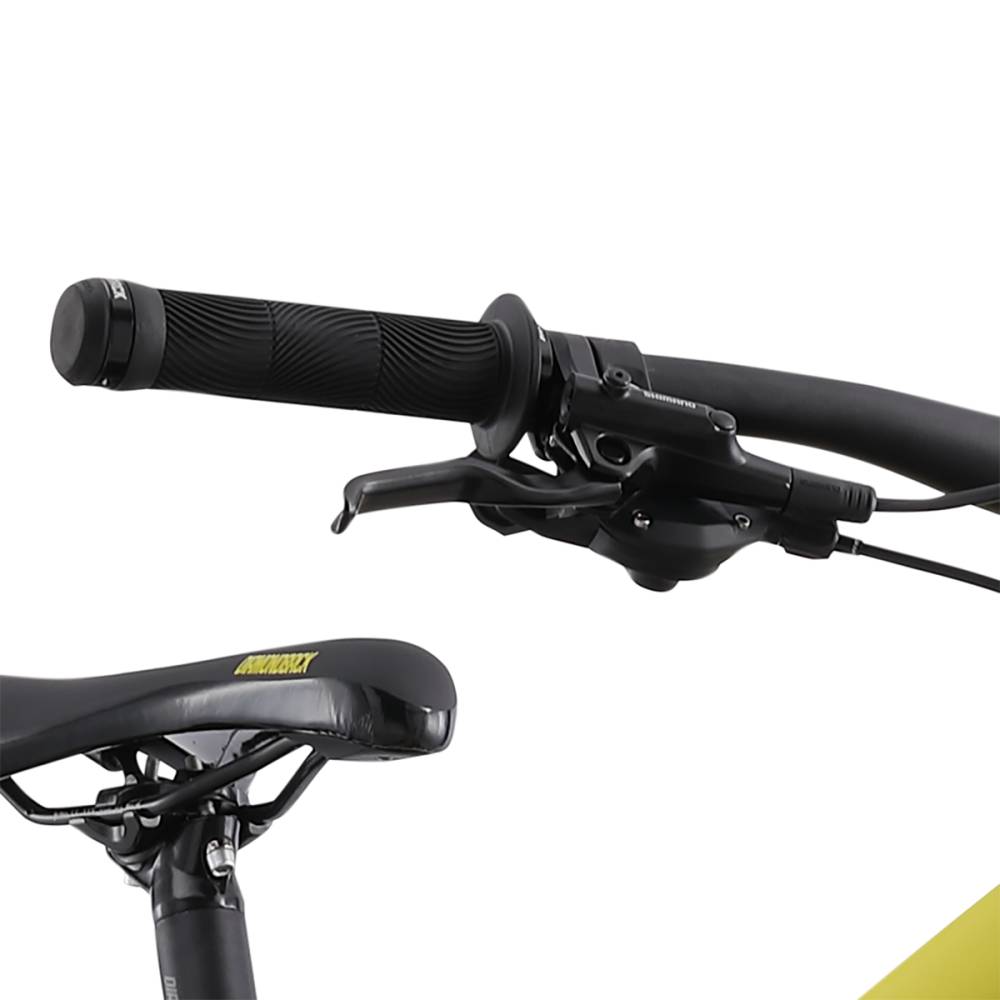

Flat Handlebars

A better position for driving down on the pedals or standing and sprinting. Also more control at high speeds and great balance at low speeds.

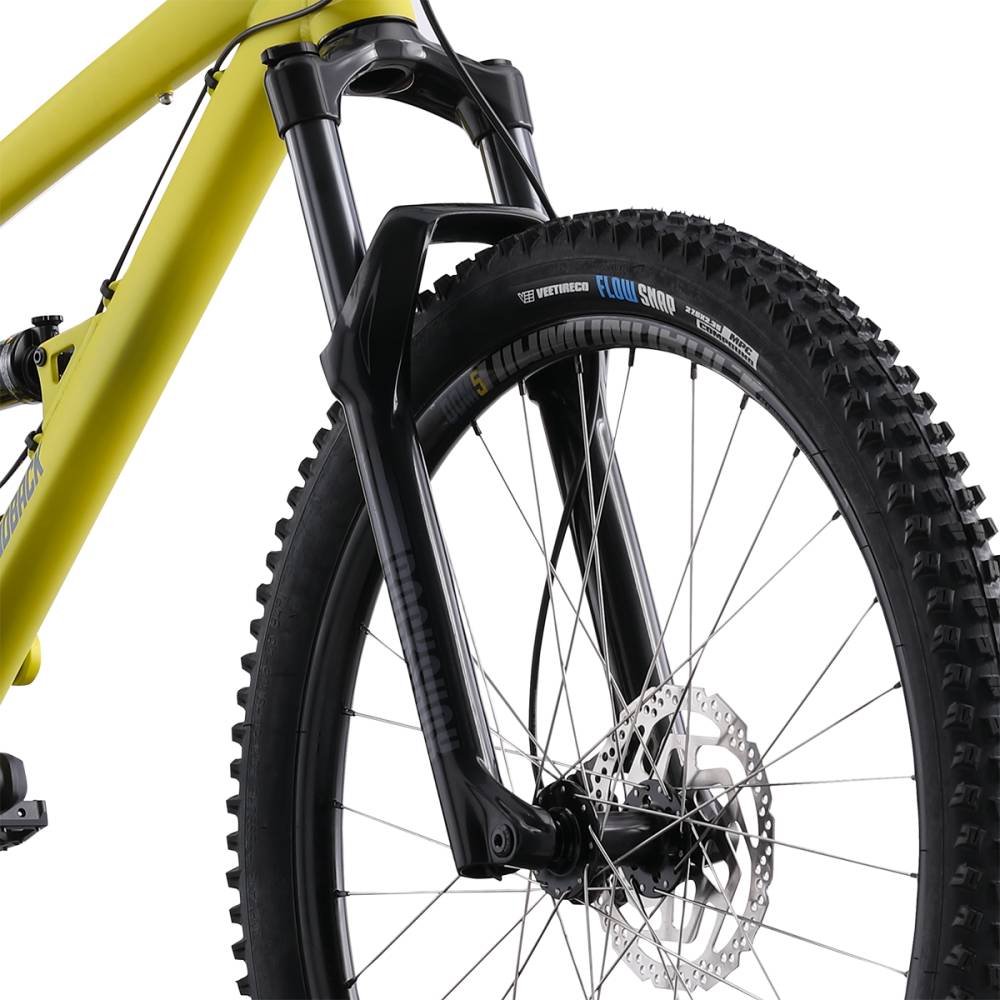

27.5" Wheels

Perfect for quick steering and acceleration. And a more responsive feel for the bike. Room for 2.35" tires.

Geometry Details by Size Geometry Details by Size

FRAME SIZE	SM 5'4" - 5'7"	MD 5'7" - 5'10"	LG 5'10" - 6'1"
Bike Stand Over Height	752.0 mm	768.0 mm	801.0 mm
Bike Seat Tube Length	380.0 mm	430.0 mm	480.0 mm
Bike Top Tube Length	550.0 mm	585.0 mm	615.0 mm
Bike Head Tube Length	110.0 mm	110.0 mm	120.0 mm
Bike Head Angle	66.5°	66.5°	66.5°
Bike Seat Angle	72.5°	72.5°	72.5°
Bike Wheel Base	1095.0 mm	1130.0 mm	1161.0 mm
Bike Chain Stay Length	435.0 mm	435.0 mm	435.0 mm
Bike Fork Offset	44.0 mm	44.0 mm	44.0 mm
Bike Bb Height	330.0 mm	330.0 mm	330.0 mm
Bike Bb Drop	10.0 mm	10.0 mm	10.0 mm
Bike Stem Length	50.0 mm	50.0 mm	50.0 mm
Bike Handlebar Width	750.0 mm	750.0 mm	750.0 mm
Bike Crank Length	170.0 mm	175.0 mm	175.0 mm
Bike Seat Post Length	300.0 mm	300.0 mm	300.0 mm
Bike Stack	559.0 mm	559.0 mm	568.0 mm
Bike Reach	373.0 mm	408.0 mm	435.0 mm
Bike Fork Travel	130.0 mm	130.0 mm	130.0 mm
