The 2022 Diamondback Division 1: Full Details & Specs

Check out the full specs for the 2022 Diamondback Division 1 in the table below.

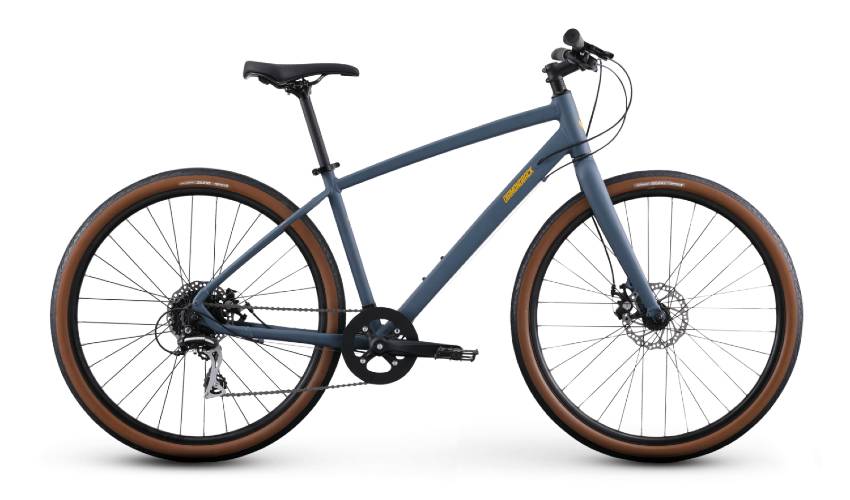

Available Colors

Specifications Specifications

FRAME	Custom Formed AL-6061 Heat Treated Aluminum, 27.5 City Sport Geometry
FORK	Aluminum Blades, with Post Mount Disc
HEADSET	1 1/8" Internal Cartridge Bearing
CRANKS	Aluminum Forged 3PC 104 BCD, 40t
BOTTOM BRACKET	Sealed Cartridge Bearing
FRONT DERAILLEUR	N/A
REAR DERAILLEUR	Shimano Acera M360
SHIFTER	Shimano M315 8-speed Trigger Shifter, Right Only
COGSET	Shimano 8 Speed, 12-32 Cassette
CHAIN	KMC 8 Speed
FRONT HUB	Aluminum Quick Release Disc, 32 Hole
REAR HUB	Aluminum Quick Release Disc, 32 Hole
SPOKES	14g Stainless Steel with Brass Nipples
RIMS	Aluminum DDM-5, 32h, 27.5", 28mm Wide Double Wall
TIRES	Vee Tire Co. Zilent 650x47c, Wire Bead, 30 TPI
BRAKE LEVERS	Tektro 2 Finger Aluminum
PEDALS	Aluminum Body, Chromoly Spindle
HANDLEBAR	Aluminum 31.8, 15mm Rise, 680mm Wide
GRIPS	ERGO Dual Density
STEM	Forged Aluminum Alloy 31.8mm Bar Clamp
SEAT	Urban Warrior Saddle
SEATPOST	Aluminum Micro Adjust, 27.2 x 350/400mm
EXTRAS	Reflective Decals, Rack and Fender Mounts
BRAKES	Tektro MD-M300 Mechanical Disc with 160mm Rotors

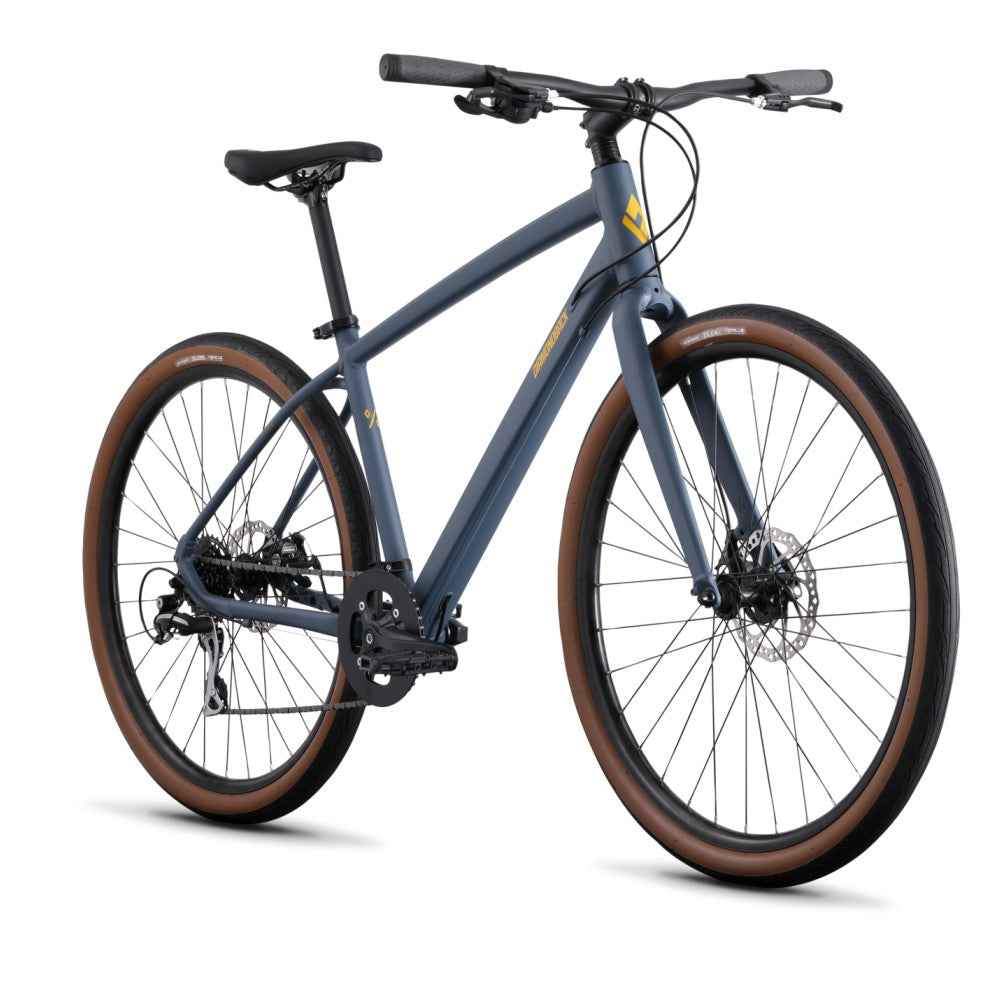

Accommodating Sizes

This bike comes in small, medium, large, and extra-large. Something for every height range.

Aluminum Frame

Very durable and stable for a wide range of riders. Also resistant to rust. And backed by a lifetime warranty.

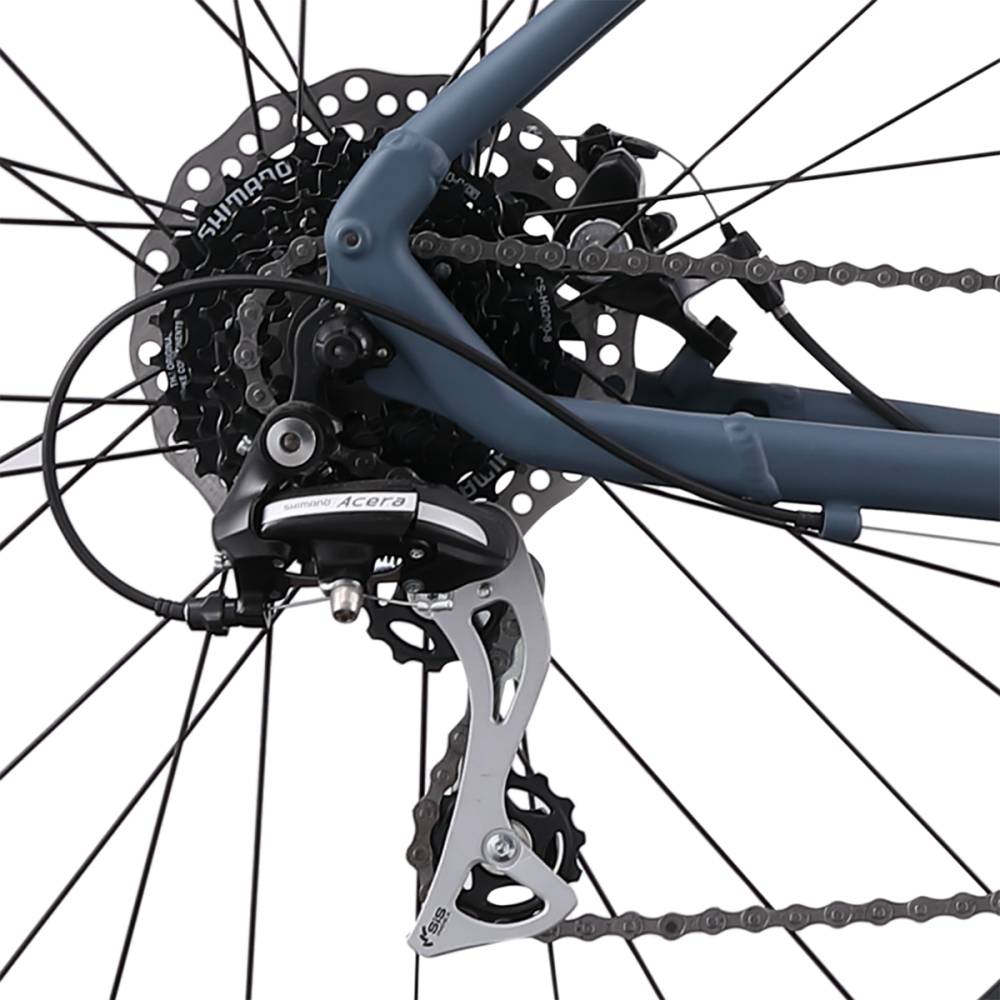

Shimano 8-Speed Drivetrain

Change gears on the hills or when you're riding into the wind. Plus a durable KMC 8-speed chain for smooth shifting.

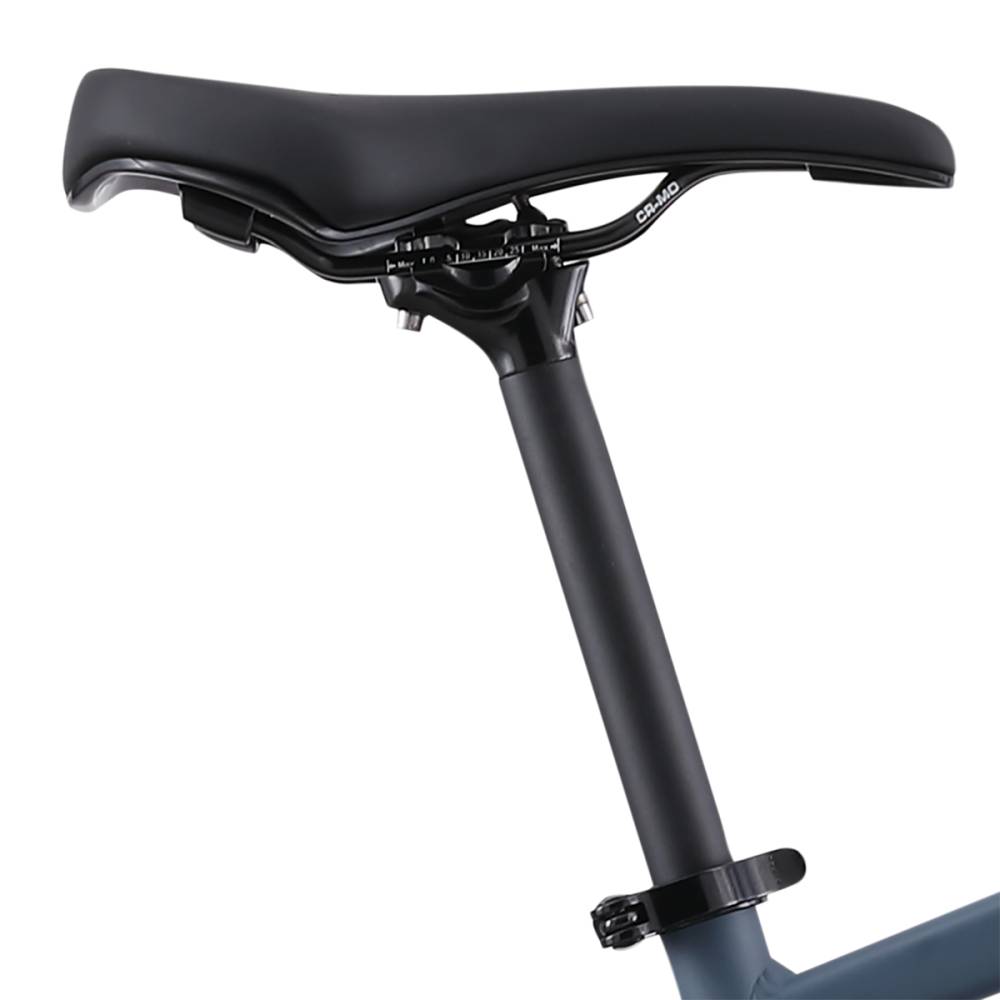

Adjustable Seatpost

Drop it out of the way when you're climbing or shredding the streets. Or when your hitting obstacles.

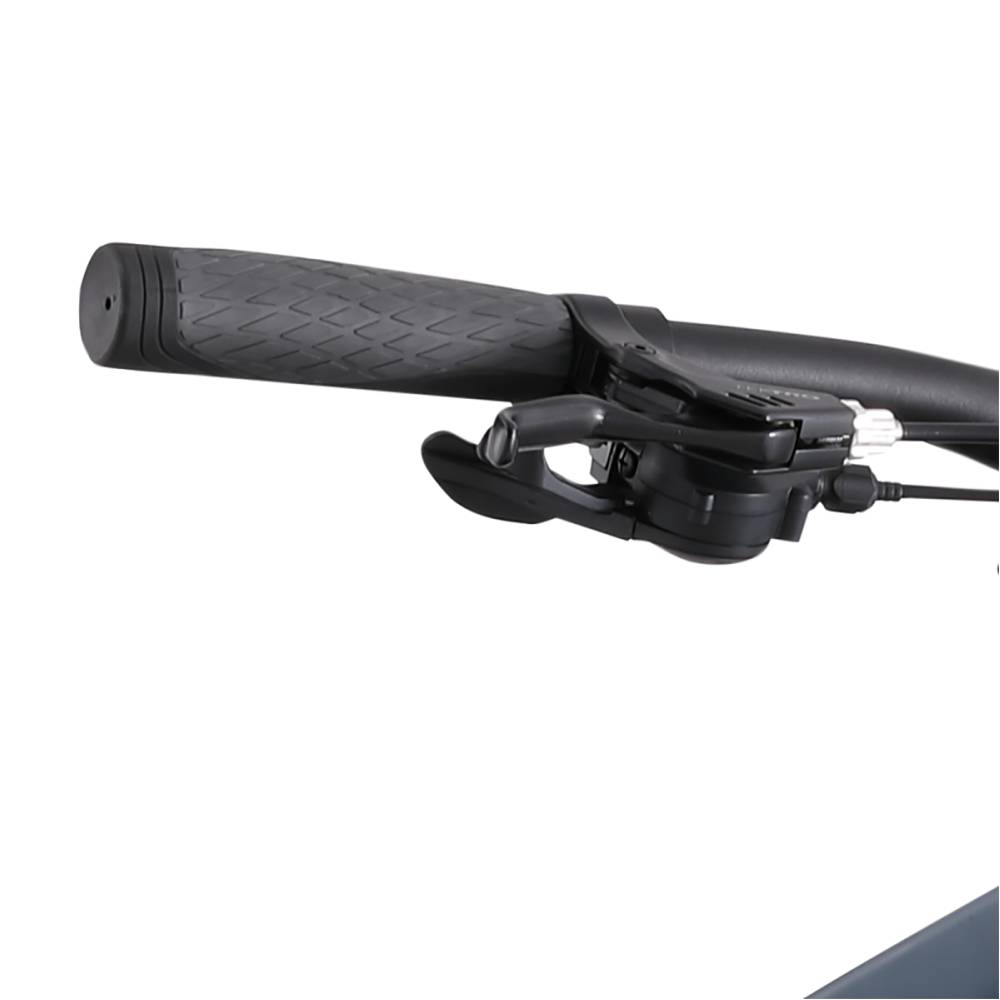

Flat Handlebars

A better position for driving down on the pedals or standing and sprinting. Also more control at high speeds and great balance at low speeds.

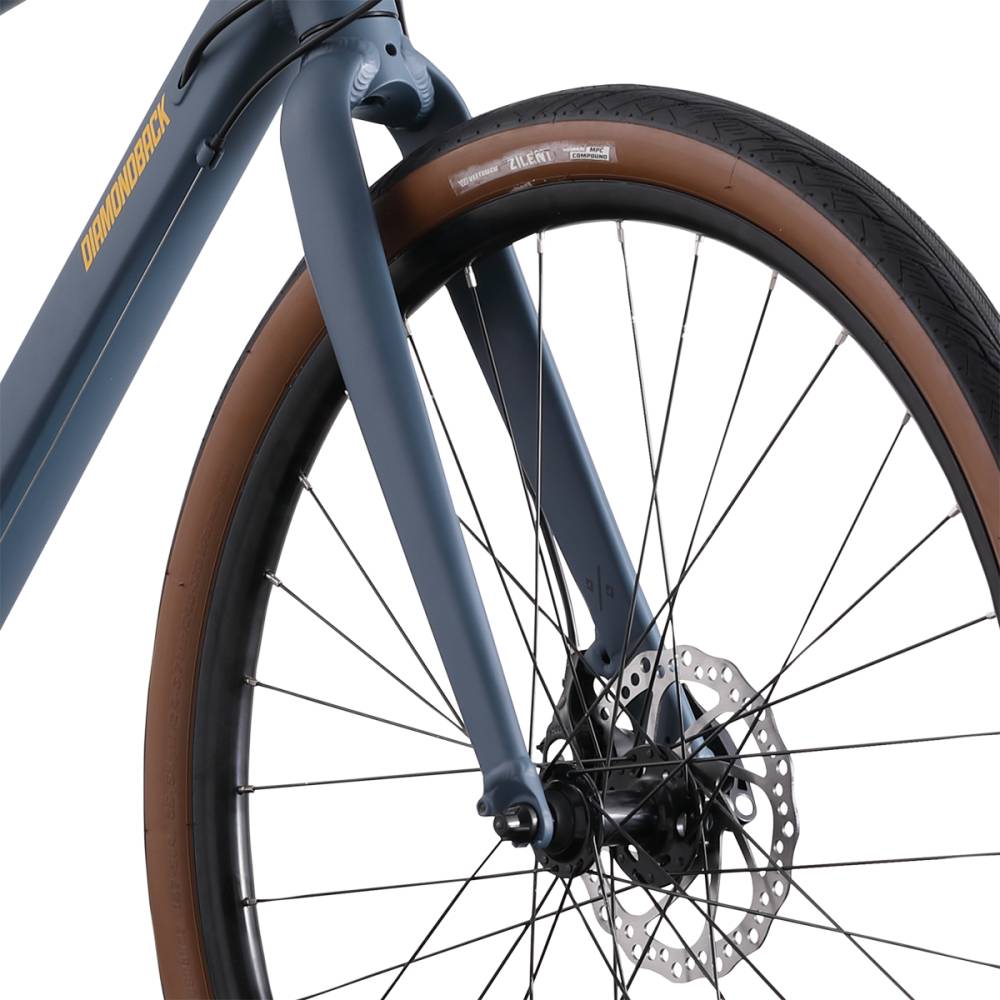

27.5" Wheels

Perfect for quick steering and acceleration. And a more responsive feel for the bike. Room for 47c tires.

Geometry Details by Size Geometry Details by Size

FRAME SIZE	SM 5'4" - 5'7"	MD 5'7" - 5'10"	LG 5'10" - 6'1"	XL/21 6'1" - 6'4"
Bike Stand Over Height	694.0 mm	737.0 mm	778.0 mm	818.0 mm
Bike Seat Tube Length	380.0 mm	430.0 mm	480.0 mm	530.0 mm
Bike Top Tube Length	565.0 mm	595.0 mm	610.0 mm	625.0 mm
Bike Head Tube Length	120.0 mm	145.0 mm	170.0 mm	195.0 mm
Bike Head Angle	70.0 °	70.0 °	70.0 °	70.0 °
Bike Seat Angle	73.0 °	73.0 °	73.0 °	73.0 °
Bike Wheel Base	1043.0 mm	1074.0 mm	1090.0 mm	1107.0 mm
Bike Chain Stay Length	425.0 mm	425.0 mm	425.0 mm	425.0 mm
Bike Fork Offset	45.0 mm	45.0 mm	45.0 mm	45.0 mm
Bike Bb Height	282.0 mm	282.0 mm	282.0 mm	282.0 mm
Bike Bb Drop	67.5 mm	67.5 mm	67.5 mm	67.5 mm
Bike Stem Length	70.0 mm	70.0 mm	80.0 mm	80.0 mm
Bike Handlebar Width	680.0 mm	680.0 mm	700.0 mm	700.0 mm
Bike Crank Length	170.0 mm	175.0 mm	175.0 mm	175.0 mm
Bike Seat Post Length	350.0 mm	350.0 mm	350.0 mm	350.0 mm
Bike Stack	550.0 mm	573.0 mm	597.0 mm	620.0 mm
Bike Reach	396.0 mm	419.0 mm	427.0 mm	435.0 mm
Bike Fork Length	410.0 mm	410.0 mm	410.0 mm	410.0 mm
