2022 Diamondback Release 2
Shimano SLX
$3,400.00 $2,550.00Sale • Save $850
$3,400.00 $2,550.00Sale • Save $850
$3,400.00 $2,550.00Sale • Save $850
$3,400.00 $2,550.00Sale • Save $850
Free shipping or in-store pickup

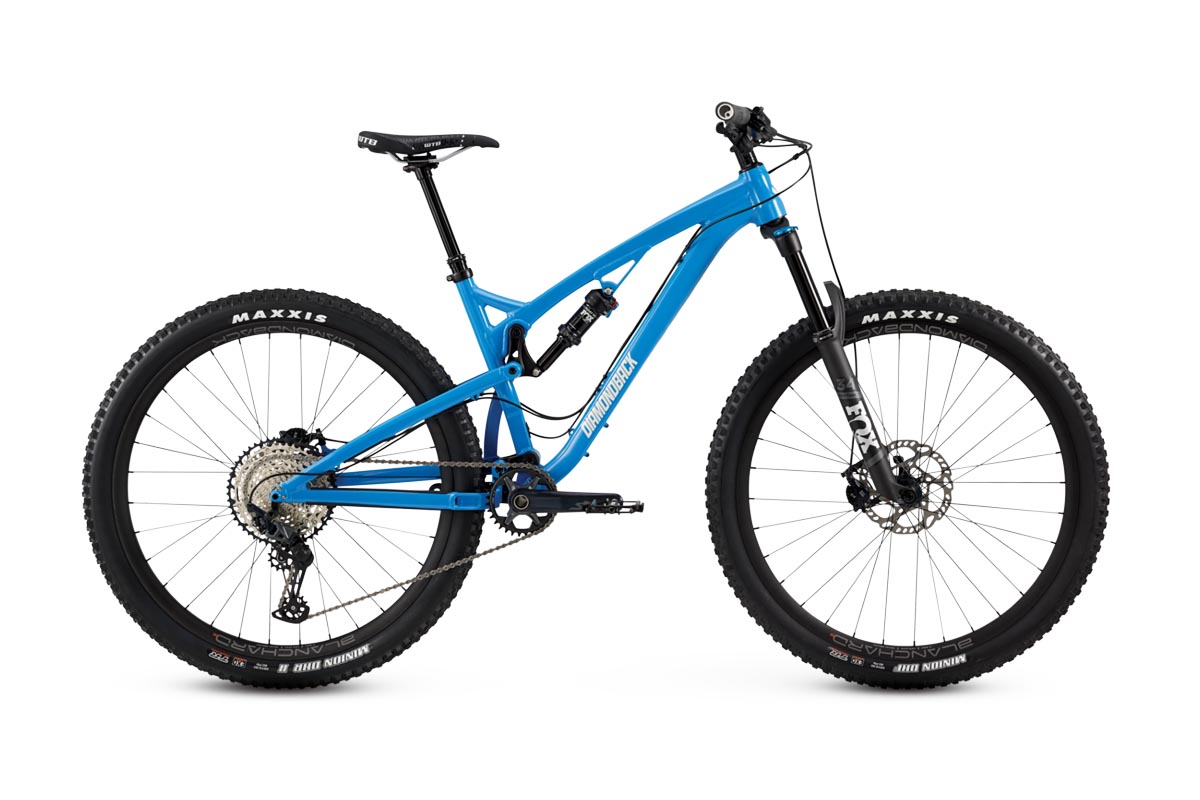

2022 Diamondback Release 2
$2,550.00 - Save $850.00
$2,550.00 - Save $850.00
$2,550.00 - Save $850.00
$2,550.00 - Save $850.00
Key Features
- Wheel Size: 29"
- Front Travel: 140mm
- Rear Travel: 130mm
- Frame Material: Aluminum
Specs
- Diamondback 6061 T-6 Aluminum frame
- Shimano SLX drivetrain
- Fox Rhythm 34
- 140mm fork
- Fox Float DPS Evol 3 Position
- 130mm shock
- Diamondback Blanchard 28R tubeless wheelset
- Shimano SLX brakes
- Maxxis Minion DHF 29x2.3" EXO front tire
- Maxxis Minion DHR II 29x2.3" EXO rear tire
- WTB Koda Comp saddle
Learn More About the 2022 Diamondback Release 2
The 2022 Diamondback Release 2 is built for riders who want a mountain bike that handles a wide variety of trails with ease. It doesn't shy away from rough, technical terrain or long days on the trail. Instead, it's ready to roll with confidence and smooth control, thanks to some thoughtful design and solid components.
At its heart lies a frame made from Diamondback's 6061 T-6 aluminum. This material keeps things light, but tough enough to take the hits a trail bike faces daily. The geometry leans into trail riding, blending nimbleness with enough stability to keep you confident when things get steep or rocky. You get a frame that feels fast and efficient, delivering power where you put it, and precise handling.
The bike is equipped with a Shimano SLX drivetrain. This groupset is dependable and smooth, making quick gear changes feel effortless, even when the trail demands it. With plenty of gear options, climbs feel manageable, and you can carry speed on the downhills without a second thought.
The suspension setup includes a Fox Rhythm 34 fork upfront with 140mm of travel. It soaks up bumps and rough patches, giving the front end a plush, controlled feel. The fork isn't just about comfort. It's adjustable to match how you like to ride, making it easier to dial the ride exactly how you want.
Out back, a Fox Float DPS Evol shock with 130mm of travel keeps the rear end active. It responds well to terrain changes and helps the bike maintain grip and flow over uneven ground. There's a handy 3-position compression setting on the shock. You can flip through the modes to switch from efficient pedaling on the climbs to full suspension support on descents, without stopping.
The wheels are Diamondback Blanchard 28R's, tubeless ready for lower tire pressures that improve traction and cut down on pinch flats. These rims are wide enough to fit chunky tires, giving you better grip and stability when the trail gets tricky.
You'll also find a set of Shimano SLX hydraulic disc brakes. They're strong and consistent, letting you feather the brakes smoothly or grab hard without fear. The control they offer is reassuring on steep or technical sections, where precise braking often makes the difference.
Rounding out the setup are Maxxis Minion DHF and DHR II tires, both 29x2.3" with EXO sidewalls. Their aggressive tread is designed to bite into loose, rocky, or muddy surfaces. The tough sidewalls protect against punctures, so you can push your limits without worrying about flats.
Comfort doesn't take a backseat either. The WTB Koda Comp saddle strikes a nice balance between support and cushioning. Its shape works with lots of riding positions and body types, making it easier to ride longer without that nagging saddle discomfort.
If you want a trail-ready bike that stays durable but doesn't feel heavy or sluggish, the 2022 Diamondback Release 2 deserves a close look. It can handle tough terrain while giving you control and confidence on every mile.
Product Identifiers
- Barcode: 23114468
Product Identifiers
- Barcode: 45585124
Product Identifiers
- Barcode: 45617892
Product Identifiers
- Barcode: 45650660
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
FRAME SIZE | SM/15.5 5'4"-5'7" | MD/17 5'7"-5'10" | LG/19 5'10"-6'2" | XL/21 6'2"-6'6" |
---|---|---|---|---|
Bike Stand Over Height | 775.0 mm | 784.0 mm | 791.0 mm | 804.0 mm |
Bike Seat Tube Length | 394.0 mm | 432.0 mm | 483.0 mm | 533.0 mm |
Bike Top Tube Length | 585.0 mm | 610.0 mm | 635.0 mm | 660.0 mm |
Bike Head Tube Length | 100.0 mm | 100.0 mm | 110.0 mm | 120.0 mm |
Bike Head Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
Bike Seat Angle | 73.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
Bike Wheel Base | 1134.0 mm | 1159.0 mm | 1185.0 mm | 1211.0 mm |
Bike Chain Stay Length | 446.0 mm | 446.0 mm | 446.0 mm | 446.0 mm |
Bike Bb Height | 348.0 mm | 348.0 mm | 348.0 mm | 348.0 mm |
Bike Bb Drop | 25.0 mm | 25.0 mm | 25.0 mm | 25.0 mm |
Bike Stem Length | 40.0 mm | 40.0 mm | 40.0 mm | 40.0 mm |
Bike Handlebar Width | 780.0 mm | 780.0 mm | 780.0 mm | 780.0 mm |
Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 435.0 mm | 435.0 mm | 485.0 mm | 485.0 mm |
Bike Stack | 599.0 mm | 599.0 mm | 608.0 mm | 617.0 mm |
Bike Reach | 402.0 mm | 427.0 mm | 449.0 mm | 472.0 mm |
Bike Fork Travel | 140.0 mm | 140.0 mm | 140.0 mm | 140.0 mm |
Detailed Specs By Build Kit
Frame | Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
---|---|
Rear Shock | Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width |
Fork | Fox Rhythm 34 29", 140mm Travel, Grip Dampener w/Sweep Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle |
Headset | FSA No. 57 Sealed Cartridge |
Cranks | Shimano SLX M7100, 32T |
Bottom Bracket | Shimano BB-52 |
Rear Derailleur | Shimano SLX M7100 Shadow Plus, 12 Speed, SGS |
Shifter | Shimano SLX M7100, 12 Speed |
Cogset | Shimano SLX M7100 Cassette, 12 Speed, 10-51T |
Chain | Shimano SLX M7100, 12 Speed |
Front Hub | Shimano SLX M7110, 32h Aluminum Boost 110x15mm Thru-axle, Center Lock |
Rear Hub | Shimano SLX M7110, 32h Aluminum Boost 148x12mm Thru-axle, Center Lock, Microspline |
Spokes | 14g Stainless Steel |
Rims | Diamondback Blanchard 28R, Tubeless Comaptible, 32h |
Tires | Maxxis Minion DHF 29x2.3" EXO, TLR, Folding / Maxxis Minion DHR II 29x2.3" EXO, TLR, Folding |
Brake Levers | Shimano SLX |
Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins |
Handlebar | DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore |
Grips | Ergon GE10 Evo Lock-On |
Stem | DB35 Aluminum 35mm Reach, 35mm Bar Bore |
Seat | WTB Koda Comp |
Steatpost | Kindshock Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote |
Extras | Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Spare RD Hanger, Carbon Paste |
Brakes | Shimano SLX M7100, w/180mm Front /180mm Rear, RT70 Rotors |
