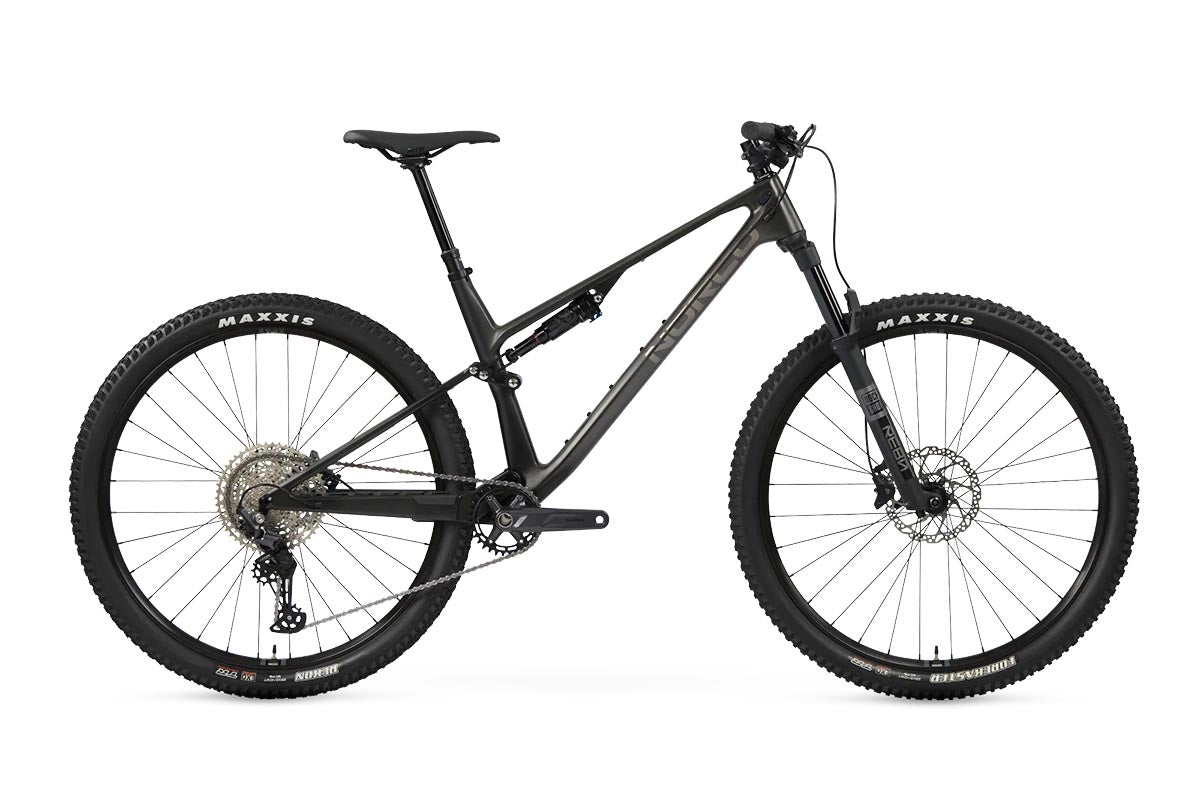

2026 Norco Revolver C3 130
Free shipping or in-store pickup
2026 Norco Revolver C3 130
Key Features
- Wheel Size: 29"
- Front Travel: 130mm
- Rear Travel: 120mm
- Frame Material: Carbon
Specs
- Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned
- Rockshox Reba RL, Motion Control, 130mm, 44mm offset fork
- Rockshox SID LUXE Select+, 190x45, standard shock
- Shimano Deore SL-M6100, 12sp, SGS shifter
- Shimano Deore RD-M6100, 12 sp, SGS derailleur
- Shimano Doere FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2, S3) 175mm (S4, S5) crankset
- Shimano BB-MT501, BSA 73mm bottom bracket
- Shimano Deore CS-M6100-12, 10-51T, 12sp cassette
- Shimano Deore CN-M6100-21, 12sp chain
- Shimano Deore BR-MT410 brakes
- Shimano SM-RT64, 180mm C-lock rotors
- Norco 6061, 760 (S1, S2, S3), 20mm rise handlebar
- Norco 6061, 35x50mm stem
- TranzX YSI36, 31.6mm, 120mm (S1,S2) -150mm (S3) -170mm (S4) -200mm (S5) seatpost
- FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
- WTB Silverado Medium saddle
- Shimano Deore HB-MT410, 15x110mm Boost, 32H, C-lock front hub
- Shimano Deore FH-MT510, 12x148 Boost, Microspline, 32H, C-lock rear hub
- WTB ST i27 TCS, 27mm ID, 32H, 29" rims
- Maxxis New Forekaster, EXO, TR 29x2.40" front tire
- Maxxis Rekon, EXO, TR 29x2.40" rear tire
Learn More About the 2026 Norco Revolver C3 130
Confidence. Capability. Control.
The 2026 Norco Revolver C3 130 redefines what a short-travel trail bike can do. Combining a carbon fiber frame, Ride Aligned™ geometry, and balanced 130mm/120mm travel, it delivers XC-like efficiency with all the confidence and traction you need when the trail points down. Built to climb fast and descend even faster, the Revolver C3 130 brings Norco’s proven race heritage to a more versatile, all-terrain platform.
Lightweight Carbon Frame & Ride Aligned™ Design
The foundation of the Revolver C3 130 is a precision-engineered carbon frame that’s light, stiff, and tuned for responsive handling. Norco’s Ride Aligned™ Design System ensures every frame size is optimized for fit, weight distribution, and suspension performance—so every rider gets the same fast, balanced feel.
-
120mm of rear travel delivers efficient pedaling and excellent traction.
-
UDH (Universal Derailleur Hanger) compatibility for easy service and future drivetrain upgrades.
-
Eagle Transmission ready, giving riders a clear upgrade path to the latest wireless shifting systems.
The result is a platform that feels fast, confident, and composed on every trail.
Trail-Tuned Suspension
The Revolver C3 130 pairs a slightly longer-travel fork with Norco’s efficient suspension design for a perfect trail balance—nimble on climbs, controlled on descents.
-
Front: RockShox Reba RL, 130mm travel, 44mm offset — a lightweight fork with Motion Control damping for adjustable low-speed compression and rebound.
-
Rear: RockShox SIDLuxe Select+, 190x45mm shock — delivering supple small-bump sensitivity and efficient mid-stroke support.
Together, this suspension setup provides a plush yet efficient ride that’s equally comfortable on technical singletrack or long backcountry missions.
Shimano Deore 12-Speed Drivetrain
Reliable, crisp, and built for riders who value durability, the Shimano Deore 12-speed drivetrain provides a massive 10–51T gear range to tackle steep climbs and high-speed descents.
-
Shifter: Shimano Deore SL-M6100, 12-speed
-
Derailleur: Shimano Deore RD-M6100 SGS, 12-speed
-
Crankset: Shimano Deore FC-MT512, 32T chainring with size-specific crank lengths
-
Cassette: Shimano Deore CS-M6100-12, 10–51T
-
Chain: Shimano Deore CN-M6100-12
This system delivers smooth, consistent shifting in all conditions—ready for big mileage days and rough terrain alike.
Controlled Stopping Power
The Revolver C3 130 is equipped with Shimano Deore MT410 hydraulic brakes, known for dependable power and easy modulation.
-
Rotors: Shimano SM-RT64, 180mm front and rear, Center Lock.
Together they provide confident braking performance with minimal maintenance and excellent heat management, even on long descents.
Trail-Ready Cockpit & Dropper System
The Norco 6061 alloy cockpit keeps things light and responsive, with a 760mm handlebar for control and a 35x50mm stem for precise steering.
The TranzX YSI36 dropper post delivers size-specific travel (120–200mm), giving riders maximum maneuverability and the perfect saddle height for every section of trail.
A WTB Silverado Medium saddle rounds out the setup, offering comfort and performance for long hours in the saddle.
Durable Wheels & Confident Traction
The Revolver C3 130 rolls on WTB ST i27 TCS 29” rims, a dependable tubeless-ready platform that’s ready to handle aggressive XC and trail riding.
-
Front Hub: Shimano Deore HB-MT410, 15x110mm Boost
-
Rear Hub: Shimano Deore FH-MT510, 12x148mm Boost, Micro Spline
-
Tires:
-
Front: Maxxis New Forekaster 29x2.40”, EXO, TR — grippy and predictable in loose or wet terrain.
-
Rear: Maxxis Rekon 29x2.40”, EXO, TR — fast-rolling with excellent braking traction.
-
This wheel and tire setup strikes the ideal balance between efficiency and control across diverse trail conditions.
Smart Details for Real Riders
Every element of the Revolver C3 130 has been chosen for performance, serviceability, and durability:
-
BSA 73mm threaded bottom bracket for simple maintenance.
-
Internally routed cables for a clean aesthetic and protection from the elements.
-
Tapered FSA No. 42/48ACB integrated headset for precise steering.
-
Boost hub spacing for extra stiffness and tire clearance.
This attention to detail ensures that the Revolver performs as well in the long term as it does on day one.
Versatility with a Race Edge
The 2026 Norco Revolver C3 130 brings together the best of XC speed and trail versatility. Whether you're hammering through a race course or exploring rugged alpine singletrack, this bike delivers a lively, efficient, and confidence-inspiring ride. It’s the perfect blend of lightweight design, reliable components, and progressive geometry—built to keep you in control, no matter how hard you push.
