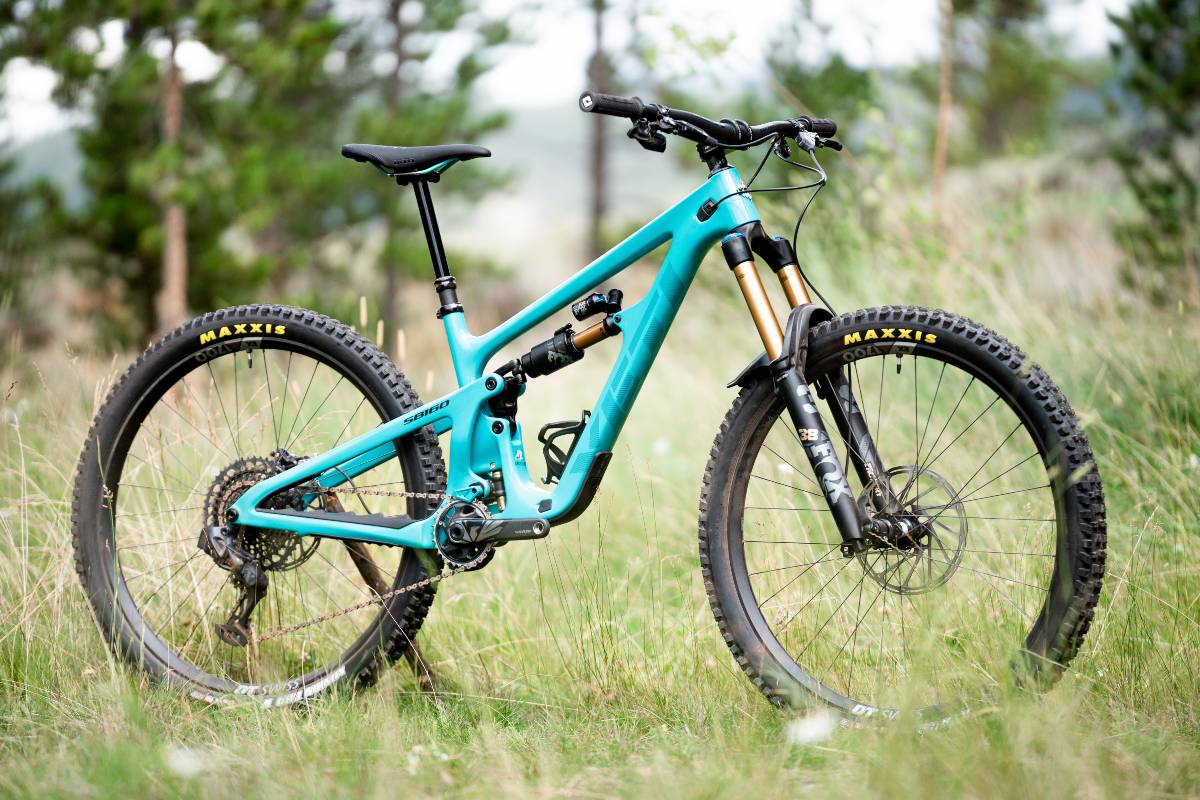

Say hello to the brand new 2023 Yeti SB160. Made for ultimate speed and performance in races all over the world, or right in your hometown. You can ride out of your comfort zone and be faster than you ever thought possible. Thanks to the 170mm fork, 29er wheels, Switch Infinity suspension, and more amazing features.
Shop Related Products
The SB160 bike builds on the legacy of the SB150, which helped win 51 EWS stages, 12 EWS races, and one national series championship. So you know it means serious business. Buy it today, and you’ll be celebrating your own wins in no time. Read on to decide which build is right for you.
2023 Yeti SB160 Highlights
- S-XXL Frame Sizes
- 29″ Front and Rear Wheels
- 170mm Front and 160mm Rear Travel
- Updated Switch Infinity on T-Series
- New Threaded Bottom Bracket
- New High-Clearance Downtube
- New Dual-Density Downtube Protection
- Standard Sealed Enduro Max Bearings
- Floating Collet Axle Pivot Design
- Wishbone Shock Extender
- Universal Derailleur Hanger
- Fully Internal Cable Routing
- Long Dropper Compatibility
- Boost Spacing
What’s New on the 2023 Yeti SB160
There’s a more compact section in front of the bottom bracket for extra ground clearance on rough trails. The downtube protection system has a rubber under-guard that cushions the frame, and an external hard cap for superior impact resistance.
The cap is also removable for dropper post cable routing. Size-specific seat tube angles and chain stay lengths ensure riders of all heights get the same incredible performance. The seat tube itself is shorter to run a longer dropper.
T-Series builds have a better Switch Infinity suspension. The bearings are pressed right into the linkage assembly as opposed to the swingarm or front triangle. Along with machined floating collet axles to boost longevity. Both features are meant for better alignment and the smoothest suspension motion.
The patented two-piece wishbone shock extender ensures optimal clamping, shock compatibility, and easy shock removal for longer travel application. The forward positioning increases downtube clearance and and lessens standover height.
A universal derailleur hanger offers unparalleled derailleur protection. They’re sold at almost any bike shop, so no trouble finding a replacement. Enduro Max bearings are housed in the pivot linkages. Easy to replace, and less chance of damaging the frame in the process. Plus, there is no a threaded bottom bracket!
Internally-routed cable tubes have secure closures at entry and exit points. That means no rattling or cable rub. You can even run a mechanical drivetrain and dropper or a wireless set-up. Finally, there are two new colors, Dust and Loch.
Build Kit Specs
The SB160 comes in five build kits to accommodate every type of rider.
| C1 | C2 | T1 | T3 | T4 | |
|---|---|---|---|---|---|
| PRICE | $6,700 | $7,000 | $9,100 (FRAME ONLY: $5,000) | $10,500 (FRAME ONLY: $5,000) | $12,000 (FRAME ONLY: $5,000) |
| FORK | FOX PERFORMANCE 38/170MM | FOX PERFORMANCE 38/170MM | FOX FACTORY 38 GRIP 2/170MM | FOX FACTORY 38 GRIP 2/170MM | FOX FACTORY 38 GRIP 2/170MM |
| SHOCK | FOX PERFORMANCE FLOAT X | FOX PERFORMANCE FLOAT X | FOX FACTORY FLOAT X2 | FOX FACTORY FLOAT X2 | FOX FACTORY FLOAT X2 |
| TIRE (F) | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ |
| TIRE (R) | MAXXIS MINION DHR II 2.4 EXO+ | MAXXIS MINION DHR II 2.4 EXO+ | MAXXIS MINION DHR II 2.4 EXO+ | MAXXIS MINION DHR II 2.4 EXO+ | MAXXIS MINION DHR II 2.4 EXO+ |
| ROTOR (F) | SHIMANO 220 | SRAM CENTERLINE 220 | SRAM CENTERLINE 220 | SRAM CENTERLINE 220 | SRAM CENTERLINE 220 |
| ROTOR (R) | SHIMANO 203 | SRAM CENTERLINE 200 | SRAM CENTERLINE 200 | SRAM CENTERLINE 200 | SRAM CENTERLINE 200 |
| HEADSET | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED CANE | CREEK 110 INTEGRATED |
| WHEELSET | DT SWISS E1900 30MM | DT SWISS E1900 30MM | DT SWISS CUSTOM EX1700 30MM | DT SWISS CUSTOM EX1700 30MM | DT SWISS CUSTOM EX1700 30MM |
| BB | SHIMANO XT BB 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 |
| GRIPS | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO |
| BAR | BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM, 35MM RISE | BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM, 35MM RISE | YETI CARBON 35X800MM | YETI CARBON 35X800MM | YETI CARBON 35X800MM |
| STEM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 CNC 35X50MM |
| CRANK | SHIMANO SLX 30T 170MM | SHIMANO SLX 30T 170MM | SRAM X1 EAGLE 30T 170MM | SRAM X1 EAGLE 30T 170MM | SRAM X01 EAGLE 30T 170MM |
| BASH GUARD | ONEUP BASH GUIDE | ONEUP BASH GUIDE | ONEUP BASH GUIDE | ONEUP BASH GUIDE | ONEUP BASH GUIDE |
| SEAT | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM ERGON | SM ENDURO SADDLE |
| BRAKES | SHIMANO SLX 4 PISTON | SRAM CODE R | SRAM CODE RSC | SRAM CODE RSC | SRAM CODE RSC |
| DERAILLEUR | SHIMANO SLX | SRAM GX EAGLE | SRAM X01 EAGLE | SRAM XX1 EAGLE AXS | SRAM XX1 EAGLE AXS |
| CASSETTE | SHIMANO SLX 10-51 | SRAM GX EAGLE 1275 10-52 | SRAM GX EAGLE 1275 10-52 | SRAM X01 EAGLE 1295 10-52 SRAM | XX1 EAGLE 1299 10-52 |
| CHAIN | SHIMANO SLX | SRAM GX EAGLE | SRAM GX EAGLE | SRAM GX EAGLE | SRAM XX1 EAGLE |
| SHIFTER | SHIMANO XT | SRAM GX EAGLE | SRAM GX EAGLE | SRAM EAGLE AXS | SRAM EAGLE AXS |
| POST | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM | FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM | FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM | FOX TRANSFER FACTORY 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM |
| UPGRADES | FACTORY SUSPENSION | FACTORY SUSPENSION | DT SWISS EXC 1501 30MM CARBON | DT SWISS EXC 1501 30MM CARBON | DT SWISS EXC 1501 30MM CARBON |
Geometry
| 170MM FORK | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| SEAT TUBE LENGTH | 365 | 400 | 440 | 470 | 485 |
| EFF. TOP TUBE LENGTH | 571 | 602 | 624 | 651 | 670 |
| HEAD TUBE ANGLE | 64 | 64 | 64 | 64 | 64 |
| EFF. SEATTUBE ANGLE | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
| ACTUAL SEAT TUBE ANGLE | 72.1 | 72.6 | 72.7 | 73.1 | 73.6 |
| CHAINSTAY LENGTH | 437 | 439 | 441 | 443 | 445 |
| WHEELBASE | 1211 | 1246 | 1270 | 1302 | 1329 |
| ESTIMATED BB HEIGHT | 353 | 353 | 353 | 353 | 353 |
| STANDOVER | 735 | 744 | 750 | 756 | 757 |
| HEADTUBE LENGTH | 95 | 101 | 107 | 118 | 140 |
| FORK (AXLE TO CROWN) | 588 | 588 | 588 | 588 | 588 |
| FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| STACK | 615 | 620 | 625 | 635 | 655 |
| REACH | 435 | 465 | 485 | 510 | 525 |
| FRONT CENTER | 774 | 807 | 829 | 859 | 884 |
| VERTICAL FORK TRAVEL | 153 | 153 | 153 | 153 | 153 |
Buy the 2023 Yeti SB160 in Scottsdale, AZ
We have the new 2023 Yeti SB160 in stock now at Airpark Bike Co. Check it out today at our shop. We’ll help you find the best build for your lifestyle. Then you can ride and compete all over the world! Our low prices will help you save hundreds, even thousands, on whatever you buy. The Yeti fun starts here!
