The 2025 Yeti SB135: Full Details & Specs

Dart. Weave. Drift.

The 2025 Yeti SB135 is a trail bike with a mean streak. It’s light, tough, and ready to cover a lot of ground, but it’s not here to just spin easy laps and behave itself. Depending on the build, it can lean more quick and trail-friendly or push further into all-mountain territory. Either way, it makes a strong case for being your one-bike quiver.

With 135mm out back and mostly 150mm up front, the SB135 sits right where a lot of riders want to be. Not some razor-thin race bike. Not a mini downhill sled either. It’s for riders who want to have fun on everyday trails, pedal big miles without dragging a tank around, and still point it into rough descents without second-guessing the bike underneath them. It climbs well, stays composed when speeds pick up, and feels bigger and calmer than the travel numbers suggest.

The carbon-fiber frame has that hard-to-argue-with mix of low weight and real strength. The 65.4° head tube angle is nice and slack for a 135mm bike, which helps it stay calm when the trail tips down and speeds start climbing. The 77° effective seat tube angle goes the other direction, putting you in a strong seated position for long climbs and punchy grunts alike.

Sizing and Geometry

Sizes runs from XS to XL. Yeti didn’t just stretch the same bike and call it done. The chainstay length grows with frame size from 429mm to 437mm, while the reach stretches from 400mm on the XS to 504mm on the XL. The fine-tuned sizing gives the SB135 a roomy, centered feel no matter which size you’re on. The XS and S frames, covering heights from 4'10" to 5'7", also get their own layout to improve fit and standover, which is the kind of detail that makes all the difference.

Suspension

Yeti’s updated Switch Infinity suspension does a lot of heavy lifting behind the scenes when the trail gets rough. The upgraded translating pivot setup improves durability, sensitivity, and strength at the same time. On dirt, that means good small-bump traction, a supportive mid-stroke that keeps the bike from sinking into its travel, and better bottom-out control when you decide to challenge yourself and push your limits.

The Lunch Ride build turns the SB135 up a notch with a beefier fork, stronger brakes, and a piggyback shock that gives it more backbone when the trail gets steep and fast. The standard builds don’t come up short either, with SRAM drivetrains and Fox suspension across the board.

What It's For

Fast trail rides, technical singletrack, daily mountain biking, backcountry missions, and having fun wherever you go.

What It's Not For

Pure XC racing, marathon efficiency, or full-time bike park riding, and enduro racing. But you probably already knew that. It’s also not built specifically for flat, flowy trails, though it won’t hold you back on them either. If most of your riding is mellow but you want the freedom to chase rougher terrain whenever the mood hits or you have a day off, the SB135 can still be a great choice.

Shop Inventory

Yeti SB135 Trail Bikes Yeti SB140 Yeti Cycles

Available Colors

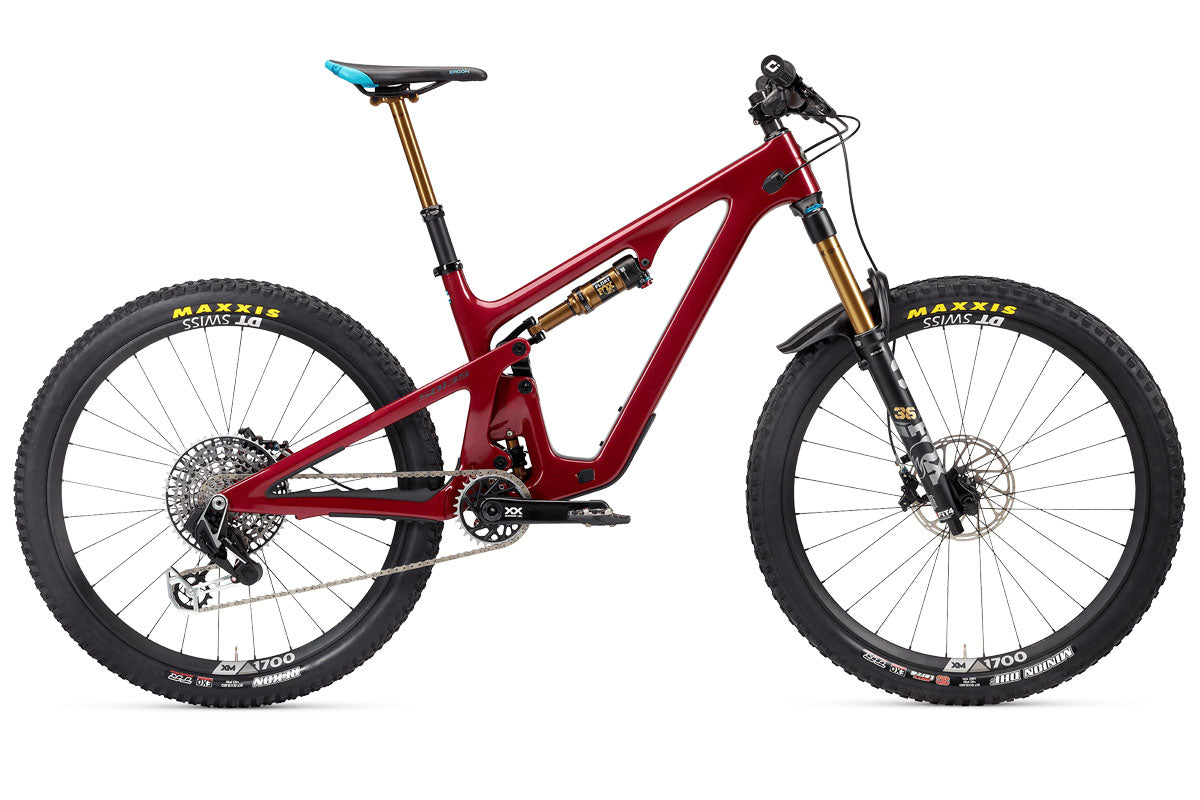

2025 Yeti SB135 in Cherry

2025 Yeti SB135 in Rhino

2025 Yeti SB135 in Turquoise

Specifications

BUILD KIT T4 XX TRANSMISSION T2 LR C2 C2 FRAME ONLY
MSRP $10,000 $7,400 $6,200 $6,000 $4,300
Details TURQ Carbon Frame, 150mm Fox Factory 36 Fit4 and Float, SRAM XX T-Type and G2 Ultimate Brakes TURQ Carbon Frame, 150mm Fox Factory 36 Fit4 and Float, SRAM X01 Eagle and G2 RSC Brakes C/Series Carbon Frame, 160mm Fox Performance 36 and Float X, SRAM GX Eagle and Code R Brakes C/Series Carbon Frame, 150mm Fox Performance 36 and Float, SRAM GX Eagle and G2 R Brakes TURQ series carbon, Fox Factory Float
Frame TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 36 FIT4/150MM FOX FACTORY 36 FIT4/150MM FOX PERFORMANCE 36/160MMUpgradable FOX PERFORMANCE 36/150MMUpgradable
Material TURQ SERIES TURQ SERIES C/SERIES C/SERIES TURQ SERIES
Weight 29.15 29.39 32.56 31.02 7.09
Travel 135MM (5.3"") 135MM (5.3"") 135MM (5.3"") 135MM (5.3"") 135MM (5.3"")
Rear Shock FOX FACTORY FLOAT FOX FACTORY FLOAT FOX PERFORMANCE FLOAT X (Upgradable) FOX PERFORMANCE FLOAT (Upgradable) FOX FACTORY FLOAT
Wheelset RACEFACE ARC OFFSET 30MM/DT SWISS 350 (Upgradable) RACEFACE ARC OFFSET 30MM/DT SWISS 350 (Upgradable) RACEFACE ARC OFFSET 30MM/DT SWISS 350 DT SWISS M1900 30MM
Rear Der SRAM XX EAGLE AXS TRANSMISSION SRAM X01 EAGLE SRAM GX EAGLE SRAM GX EAGLE
Shift SRAM AXS POD CONTROLLER SRAM X01 EAGLE SRAM GX EAGLE SRAM GX EAGLE
Crank SRAM XX EAGLE TRANSMISSION 30T 170MM SRAM X1 EAGLE CARBON 30T 170MM SRAM GX EAGLE 30T 170MM SRAM GX EAGLE 30T 170MM
BB SRAM DUB BSA 73 SRAM DUB BSA 73 SRAM DUB BSA 73 SRAM DUB BSA 73
Cassette SRAM XX EAGLE TRANSMISSION 10-52 SRAM X01 EAGLE 1295 10-52 SRAM GX EAGLE 1275 10-52 SRAM GX EAGLE 1275 10-52
Chain SRAM XX EAGLE TRANSMISSION FLATTOP SRAM GX EAGLE SRAM GX EAGLE SRAM GX EAGLE
Brakes SRAM G2 ULTIMATE SRAM G2 RSC SRAM CODE R SRAM G2 R
Rotors SRAM CENTERLINE 180/SRAM CENTERLINE 180 SRAM CENTERLINE 180/SRAM CENTERLINE 180 SRAM CENTERLINE 200/SRAM CENTERLINE 200 SRAM CENTERLINE 180/SRAM CENTERLINE 180
Post FOX TRANSFER FACTORY 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XL: 200MM FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XL: 200MM ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XL: 210MM ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XL: 210MM
Front Tire MAXXIS MINION DHF 2.6 EXO MAXXIS MINION DHF 2.6 EXO MAXXIS ASSEGAI 2.5 EXO+ MAXXIS MINION DHF 2.6 EXO
Rear Tire MAXXIS REKON 2.6 EXO MAXXIS REKON 2.6 EXO MAXXIS MINION DHR II 2.4 DD MAXXIS REKON 2.6 EXO
Headset CANE CREEK 110 INTEGRATED CANE CREEK 40 INTEGRATED CANE CREEK 40 INTEGRATED CANE CREEK 40 INTEGRATED
Bar YETI CARBON 35X760MM YETI CARBON 35X760MM BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM
Stem BURGTEC ENDURO MK3 CNC 35X50MM BURGTEC ENDURO MK3 35X50MM BURGTEC ENDURO MK3 35X50MM BURGTEC ENDURO MK3 35X50MM
Grips ODI ELITE PRO ODI ELITE PRO ODI ELITE PRO ODI ELITE PRO
Seat SILVERADO CUSTOM SILVERADO CUSTOM SILVERADO CUSTOM SILVERADO CUSTOM

Highlighted Features of the 2025 Yeti SB135

This section doesn’t currently include any content. Add content to this section using the sidebar.

Geometry Details by Size

SIZE XS SM MD LG XL
SEAT TUBE LENGTH 345 365 400 440 470
TOPTUBE LENGTH 534 566 598 620 647
HEADTUBE ANGLE 65.5 65.4 65.4 65.4 65.4
EFF. SEAT TUBE ANGLE 77 77 77 77 76.9
ACTUAL SEAT TUBE ANGLE 72.1 72.4 72 72.1 72.3
CHAINSTAY LENGTH 429 431 433 435 437
WHEELBASE 1128 1164 1199 1225 1257
ESTIMATED BB HEIGHT 337 337 337 337 337
STANDOVER 675 678 714 718 722
HEADTUBE LENGTH 92 101 107 118 129
AXLE TO CROWN 548 548 548 548 548
OFFSET 37 37 37 37 37
STACK 583 592 597 606 616
REACH 400 430 460 479 504
FRONT CENTER 699 733 766 790 820
Vertical Fork Travel 145 145 145 145 145

Frequently Asked Questions

2025 Yeti SB135

Yes, M-XL size SB135s are designed to be compatible with both air and coil-sprung shocks. Sizes XS and small are not compatible with piggy back style shocks due to limited clearance in the front triangle.

The SB135 was designed around a 55mm Boost chainline. Depending on the crank and chain ring configuration you can run other chainlines but you will have to do a clearance check first. Minimum clearance from the chainring teeth to the chainstay is 3.5mm.

The SB135 is designed to work exclusively with SRAM's Universal Derailleur Hanger at 12x148mm spacing.This axle has a thread pitch 12x1.0 and a length of 172mm. Note that this axle is only compatible with frames specifically designed with the Universal Derailleur Hanger.

Lifetime Manufacturer's Warranty.

SWITCH INFINITY utilizes a patented translating pivot that automatically switches direction as the bike moves through its travel. This provides excellent anti-squat characteristics for superior pedaling performance and ideal suspension characteristics as it gets deeper into the travel. Inside are a pair of greased bushings that slide up and down on two Kashima coated rails – it's not an extra shock that needs to be filled with air. Just keep it greased and wiped clean per our maintenance recommendations below.

Any authorized Yeti dealer.
