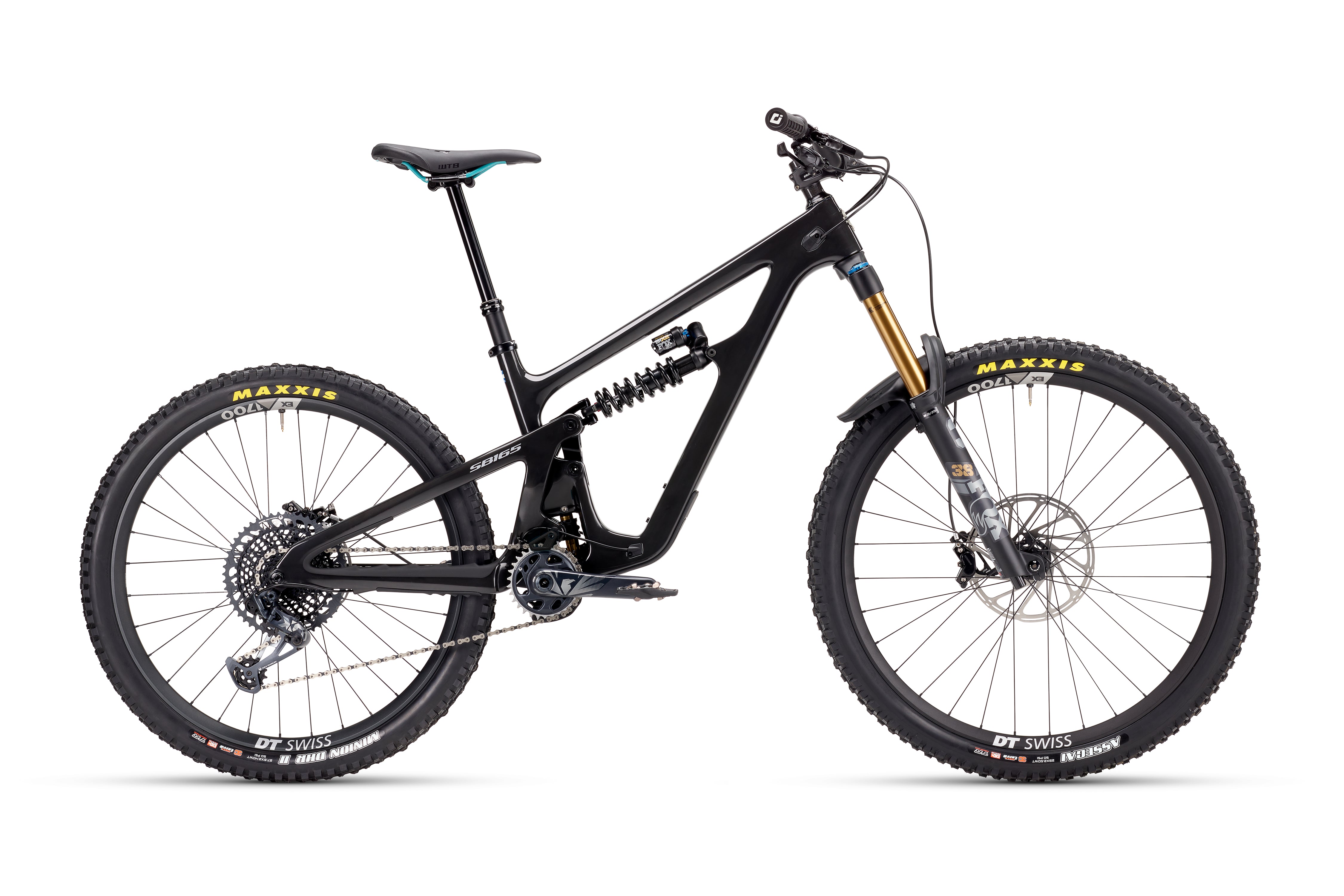

The 2025 Yeti SB165: Full Details & Specs
You ask. It gives.
The 2025 Yeti SB165 is a designed to take you from smashing park laps to backcountry big mountain days. It's an enduro and downhill biker for those who refuse to be limited by their equipment.
The SB165 runs Yeti’s latest Switch Infinity translating-pivot suspension design, paired with custom coil kinematics designed to handle big features on fast and steep trails. It's durable, strong, and did we mention extremely good across the board. It stays active over small trail chatter, doesn’t wallow when you start throwing on steam, and has the bottom-out support you need for landing big jumps.
A TURQ Series carbon fiber frame keeps things light without giving up the strength a downhill bike demands. Each frame size has its own specific carbon layup so you'll get optimal torsional stiffness no matter what size you ride. The refined main frame and swingarm silhouette increase impact and ground clearance, as well as overall stiffness.
The SB165 has an outstanding progressive leverage rate that delivers top performance when you're slashing turns, pumping terrain, or really loading the bike up. It's equipped with a FOX DHX2 Factory rear shock and a FOX FLOAT 38 Factory fork, both of which are tuned to maximize the performance of the Switch Infinity system.
The compact Switch Infinity case boosts frame stiffness, reduces weight, and increases ground clearance, while also leaving more room for hydration.
If you want a bike you can trust when the trail turns rough, the SB165 is designed for you.
Shop Inventory
Available Colors
2025 Yeti SB165 in Raw Gloss
2025 Yeti SB165 in Spruce Gloss
Specifications
| Build Kit | T3 X0 TRANSMISSION | T2 | C3 GX TRANSMISSION | C2 | FRAME ONLY |
| MSRP | $9,200 | $7,900 | $7,300 | $6,300 | $4,800 |
| Details | TURQ Carbon Frame, 170mm Fox Factory 38 Grip2 and DHX2, SRAM X0 T-Type and Code RSC Brakes | TURQ Carbon Frame, 170mm Fox Factory 38 Grip2 and DHX2, SRAM X01 Eagle and Code RSC Brakes | C/Series Carbon Frame, 170mm Fox Performance 38 and Factory DHX2, SRAM GX T-Type and Code R Brakes | C/Series Carbon Frame, 170mm Fox Performance 38 and Factory DHX2, SRAM GX Eagle and Code R Brakes | TURQ Series Carbon Frame, Fox Factory DHX2 |
| Frame | TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, universal derailleur hanger (UDH) and axle. | TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, universal derailleur hanger (UDH) and axle. | C/Series carbon fiber frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, universal derailleur hanger (UDH) and axle. | C/Series carbon fiber frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, universal derailleur hanger (UDH) and axle. | TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, universal derailleur hanger (UDH) and axle. |
| Fork | FOX FACTORY 38 GRIP2/170MM | FOX FACTORY 38 GRIP2/170MM | FOX PERFORMANCE 38/170MMUpgradable | FOX PERFORMANCE 38/170MMUpgradable | |
| Material | TURQ SERIES | TURQ SERIES | C/SERIES | C/SERIES | TURQ SERIES |
| Weight | 34.32 | 34.01 | 34.63 | 34.54 | 8.31 |
| Travel | 165MM (6.5"") | 165MM (6.5"") | 165MM (6.5"") | 165MM (6.5"") | 165MM (6.5"") |
| Rear Shock | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# |
| Wheelset | DT SWISS CUSTOM EX1700 30MMUpgradable | DT SWISS CUSTOM EX1700 30MMUpgradable | DT SWISS E1900 30MM | DT SWISS E1900 30MM | |
| Rear Der | SRAM X0 EAGLE AXS TRANSMISSION | SRAM X01 EAGLE | SRAM GX EAGLE AXS TRANSMISSION | SRAM GX EAGLE | |
| Shift | SRAM AXS POD CONTROLLER | SRAM X01 EAGLE | SRAM AXS POD CONTROLLER | SRAM GX EAGLE | |
| Crank | SRAM X0 EAGLE TRANSMISSION 30T 170MM | SRAM X1 EAGLE CARBON 30T 170MM | SRAM GX EAGLE TRANSMISSION 30T 170MM | SRAM GX EAGLE 30T 170MM | |
| BB | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | |
| Cassette | SRAM X0 EAGLE TRANSMISSION 10-52 | SRAM X01 EAGLE 1295 10-52 | SRAM GX EAGLE TRANSMISSION 10-52 | SRAM GX EAGLE 1275 10-52 | |
| Chain | SRAM X0 EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE | SRAM GX EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE | |
| Brakes | SRAM CODE RSC | SRAM CODE RSC | SRAM CODE R | SRAM CODE R | |
| Rotors | SRAM CENTERLINE 200/SRAM CENTERLINE 200 | SRAM CENTERLINE 200/SRAM CENTERLINE 200 | SRAM CENTERLINE 200/SRAM CENTERLINE 200 | SRAM CENTERLINE 200/SRAM CENTERLINE 200 | |
| Post | FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XL: 200MM | FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XL: 200MM | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XL: 210MM | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XL: 210MM | |
| Front Tire | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ | MAXXIS ASSEGAI 2.5 EXO+ | |
| Rear Tire | MAXXIS MINION DHR II 2.4 DD | MAXXIS MINION DHR II 2.4 DD | MAXXIS MINION DHR II 2.4 DD | MAXXIS MINION DHR II 2.4 DD | |
| Headset | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | |
| Bar | YETI CARBON 35X800MM | YETI CARBON 35X800MM | BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM 30MM RISE | BURGTEC RIDE WIDE ALLOY ENDURO 35X800MM 30MM RISE | |
| Stem | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | |
| Grips | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | |
| Seat | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | |
| Bash Guard | MRP AMG SL BASH GUIDE | MRP AMG SL BASH GUIDE | MRP AMG SL BASH GUIDE | MRP AMG SL BASH GUIDE |
Highlighted Features of the 2025 Yeti SB165
Geometry Details by Size
| SIZE | SM | MD | LG | XL |
| SEAT TUBE LENGTH | 365 | 400 | 440 | 470 |
| EFFECTIVE TOPTUBE LENGTH | 573 | 604 | 625 | 653 |
| HEADTUBE ANGLE | 63.5 | 63.5 | 63.5 | 63.5 |
| EFF. SEAT TUBE ANGLE | 76.8 | 76.9 | 76.9 | 76.9 |
| ACTUAL SEAT TUBE ANGLE | 71.5 | 72 | 72.1 | 72.6 |
| CHAINSTAY LENGTH | 433 | 435 | 437 | 439 |
| WHEELBASE | 1207 | 1242 | 1266 | 1298 |
| ESTIMATED BB HEIGHT | 345 | 345 | 345 | 345 |
| STANDOVER | 730 | 738 | 744 | 750 |
| HEADTUBE LENGTH | 95 | 101 | 107 | 118 |
| FORK AXLE TO CROWN | 588 | 588 | 588 | 588 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| STACK | 620 | 625 | 630 | 640 |
| REACH | 430 | 460 | 480 | 505 |
| FRONT CENTER | 774 | 807 | 829 | 859 |
| VERTICAL FORK TRAVEL | 152 | 152 | 152 | 152 |
Frequently Asked Questions
2025 Yeti SB165
Yes, the SB165 is designed to be compatible with both air and coil-sprung shocks.
This is mostly defined by your inseam. You can run any travel as long as you are above the minimum insert mark and you are not so low your tire rubs on your saddle or your dropper bottoms out in the frame. Your local Yeti dealer can help you sort this out. We run 150mm drop on SM frames, 175mm drop on MD and a 200mm drop on LG-XL.
No, the SB165 was not designed to accommodate a 29" rear wheel.
