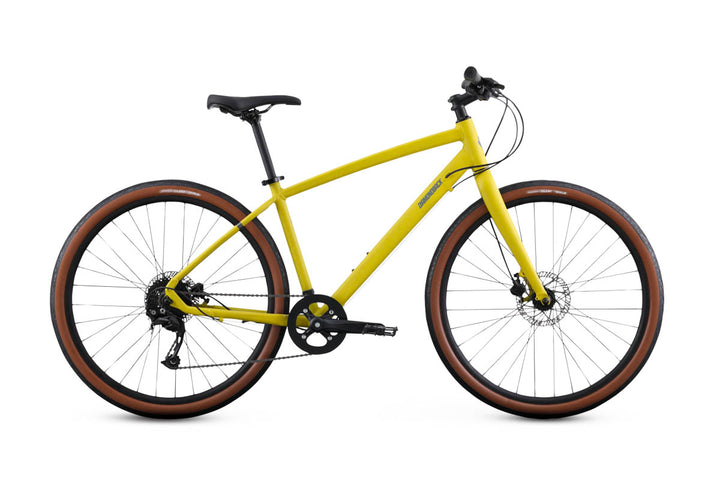

2022 Diamondback Division 2
Shimano Alivio M3100-SGS
In-store pickup only. Pick up at our Scottsdale or Phoenix stores.
×
Alert me if this item is restocked.
We often restock popular items or they may be returned by the other customers.
2022 Diamondback Division 2
Alert me if this item is restocked.
We often restock popular items or they may be returned by the other customers.
We have cancelled your request.
2022 Diamondback Division 2
$925.00
$740.00
Key Features
- Wheel Size: 27.5"
- Frame Material: Aluminum
Specs
- Diamondback AL-6061 Heat Treated Aluminum Frame
- Shimano Alivio 9-speed drivetrain
- Diamondback Aluminum blade fork
- Aluminum DDM-5 wheelset
- Tektro Disc brakes
- Vee Tire Co. Zilent 650x47c front tire
- Vee Tire Co. Zilent 650x47c rear tire
- Urban warrior Saddle
Product Identifiers
- Barcode: 25379300
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| FRAME SIZE | SM 5'4" - 5'7" | MD 5'7" - 5'10" | LG 5'10" - 6'1" | XL/21 6'1" - 6'4" |
|---|---|---|---|---|
| Bike Stand Over Height | 694.0 mm | 737.0 mm | 778.0 mm | 818.0 mm |
| Bike Seat Tube Length | 380.0 mm | 430.0 mm | 480.0 mm | 530.0 mm |
| Bike Top Tube Length | 565.0 mm | 595.0 mm | 610.0 mm | 625.0 mm |
| Bike Head Tube Length | 120.0 mm | 145.0 mm | 170.0 mm | 195.0 mm |
| Bike Head Angle | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° |
| Bike Seat Angle | 73.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
| Bike Wheel Base | 1043.0 mm | 1074.0 mm | 1090.0 mm | 1107.0 mm |
| Bike Chain Stay Length | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm |
| Bike Fork Offset | 48.0 mm | 48.0 mm | 48.0 mm | 48.0 mm |
| Bike Bb Height | 282.0 mm | 282.0 mm | 282.0 mm | 282.0 mm |
| Bike Bb Drop | 67.5 mm | 67.5 mm | 67.5 mm | 67.5 mm |
| Bike Stem Length | 70.0 mm | 70.0 mm | 80.0 mm | 80.0 mm |
| Bike Handlebar Width | 680.0 mm | 680.0 mm | 700.0 mm | 700.0 mm |
| Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
| Bike Seat Post Length | 350.0 mm | 350.0 mm | 350.0 mm | 350.0 mm |
| Bike Stack | 550.0 mm | 573.0 mm | 597.0 mm | 620.0 mm |
| Bike Reach | 396.0 mm | 419.0 mm | 427.0 mm | 435.0 mm |
| Bike Fork Length | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm |
Detailed Specs By Build Kit
| FRAME | Custom Formed AL-6061 Heat Treated Aluminum 27.5 City Sport Geometry |
|---|---|
| FORK | Aluminum Blades, with Post Mount Disc |
| HEADSET | 1 1/8" Internal Cartridge Bearing |
| CRANKS | Aluminum Forged 3PC 104 BCD, 40t |
| BOTTOM BRACKET | Sealed Cartridge Bearing |
| FRONT DERAILLEUR | N/A |
| REAR DERAILLEUR | Shimano Alivio M3100-SGS Shadow |
| SHIFTER | Shimano Acera M3100 9-Speed Trigger Shifter, Right Side Only |
| COGSET | Shimano 9 Speed 11-34t Cassette |
| CHAIN | KMC 9sp |
| FRONT HUB | Aluminum Quick Release Disc, 32 Hole |
| REAR HUB | Aluminum Quick Release Disc, 32 Hole |
| SPOKES | 14g Stainless Steel with Brass Nipples |
| RIMS | Aluminum DDM-5, 32h, 27.5", 28mm Wide Double Wall |
| TIRES | Vee Tire Co. Zilent 650x47c, Wire Bead, 30 TPI |
| BRAKE LEVERS | Tektro HD-T275 |
| PEDALS | Aluminum Body, Chromoly Spindle |
| HANDLEBAR | Aluminum 31.8, 15mm Rise, 680mm Wide |
| GRIPS | ERGO Dual Density |
| STEM | 3D Forged Aluminum Alloy 35mm Bar Clamp |
| SEAT | Urban Warrior Saddle |
| SEATPOST | Aluminum Micro Adjust, 27.2 x 350/400mm |
| EXTRAS | Reflective Decals, Rack and Fender Mounts |
| BRAKES | Tektro HD-T275 Hydraulic Disc with 160mm Rotors |
