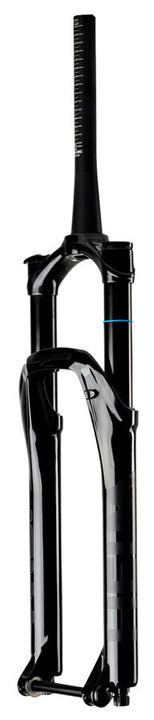

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK
$1,099.99
Free shipping on orders $50 and up Online
Scottsdale
Phoenix
Learn More About This Product
Cane Creek makes gear for riders who care about the details, like the legendary Thudbuster, four-way adjustable shocks and ultralight eeBrakes. Their clever components give you unique ways to tune your bike's performance and suspension.
Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss Black. The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.
- Compression and midvalve circuit offer increased support and control
- SKF oil seal head cartridge and wiper seals are low friction
- The redesigned air spring offers increased air volume for better traction and suppleness
- The threadless air seal head allows for easier travel change
- Damping features include: high speed compression low speed compression and low speed rebound
- Adjustment options include: high speed compression (10 positions) low speed compression (17 positions) Low speed rebound (10 positions) independent positive air spring independent negative air spring and an indexed travel system (8 positions)
- Double-Air spring system: high volume positive and negative air springs
- "D-Loc" 15mm bolt-on thru axle
Details
| Steerer Type | Tapered |
| Brake Type | Post Mount 180 |
| Negative Spring | Air |
| Travel (mm) | 160 |
| Offset | 44 |
| Axle to Crown Length | 573 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 65 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Gloss Black |
| Crown Race | 40 |
| Weight | 2080 |
| Wheel Size | 29" |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| Defined Color | Black |
| Positive Spring | Air |
| Stanchion Diameter | 35 |
| Steerer Tube Length (mm) | 265 |
Product Identifiers
- SKU: FK5556
- Barcode: 840226098906
- Manufacturer Part Number (MFPN/MPN): BAG0685
