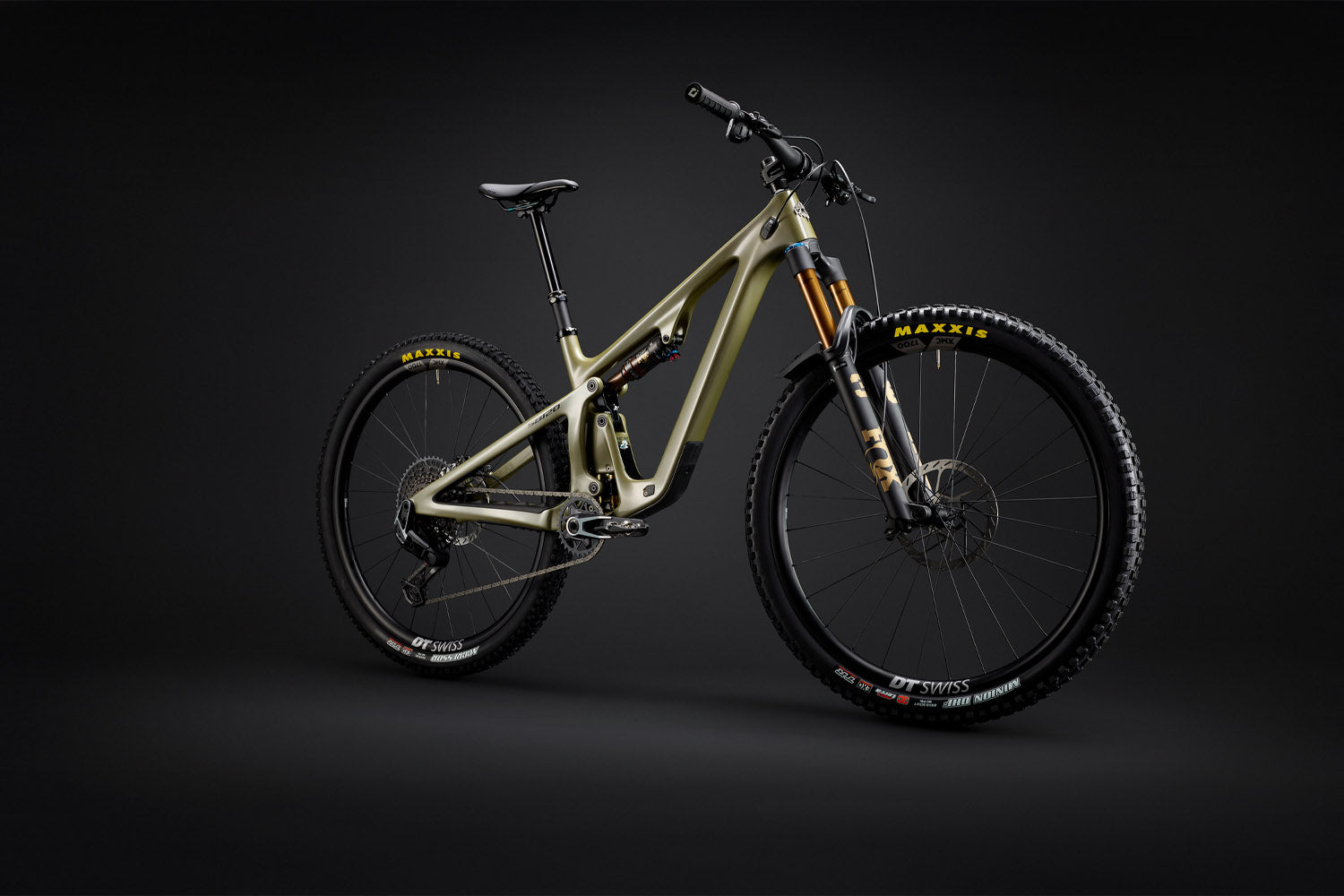

The 2026 Yeti SB120: Full Details & Specs

Cross-Country, Down-Country, Trail - Yes, Yes, and YES

The 2026 Yeti SB120 is built to redefine what a modern short-travel trail bike can be. It blends efficiency, control, and confidence into a platform that feels just as comfortable on long climbs as it does pushing the pace on descents.

The SB120 pedals with impressive efficiency, making it ideal for big days in the saddle. But it also has a planted and predictable feel when the trail gets rough. The suspension design keeps traction high and your fatigue low.

It's a modern and stable bike, yet it has quick, fun handling that makes every ride a dopamine trip. It's easy to place on the trail and seems to react to thoughts, which makes threading tight sections a dream.

Every build shares the same core platform, including a carbon frame, 120mm of rear travel, and Yeti’s refined Switch Infinity suspension. Higher-end builds focus on lighter weight, more advanced drivetrains, and the very best suspension components. More affordable builds are a fantastic choice and still have premium quality components across the board. There are no bad choices here, only a spectrum from "extremely good" to "absolute best".

Shop Inventory

Yeti SB120 Yeti Cycles Trail Bikes Cross-Country Bikes

Available Colors

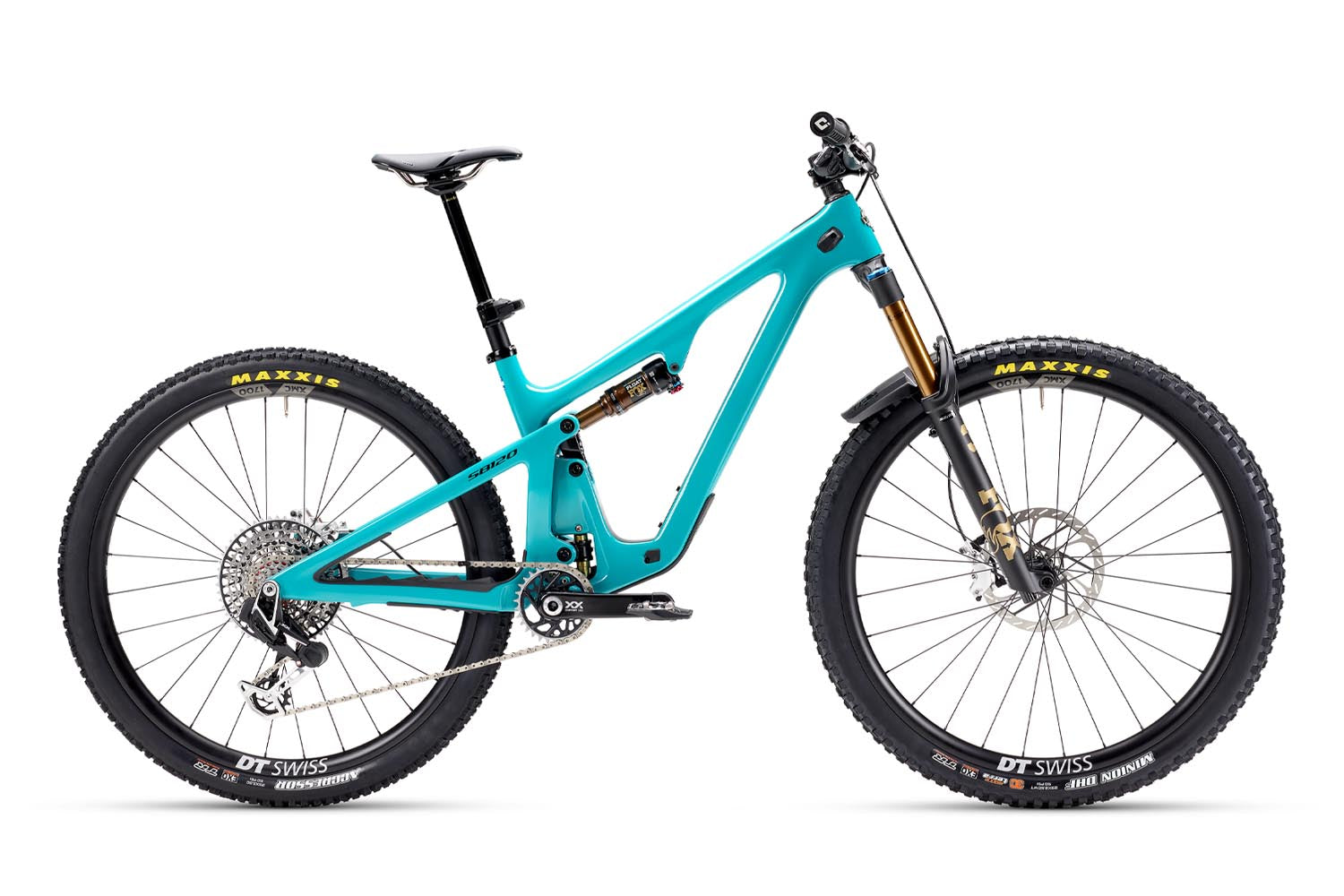

2026 SB120 T4 XX AXS Turquoise

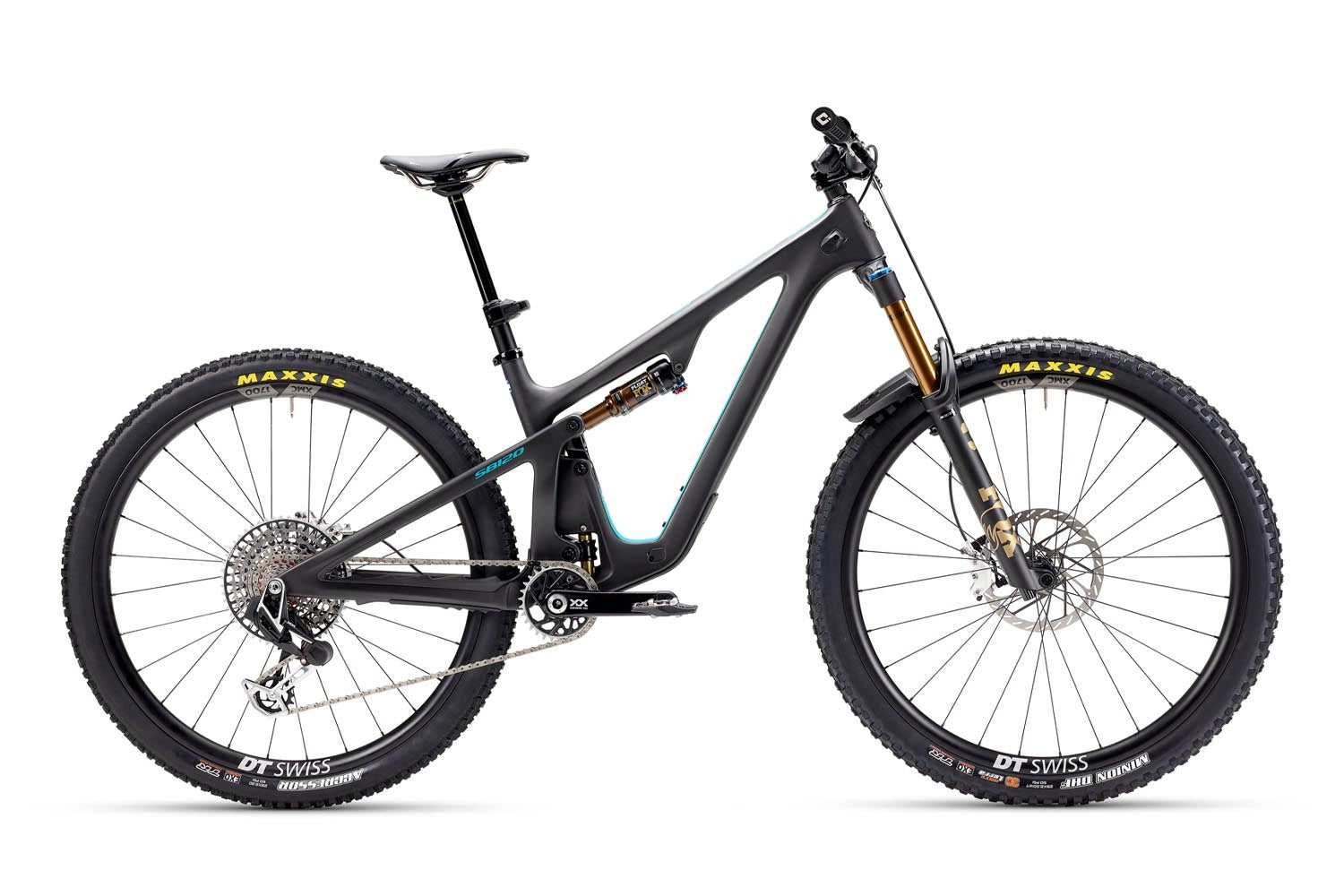

2026 SB120 T4 XX AXS Raw

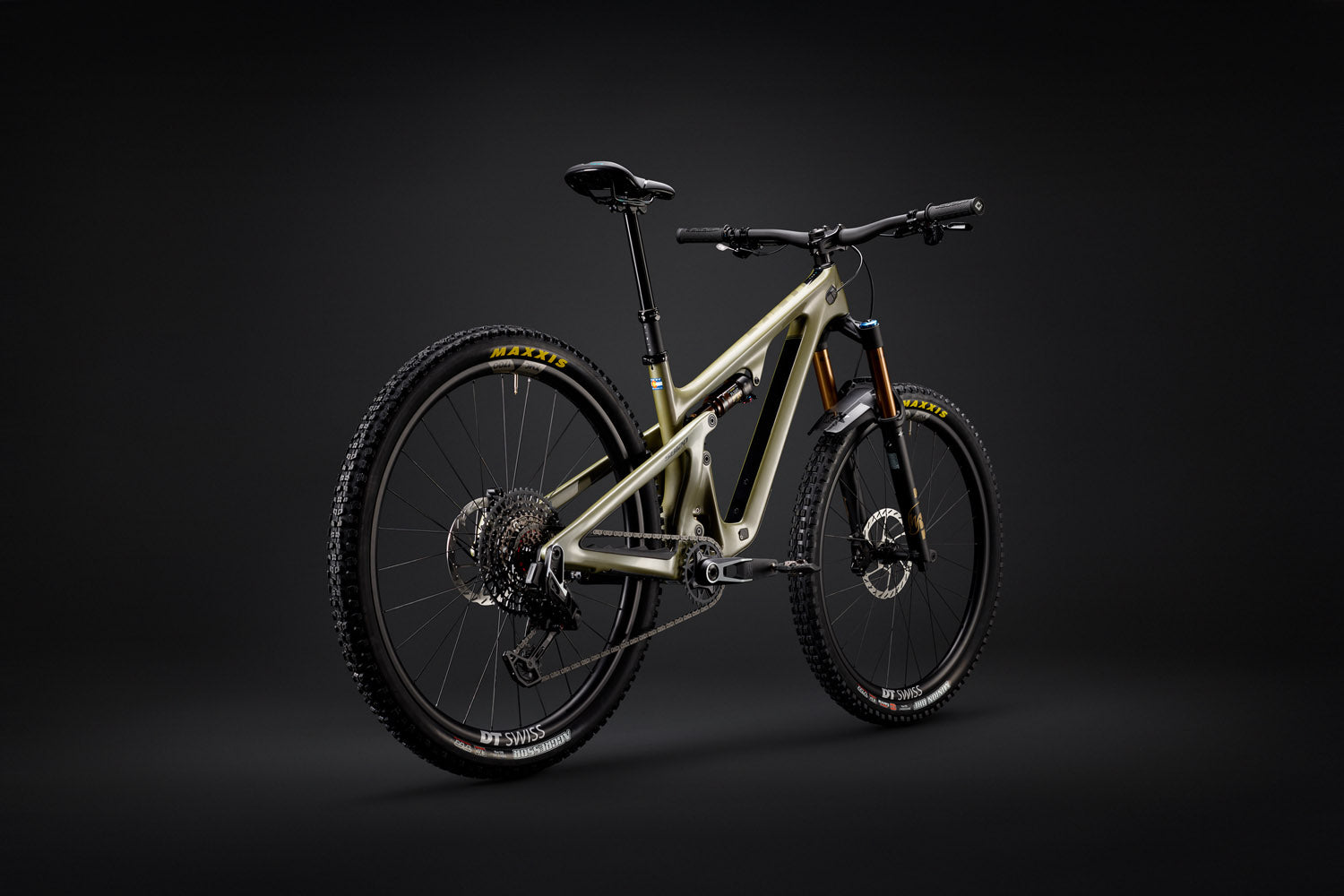

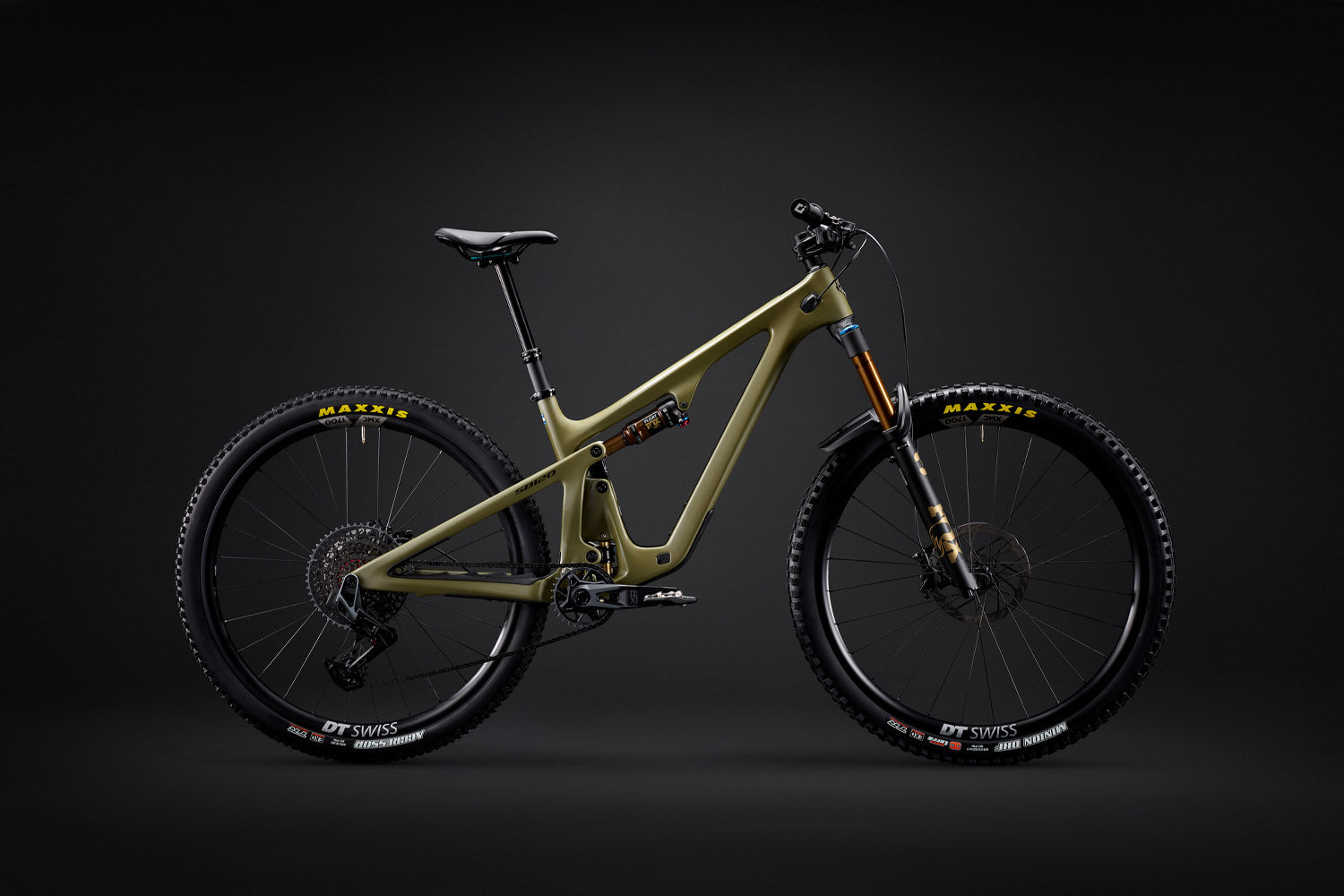

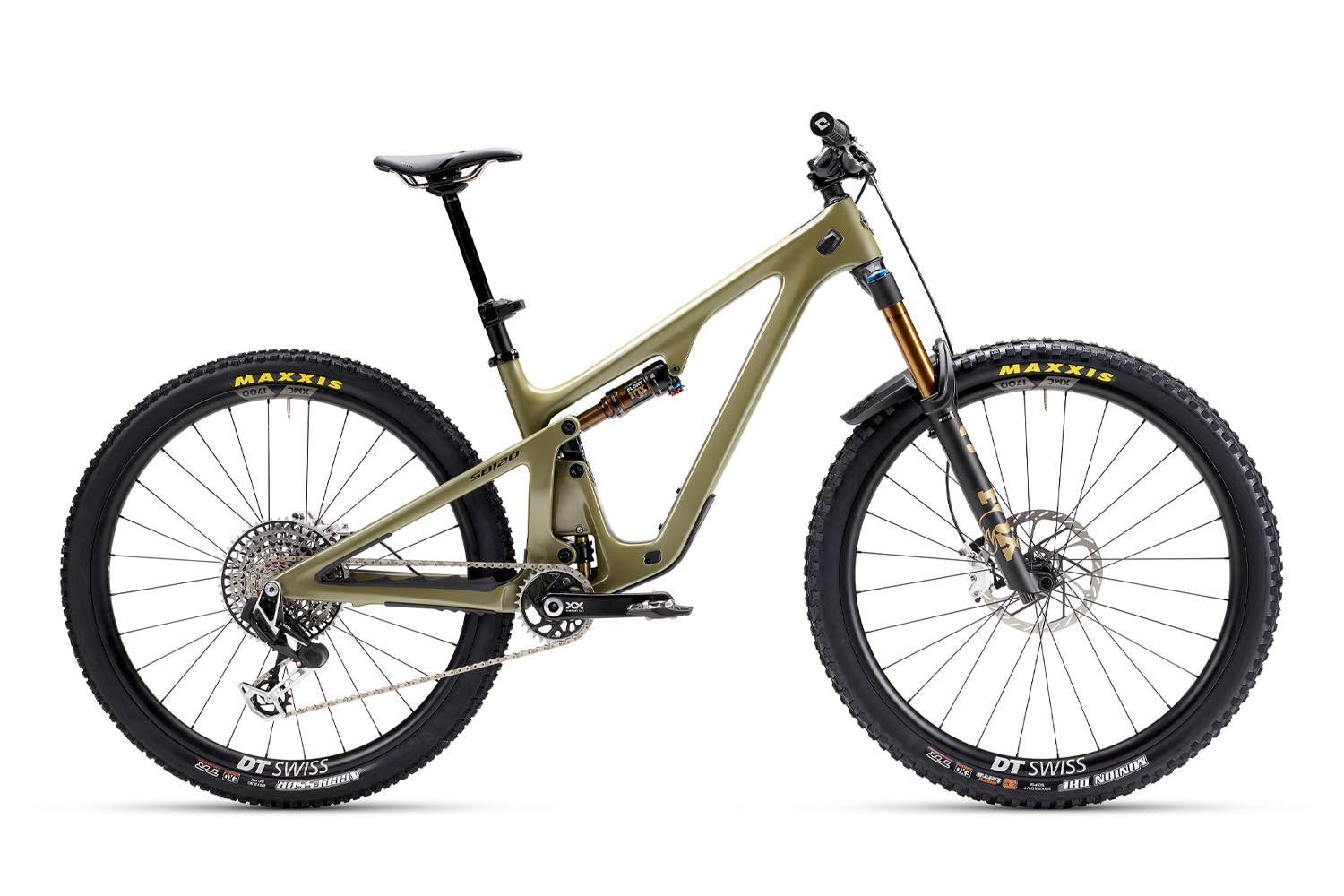

2026 SB120 T4 XX AXS Lichen

Specifications

Build Kit T4 XX AXS Transmission T3 X0 AXS Transmission T1 XT Di2 T2 X0/90 Transmission C3 GX AXS Transmission C2 90 Transmission Frame Only
MSRP $10,700 $9,000 $8,100 $7,700 $6,500 $6,000 $4,300
Details TURQ Carbon frame, 140mm Fox Factory 36 SL GRIP X2 and Float, SRAM XX AXS T-Type and Motive Ultimate brakes TURQ Carbon frame, 140mm Fox Factory 36 SL GRIP X2 and Float, SRAM X0 AXS T-Type and Motive Silver brakes TURQ Carbon frame, 140mm Fox Factory 36 SL GRIP X2 and Float, Shimano XT Di2 and XT brakes TURQ Carbon frame, 140mm Fox Factory 36 SL GRIP X2 and Float, SRAM X0/90 T-Type and Motive Bronze brakes C/Series carbon frame, 140mm Fox Performance 36 SL and Float, SRAM GX AXS T-Type and Motive Bronze brakes C/Series carbon frame, 140mm Fox Performance 36 SL and Float, SRAM Eagle 90 T-Type and Motive Bronze brakes TURQ Carbon frame, Fox Factory Float, available only at your local dealer
Frame TURQ Series carbon fiber frame, Factory Switch Infinity V2 suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle TURQ Series carbon fiber frame, Factory Switch Infinity V2 suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle TURQ Series carbon fiber frame, Factory Switch Infinity V2 suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle C/Series carbon fiber frame, Performance Switch Infinity V2 suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle C/Series carbon fiber frame, Switch Infinity suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle TURQ Series carbon fiber frame, Factory Switch Infinity V2 suspension technology, threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, Universal Derailleur Hanger (UDH), and axle
Fork Fox Factory 36 SL GRIP X2 140mm Fox Factory 36 SL GRIP X2 140mm Fox Factory 36 SL GRIP X2 140mm Fox Factory 36 SL GRIP X2 140mm Fox Performance 36 SL 140mm Fox Performance 36 SL 140mm
Material TURQ Series TURQ Series TURQ Series TURQ Series C/Series C/Series TURQ Series
Weight 28.53 28.92 29.80 29.61 29.83 29.99 6.66
Travel 120mm (4.7") 120mm (4.7") 120mm (4.7") 120mm (4.7") 120mm (4.7") 120mm (4.7") 120mm (4.7")
Rear Shock Fox Factory Float Fox Factory Float Fox Factory Float Fox Factory Float Fox Performance Float Fox Performance Float Fox Factory Float
Wheelset DT Swiss XMC1700 30mm Ratchet DT Swiss XMC1700 30mm Ratchet DT Swiss XM1700 30mm Ratchet DT Swiss XM1700 30mm Ratchet DT Swiss M1900 30mm LN DT Swiss M1900 30mm LN
Rear Derailleur SRAM XX Eagle AXS Transmission SRAM X0 Eagle AXS Transmission Shimano XT Di2 12-Speed SRAM Eagle 90 Transmission SRAM GX Eagle AXS Transmission SRAM Eagle 90 Transmission
Shifter SRAM AXS Pod Controller SRAM AXS Pod Controller Shimano XT Di2 SRAM Eagle 90 Transmission SRAM AXS Pod Controller SRAM Eagle 90 Transmission
Crank SRAM XX Eagle Transmission 30T 170mm SRAM X0 Eagle Transmission 30T 165mm Shimano XT 30T 165mm SRAM X0 Eagle Transmission 30T 165mm SRAM GX Eagle Transmission 30T 165mm SRAM Eagle 90 Transmission 30T 165mm
BB SRAM DUB BSA 73 SRAM DUB BSA 73 Shimano XT BB 73 SRAM DUB BSA 73 SRAM DUB BSA 73 SRAM DUB BSA 73
Cassette SRAM XX Eagle Transmission 10-52 SRAM X0 Eagle Transmission 10-52 Shimano XT 10-51 SRAM X0 Eagle Transmission 10-52 SRAM GX Eagle Transmission 10-52 SRAM GX Eagle Transmission 10-52
Chain SRAM XX Eagle Transmission Flattop SRAM X0 Eagle Transmission Flattop Shimano XT SRAM X0 Eagle Transmission Flattop SRAM GX Eagle Transmission Flattop SRAM GX Eagle Transmission Flattop
Brakes SRAM Motive Ultimate SRAM Motive Silver Shimano XT 4-Piston SRAM Motive Bronze SRAM Motive Bronze SRAM Motive Bronze
Rotors SRAM HS2 200 / SRAM HS2 180 SRAM HS2 200 / SRAM HS2 180 Shimano Freeza 203 / Shimano Freeza 180 SRAM HS2 200 / SRAM HS2 180 SRAM Centerline 200 / SRAM Centerline 180 SRAM Centerline 200 / SRAM Centerline 180
Post SRAM Reverb AXS / XS: 125mm, SM: 150mm, MD: 180mm, LG-XXL: 200mm Fox Transfer 31.6mm / XS: 125mm, SM: 150mm, MD: 175mm, LG-XXL: 200mm Fox Transfer 31.6mm / XS: 125mm, SM: 150mm, MD: 175mm, LG-XXL: 200mm Fox Transfer 31.6mm / XS: 125mm, SM: 150mm, MD: 175mm, LG-XXL: 200mm OneUp Dropper Post / XS-SM: 150mm, MD: 180mm, LG: 210mm, XL-XXL: 240mm OneUp Dropper Post / XS-SM: 150mm, MD: 180mm, LG: 210mm, XL-XXL: 240mm
Front Tire Maxxis Minion DHF 2.5 EXO Maxxis Minion DHF 2.5 EXO Maxxis Minion DHF 2.5 EXO Maxxis Minion DHF 2.5 EXO Maxxis Minion DHF 2.5 EXO Maxxis Minion DHF 2.5 EXO
Rear Tire Maxxis Aggressor 2.3 EXO Maxxis Aggressor 2.3 EXO Maxxis Aggressor 2.3 EXO Maxxis Aggressor 2.3 EXO Maxxis Aggressor 2.3 EXO Maxxis Aggressor 2.3 EXO
Headset Cane Creek 110 Integrated Cane Creek 40 Integrated Cane Creek 40 Integrated Cane Creek 40 Integrated Cane Creek 40 Integrated Cane Creek 40 Integrated
Bar Yeti Carbon 35x780mm Yeti Carbon 35x780mm Yeti Carbon 35x780mm Yeti Carbon 35x780mm Burgtec Ride Wide Alloy Enduro 35x780mm Burgtec Ride Wide Alloy Enduro 35x780mm
Stem Burgtec Enduro MK3 CNC 35x50mm Burgtec Enduro MK3 35x50mm Burgtec Enduro MK3 35x50mm Burgtec Enduro MK3 35x50mm Burgtec Enduro MK3 35x50mm Burgtec Enduro MK3 35x50mm
Grips ODI Elite Pro ODI Elite Pro ODI Elite Pro ODI Elite Pro ODI Elite Pro ODI Elite Pro
Seat WTB Solano SL Titanium WTB Solano Chromoly WTB Solano Chromoly WTB Solano Chromoly WTB Solano Chromoly WTB Solano Chromoly

As with any brand and model of bike, the specs listed above are subject to change without notice based on component availability. If there is a specific component you want to check on, reach out to us to discuss exactly what's in the box that we received from Yeti.

Highlighted Features of the 2026 Yeti SB120

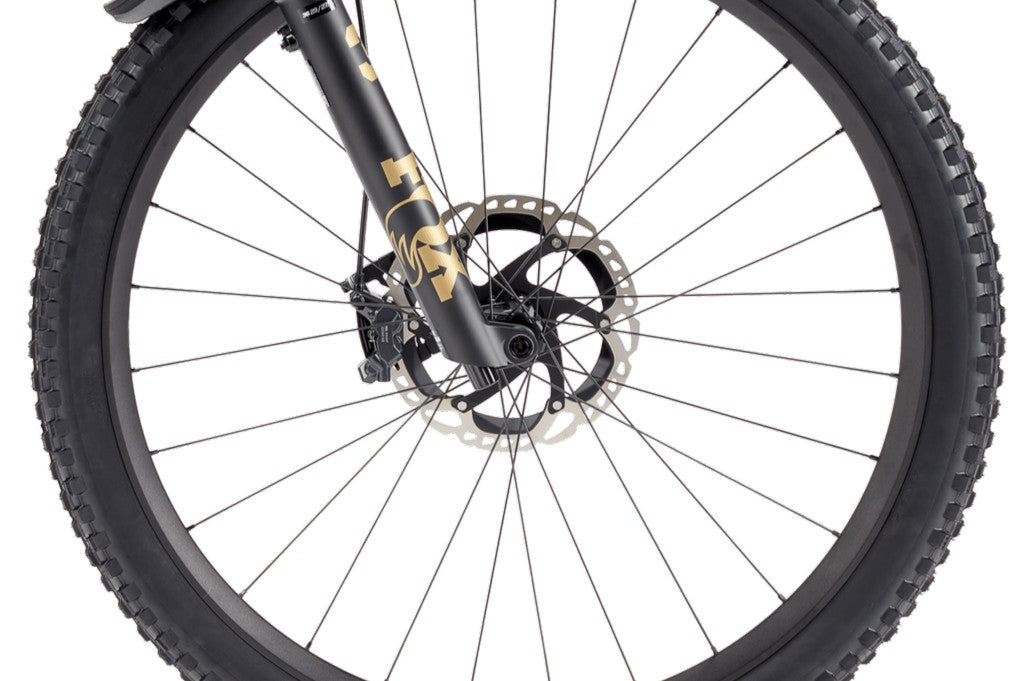

200/180mm Brake Rotors

Large brake rotors improve control and heat management.

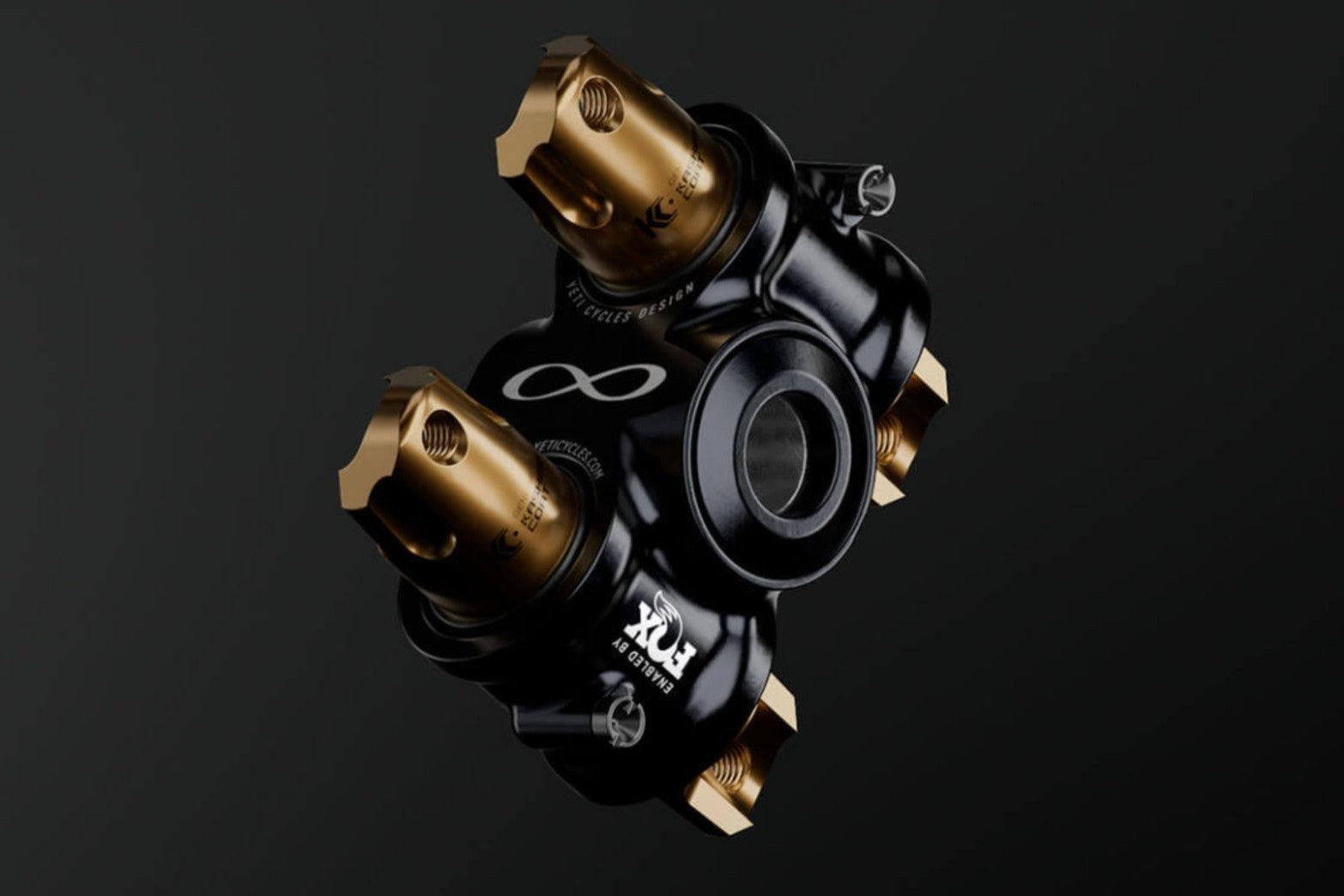

Switch Infinity v2.0 Suspension.

The next generation of translating pivot suspension design. Setting new expectations for longevity, sensitivity and strength.

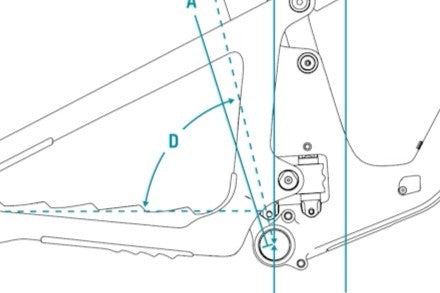

76.2 Degree Effective Seat Tube Angle

Helps keep your weight centered and makes the bike feel more efficient on steep uphills.

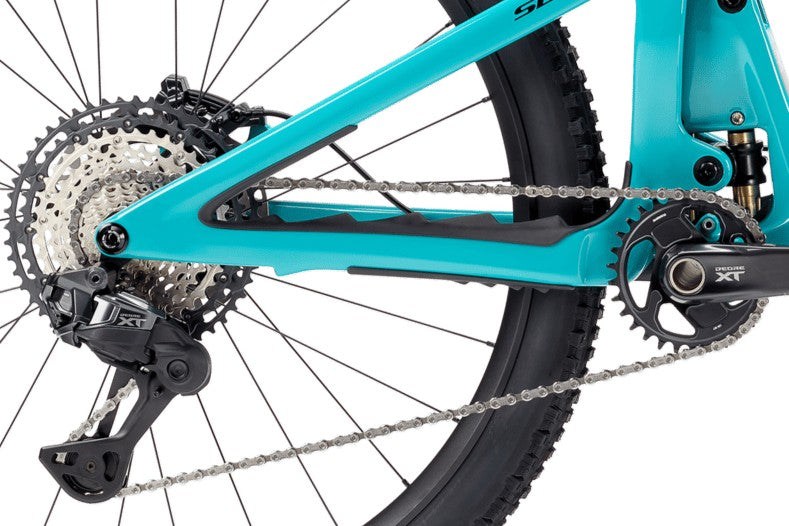

Size-Specific Chainstay Lengths

Important so handling remains balanced and natural no matter what size you ride.

Geometry Details by Size

Geometry XS SM MD LG XL XXL
Seat Tube Length 345 366 399 439 470 485
Effective Toptube Length 541 572 605 625 653 673
Headtube Angle 66.2° 66.2° 66.2° 66.2° 66.2° 66.2°
Effective Seat Tube Angle 76.1° 76.2° 76.2° 76.2° 76.2° 76.2°
Actual Seat Tube Angle 70.8° 71.2° 71.6° 72.0° 72.4° 72.9°
Chainstay Length 432 434 437 439 442 442
Wheelbase 1125 1161 1194 1219 1252 1278
Estimated BB Height 338 338 338 338 338 338
Standover 709 711 716 721 724 726
Headtube Length 91 99 104 114 124 147
Fork Axle to Crown 551 551 551 551 551 551
Fork Offset 43 43 43 43 43 43
Stack 607 612 617 627 638 658
Reach 391 422 452 472 498 511
Front Center 691 724 757 780 810 833
Vertical Fork Travel 127 127 127 127 127 127
The 2026 Yeti SB120 uses updated geometry to blend stability and agility. A 66.2° head angle keeps it calm on descents, while a 76.2° effective seat angle supports efficient climbing. Reach grows by size, and chainstays stretch slightly too, helping balance rider weight. The result is a trail bike that feels planted, quick, and confidently modern.

Size Guide

Size Rider Height
XS 4'10" – 5'1"
SM 5'1" – 5'7"
MD 5'5" – 5'11"
LG 5'10" – 6'3"
XL 6'1" – 6'7"
XXL 6'5" – 6'11"

Frequently Asked Questions

2026 Yeti SB120

TURQ Series bikes are built using Yeti’s highest-grade carbon fiber, delivering a refined blend of stiffness, durability, and compliance. The ride feel is smooth and solid, with a responsive, aggressive character that stands out on the trail. The Carbon Series uses a slightly adjusted carbon layup based on the TURQ platform. By changing materials and fine-tuning the construction, it offers a more accessible option without sacrificing the strength and stiffness that define the premium frame. The tradeoff is minimal, with the Carbon Series SB120 frame weighing only about 200 grams more.

The fully sealed Switch Infinity system is designed for durability and easy upkeep, featuring external grease ports that allow you to service the bushings and seals without disassembly. Yeti and Fox recommend lubricating the system about every 40 hours of riding to keep it performing at its best. It’s important not to over-grease and to stick to that interval for optimal function. Regularly wiping away dust and dirt will also help extend the life of the system. Maintenance supplies are readily available through your local dealer or online, and detailed service instructions can be found on Fox’s support page: http://www.ridefox.com/fox17/help.php?m=bike&id=465

The SB120 is designed to fit tires up to about 2.6 inches wide. There’s plenty of clearance built into the frame, but actual tire width can vary between brands and models, so fit may differ slightly depending on what you run.

The SB120 uses a threaded BSA 73mm bottom bracket and is designed to work with wide Q-factor cranks. It’s fully compatible with options from Shimano, SRAM, and Race Face, while other crank brands may require a quick fit check to ensure proper clearance.

The SB120 is built around SRAM’s Universal Derailleur Hanger (UDH) standard with 12x148mm spacing. It uses a 12x1.0 thread pitch axle measuring 172mm in length. This setup is only compatible with frames designed specifically for UDH.

The SB120 features an integrated 41mm/52mm tapered headset, with the bearings sitting directly inside the head tube. This design helps keep the front end lower, simplifies installation, and adds to the overall stiffness of the bike.

The Yeti SB120 uses a 36.4mm seat collar.
