2022 Niner RIP e9 3 Star
SRAM SX Eagle
Limited Lifetime Warranty
Shipped Fully Built
We ship bikes fully assembled in a very large bike box, so there’s very little setup required when it arrives. Bikes are set up in store by our expert mechanics prior to packaging for shipping.
How to Set Up Your Bike
Carefully open the box and remove the packaging. Install the front wheel and straighten the handlebar. You'll also need pedals unless you bought pedals with your bike. The suspension (if there is one) will be pre-tuned to your weight. You should be able to ride within a few minutes of opening the box.
Customize This Bike
Is there anything you want to change on this bike? We can customize the bike for you before shipping it out, just get in touch. That includes anything from basic changes like swapping out the handlebars or saddle, to complex makeovers like a drivetrain swap.
Not sure exactly what you need, or if it's worth it or even a good idea? Contact us and see what we think, we'll help you figure it out. We have deep experience working with and riding all the brands we sell, and we are here to help.
Customized bikes are non-refundable unless otherwise stated.
Buy it with

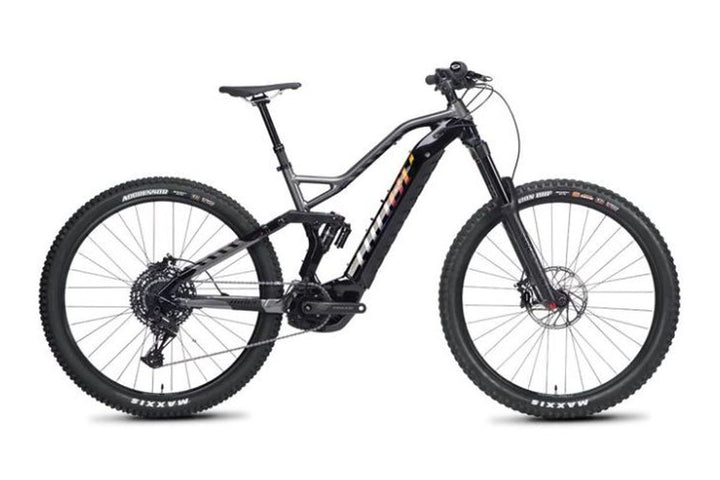

2022 Niner RIP e9 3 Star
Key Features
- Wheel Size: 29"
- Front Travel: 160mm
- Rear Travel: 150mm
- Frame Material: Aluminum
Specs
- Niner Hydroformed and welded 6061-t6 aluminum Frame
- Sram sx drivetrain
- Bosch gen4 Performance Line CX 20MPH Motor
- Bosch Powertube 625Wh Battery
- Rockshox Zeb R
- 160mm fork
- Fox Float X Performance Evol 2 Position
- 150mm shock
- Stans Flow Tubeless wheelset
- Sram Guide RE brakes
- Schwalbe Eddy Current EVO 2.4 front tire
- Schwalbe Addix Hans Dampf 2.35 rear tire
- Niner custom TR Saddle with CR-MO rails
Learn More About the 2022 Niner RIP e9 3 Star
The 2022 Niner Rip E9 3-Star is built for those who want a little extra help on tough mountain trails without compromising on performance or durability. The bike is built on a hydroformed 6061-T6 aluminum frame that strikes a strong, yet lightweight balance. The shaping technique adds stiffness exactly where the bike needs it most, and welded construction means it's tough enough to handle aggressive trail riding without worry.
The bike is equipped with SRAM SX drivetrain, tuned for e-bike power. It's built to handle the punch from the Bosch motor, giving you smooth and reliable gear changes whether you're grinding up steep climbs or cruising through rollers.
Speaking of power, the Rip E9 3-Star uses Bosch's Gen4 Performance Line CX motor. Known for smooth and consistent assistance, this motor helps you attack climbs and challenging terrain with less strain but plenty of control. The motor tucks neatly into the frame, keeping the bike looking clean and balanced.
You won't want to stop because of battery life either. The bike carries a Bosch Powertube 625Wh battery, housed inside the frame for a sleek look and better weight distribution. This high-capacity battery is ready for longer rides so you can explore more without constantly hunting for a charge.
Taming rough trails is easier thanks to the suspension setup. Up front sits a RockShox Zeb R fork with 160mm of travel. It smooths out bumps and impacts with adjustability that lets you dial in the feel to your liking. At the rear, a Fox Float X Performance Evol shock offers 150mm of travel and two position settings, keeping the ride balanced without sacrificing responsiveness.
The wheels come from Stans Flow Tubeless. They're built to withstand aggressive riding but are still light enough to keep you nimble. Tubeless compatibility means you can run lower tire pressures to boost grip and cut down on flats. Speaking of tires, the bike pairs a Schwalbe Eddy Current EVO 2.4 in the front with an Addix Hans Dampf 2.35 in the rear. The former excels at cornering, and the latter rolls fast while maintaining traction.
You'll also find a set of SRAM Guide RE hydraulic disc brakes. They offer strong, consistent braking and fine control when descending steep or technical sections.
Comfort hasn't been overlooked. The Niner custom TR saddle with CR-MO rails is shaped for longer rides, offering support and padding in all the right places so you can stay focused on the trail instead of your seat.
If you want a bike that handles technical terrain, assists when you need it, and won't hold back on components, the Rip E9 3-Star fits that bill. It's reliable, tough, and thoughtfully put together for electric mountain biking that's ready to explore.
Product Identifiers
- Barcode: 84022244
Product Identifiers
- Barcode: 46535396
Product Identifiers
- Barcode: 46568164
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
High
| S | M | LG | |
|---|---|---|---|
| TT LENGTH | 580 | 602 | 624 |
| SEAT TUBE LENGTH | 419 | 445 | 483 |
| CHAINSTAY LENGTH ACTUAL | 450 | 450 | 450 |
| HORIZONTAL CHAINSTAY | 449 | 449 | 449 |
| FRONT CENTER | 759 | 781 | 803 |
| WHEELBASE | 1208 | 1230 | 1252 |
| BB DROP | 28 | 28 | 28 |
| HEAD TUBE LENGTH | 110 | 115 | 120 |
| HEAD TUBE ANGLE | 65 | 65 | 65 |
| SEAT TUBE ANGLE | 76.6 | 76.6 | 76.6 |
| STANDOVER HEIGHT | 730 | 749 | 776 |
| REACH | 430 | 450 | 470 |
| STACK | 628 | 633 | 638 |
Low
| S | M | LG | |
|---|---|---|---|
| TT LENGTH | 582 | 604 | 626 |
| SEAT TUBE LENGTH | 419 | 445 | 483 |
| CHAINSTAY LENGTH ACTUAL | 450 | 450 | 450 |
| HORIZONTAL CHAINSTAY | 449 | 449 | 449 |
| FRONT CENTER | 761 | 783 | 805 |
| WHEELBASE | 1208 | 1231 | 1253 |
| BB DROP | 34 | 34 | 34 |
| HEAD TUBE LENGTH | 110 | 115 | 120 |
| HEAD TUBE ANGLE | 64.5 | 64.5 | 64.5 |
| SEAT TUBE ANGLE | 76 | 76 | 76 |
| STANDOVER HEIGHT | 725 | 744 | 771 |
| REACH | 425 | 445 | 465 |
| STACK | 632 | 637 | 641 |
Detailed Specs By Build Kit
| 3-STAR SRAM SX EAGLE | |
|---|---|
| AVAILABLE FRAME SIZES | SM, MD, LG |
| AVAILABLE COLORS | BLACK |
| FRAME | BOSCH GEN4 PERFORMANCE LINE CX 20MPH |
| DISPLAY | NINER RIP E9 150MM TRAVEL |
| FORK | ROCKSHOX ZEB R 160MM |
| SHOCK | FOX FLOAT DPX2 PERFORMANCE EVOL 3 POSITION 185X55MM TRUNNION |
| BATTERY | BOSCH POWERTUBE 625WH |
| TUBES/SEALANT | TUBES |
| FRONT WHEEL | STANS NOTUBES FLOW D, FORMULA CL-811 HUB 110X15MM FRONT |
| REAR WHEEL | STANS NOTUBES FLOW D, FORMULA ECT-148S HUB 148X12MM REAR |
| FRONT TIRE | SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4 |
| REAR TIRE | SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 29X2.35 |
| BRAKES | SRAM GUIDE RE |
| BRAKE LEVERS | SRAM GUIDE RE |
| BRAKE ROTORS | SRAM CENTERLINE 200MM CENTERLOCK |
| CHAIN | SRAM SX EAGLE 12SP |
| FRONT SHIFTER | N/A |
| REAR SHIFTER | SRAM SX EAGLE 12SP |
| FRONT DERAILLEUR | N/A |
| REAR DERAILLEUR | SRAM SX EAGLE 12SP |
| CASSETTE | SRAM PG1210 EAGLE 11-50T |
| CRANKSET | PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T |
| BOTTOM BRACKET | N/A |
| SADDLE | NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC |
| SEATPOST | KS LEV SI (S-100MM, MD-125MM, LG-150MM) |
| HANDLEBAR | RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP |
| STEM | RACE FACE AEFFECT R, 35MM CLAMP |
| HEADSET | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6 | ZS56/40 |
| GRIPS | NINER GRRRIPS L/O NYLON FLANGED |
| APPROXIMATE WEIGHT | 54.3 LBS/24.6 KG |
