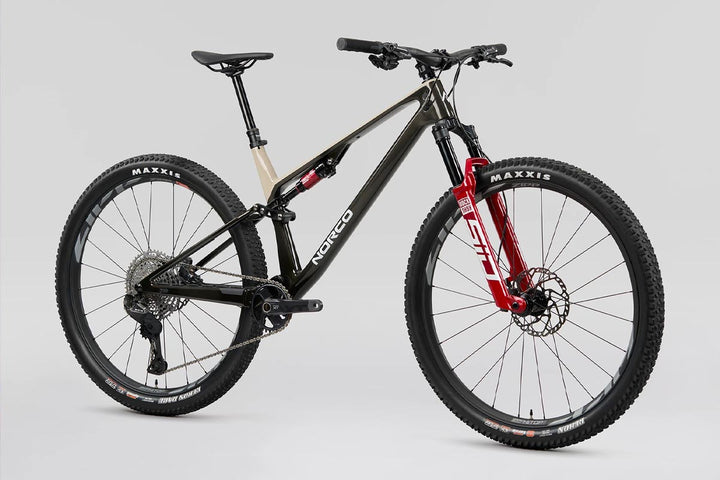

2026 Norco Revolver C1 120 Gen 4

Engineered Carbon Performance & Ride Aligned Geometry

The 2026 Norco Revolver C1 120 sets a new benchmark for cross-country speed and trail precision. Built around a premium carbon fiber frame, it’s meticulously crafted with Norco’s Ride Aligned™ Design System to ensure every rider experiences perfectly balanced handling, traction, and power transfer. Each frame size receives unique geometry and suspension tuning, creating a consistent ride feel across the entire size range.

A Universal Derailleur Hanger (UDH) and Eagle Transmission compatibility future-proof the platform, while a threaded BSA 73mm bottom bracket adds durability and simplicity for service in the field or at home.

115mm of Rear Travel — Tuned for Efficiency

Designed for XC racers who demand both climbing agility and downhill composure, the Revolver C1 120 features 115mm of rear travel paired with a 120mm fork.

• Fork: RockShox SID Ultimate 3P, 120mm travel, 44mm offset — providing featherlight control, 3-position on-the-fly adjustment, and exceptional small-bump sensitivity.

• Shock: RockShox SIDLuxe Ultimate, 190x42.5mm — tuned for maximum efficiency under power while maintaining supple traction through technical terrain.

This suspension pairing creates a responsive, race-optimized chassis that excels on steep climbs, punchy accelerations, and technical descents.

XTR Di2 Precision Drivetrain

The Revolver C1 120’s drivetrain represents the pinnacle of Shimano’s performance technology, combining XTR electronic shifting with lightweight, trail-ready efficiency.

• Shifter: Shimano XTR SW-M9250-IR I-Spec, intuitive and precise with instant gear changes.

• Derailleur: Shimano XTR RD-M9250 Di2 12-speed, delivering lightning-fast electronic shifts with no mechanical cable drag.

• Crankset: Shimano Deore CT FC-M8200, 34T chainring with optimized crank lengths per size (165–175mm).

• Cassette: Shimano XTR CS-M9200-12, 10–51T range for seamless transitions across all gradients.

• Chain: Shimano XTR CN-M9100, designed for ultra-smooth, durable performance under Di2 loads.

This drivetrain ensures unmatched responsiveness and dependability, from explosive sprint starts to precision control in technical terrain.

Confidence and Control: Shimano XT Braking System

Stopping power comes from Shimano Deore XT BR-M8220 4-piston brakes, paired with Shimano SM-RT66 rotors (180mm front / 160mm rear). The result is consistent, fade-free braking performance with an ideal balance of modulation and power — ready for the fastest XC descents and the most technical corners.

Rider Interface: Carbon Cockpit and Dropper Integration

The Revolver C1 120’s cockpit is built for speed and control, combining lightweight materials with rider-tuned fit:

• Handlebar: RaceFace ERA 35 Carbon, 760mm (S1–S2) or 780mm (S3–S5) width, 20mm rise for confident leverage and vibration damping.

• Stem: CNC Alloy 35x50mm, providing a precise steering connection.

• Seatpost: TranzX YSI36 dropper, with travel scaling from 120mm to 200mm depending on frame size for ideal saddle positioning on any gradient.

• Saddle: Fizik Terra Bidon MG Rail, combining long-distance comfort with race-day support.

This combination delivers a low, aggressive position for power and control while maintaining adjustability and all-day comfort.

Zipp 1Zero Hitop S Carbon Wheelset

The Zipp 1Zero Hitop S Carbon 29” wheels give the Revolver C1 120 a significant edge in responsiveness and traction. Featuring a 30mm internal width, they provide an ideal tire profile for modern 2.4” rubber while balancing lateral stiffness with vertical compliance for fatigue-free speed.

• Front Hub: 15x110mm Boost, 6-bolt.

• Rear Hub: 12x148mm Boost, Micro Spline, 6-bolt.
  These lightweight carbon wheels accelerate quickly and track smoothly across technical terrain, maintaining stability and precision through aggressive cornering.

Fast-Rolling Maxxis Tires for Race-Ready Grip

The Revolver C1 120 rolls on a proven Maxxis tire combo tuned for high-speed XC performance:

• Front: Maxxis Rekon 29x2.4” 3C MaxxTerra EXO — aggressive traction and control for cornering and braking.

• Rear: Maxxis Rekon Race 29x2.4” 3C MaxxSpeed EXO — faster-rolling tread with efficient grip for acceleration and climbing.

Together, they strike the perfect balance between grip, rolling speed, and durability across mixed terrain.

Precision Components for a Complete Race System

Every detail of the Revolver C1 120 reinforces its identity as a purebred XC race machine:

• FSA No 42/48ACB integrated headset, tapered 1-1/8” to 1.5” for responsive steering.

• Internally routed cables maintain a clean look and reduce maintenance.

• Threaded bottom bracket for easy serviceability and long-term reliability.

Each component is selected to maximize performance without compromise, ensuring the Revolver C1 120 performs flawlessly lap after lap.

Summary

The 2026 Norco Revolver C1 120 embodies the next generation of XC performance — ultra-light carbon construction, perfectly tuned suspension, and the instantaneous precision of Shimano XTR Di2 shifting. Paired with Zipp’s carbon wheelset and Norco’s Ride Aligned geometry, it climbs with speed, descends with confidence, and responds to every rider input with race-winning immediacy.

Whether you’re chasing the clock or flowing through technical singletrack, the Revolver C1 120 is the purest expression of speed and control in the Norco XC lineup.
