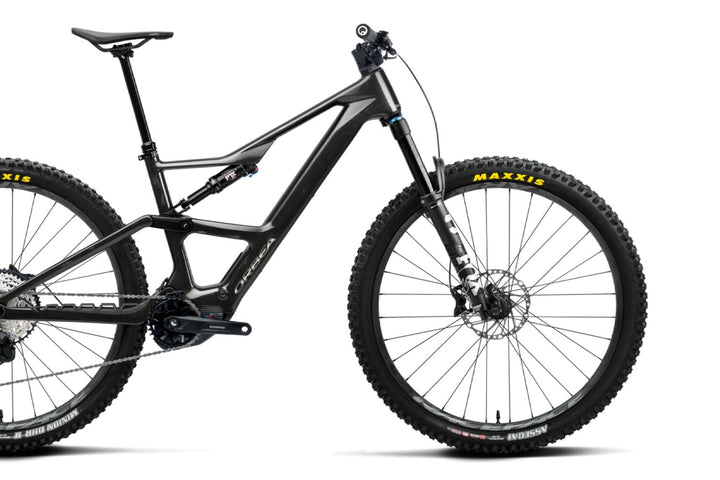

2026 Orbea Rise LT M20 630W
Carbon Frame + Shimano EP801 Motor + Fox Performance Suspension
Sale ends Sept 8th, 2026 at 11:59pm
Lifetime Warranty
Shipped Fully Built
We ship bikes fully assembled in a very large bike box, so there’s very little setup required when it arrives. Bikes are set up in store by our expert mechanics prior to packaging for shipping.
How to Set Up Your Bike
Carefully open the box and remove the packaging. Install the front wheel and straighten the handlebar. You'll also need pedals unless you bought pedals with your bike. The suspension (if there is one) will be pre-tuned to your weight. You should be able to ride within a few minutes of opening the box.
Customize This Bike
Is there anything you want to change on this bike? We can customize the bike for you before shipping it out, just get in touch. That includes anything from basic changes like swapping out the handlebars or saddle, to complex makeovers like a drivetrain swap.
Not sure exactly what you need, or if it's worth it or even a good idea? Contact us and see what we think, we'll help you figure it out. We have deep experience working with and riding all the brands we sell, and we are here to help.
Customized bikes are non-refundable unless otherwise stated.
2026 Orbea Rise LT M20 630W
Key Features
- Wheel Size: 29"
- Front Travel: 160mm
- Rear Travel: 150mm
- Frame Material: Carbon
Specs
- Orbea Rise OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148 frame
- Fox 36 Float Performance 160, Grip 3-Pos, QR15x110 fork
- Fox Float Performance 2-Pos Evol LV custom tune 210x55mm shock
- Alloy 1-1/2", Black Oxidated Bearing headset
- OC Mountain Control MC20, 0º stem
- OC Mountain Control MC31, Rise20, Width 800 handlebar
- Shimano M6120 Hydraulic Disc brakes
- Shimano SLX M7100 SGS Shadow Plus derailleur
- Shimano SLX M7100 I-Spec EV shifter
- Shimano CS-M7100 10-51t 12-Speed cassette
- Shimano M6100 chain
- Shimano Steps EM600 crank
- Race Face AR 30c Tubeless Ready wheels
- Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip tires
- OC Mountain Control MC22, 31.6mm, Dropper seatpost
- Shimano SL-MT500 I-Spec EV seatpost remote
- Fizik Terra Ridon X5 145mm saddle
- Shimano EP801 motor
- Orbea Internal 630Wh battery
- Orbea 2.Generation eBike Smart charger 42V/2-4A charger
- EN600-L remote
- OC Lock On grips
Learn More About the 2026 Orbea Rise LT M20 630W
The 2026 Orbea Rise LT M20 630W is a lightweight electric mountain bike made for riders who want natural handling with extra help on climbs. It is not built to feel like a heavy shuttle machine. Instead, it keeps the ride lively and responsive while giving riders more range, more laps, and more energy for technical trails.
The carbon Rise frame uses Orbea’s modern eMTB layout with 29-inch wheels and trail-focused geometry. A 630Wh battery gives this build the capacity for longer rides, and the Shimano EP motor support keeps power smooth and easy to manage. The result is an e-bike that still feels like a mountain bike when you are pumping terrain, changing lines, or working through tight sections.
Long-travel suspension gives the Rise LT M20 the confidence needed for rougher riding. The fork and rear shock are chosen to handle trail impacts while keeping the bike composed when speed increases. This setup works well for riders who want an assisted bike that can climb efficiently, then stay controlled on descents that demand commitment.
Shimano drivetrain parts deliver dependable shifting across a wide gear range, which is especially useful on long climbs and changing terrain. Hydraulic disc brakes bring the stopping power needed for an eMTB, where speed and weight can build quickly. The cockpit, dropper post, and trail tires round out the bike with parts selected for real mountain use rather than showroom specs.
The 2026 Orbea Rise LT M20 630W is a great fit for riders who want an electric trail bike with a lighter attitude. It extends the ride without taking away the feeling of control, flow, and connection that makes mountain biking fun.
Product Identifiers
- Barcode: 8434446982392
Product Identifiers
- Barcode: 8434446982439
Product Identifiers
- Barcode: 8434446982477
Product Identifiers
- Barcode: 8434446982514
Product Identifiers
- Barcode: 8434446982415
Product Identifiers
- Barcode: 8434446982453
Product Identifiers
- Barcode: 8434446982491
Product Identifiers
- Barcode: 8434446982538
Product Identifiers
- Barcode: 18740964
Product Identifiers
- Barcode: 18773732
Product Identifiers
- Barcode: 18806500
Product Identifiers
- Barcode: 18839268
Product Identifiers
- Barcode: 14017508
Product Identifiers
- Barcode: 14050276
Product Identifiers
- Barcode: 14083044
Product Identifiers
- Barcode: 14115812
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| Rise SL | Rise LT — High | Rise LT — Low | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | S | M | L | XL | S | M | L | XL | S | M | L | XL |
| Seat Tube (C-T) | 405 | 415 | 430 | 460 | 405 | 415 | 430 | 460 | 405 | 415 | 430 | 460 |
| Top Tube (Effective) | 568 | 594 | 620 | 647 | 569 | 595 | 622 | 649 | 570 | 596 | 623 | 650 |
| Head Tube | 95 | 100 | 110 | 120 | 95 | 100 | 110 | 120 | 95 | 100 | 110 | 120 |
| Chainstay | 441 | 441 | 441 | 441 | 440 | 440 | 440 | 440 | 442 | 442 | 442 | 442 |
| BB Drop | 37 | 37 | 37 | 37 | 26 | 26 | 26 | 26 | 34 | 34 | 34 | 34 |
| BB Height | 334 | 334 | 334 | 334 | 345 | 345 | 345 | 345 | 337 | 337 | 337 | 337 |
| Wheelbase | 1193 | 1220 | 1249 | 1279 | 1201 | 1228 | 1258 | 1287 | 1203 | 1230 | 1259 | 1288 |
| Head Angle | 65.3° | 65.3° | 65.3° | 65.3° | 64.7° | 64.7° | 64.7° | 64.7° | 64° | 64° | 64° | 64° |
| Seat Angle | 78.3° | 78.3° | 78.3° | 78.3° | 77.7° | 77.7° | 77.7° | 77.7° | 77° | 77° | 77° | 77° |
| Rake | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Reach | 441 | 466 | 491 | 516 | 435 | 460 | 485 | 510 | 428 | 453 | 478 | 503 |
| Stack | 609 | 614 | 623 | 632 | 614 | 619 | 628 | 637 | 619 | 623 | 633 | 642 |
| Fork Length | 554 | 554 | 554 | 554 | 575 | 575 | 575 | 575 | 575 | 575 | 575 | 575 |
Detailed Specs By Build Kit
Rise SL
H30 |
H10 |
M20 |
M10 |
M-LTD |
|
|---|---|---|---|---|---|
| MSRP | $5,038.95 | $6,298.95 | $7,138.95 | $8,608.95 | $11,548.95 |
| Frame | Orbea Rise SL Hydro, 140mm travel, 29" wheels, Concentric Boost 12x148 | Orbea Rise SL OMR, 140mm travel, 29" wheels, Concentric Boost 12x148 | |||
| Fork | Fox 34 Float AWL Sport 140 Rail QR15x110 | Fox 36 Float SL Performance 140, Grip, 3-Pos, 15x110 | Fox 36 Float SL Factory 140, Grip X, 15x110, Kashima | ||
| Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x50mm | Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm | |||
| Headset | Alloy 1-1/2", Black Oxidated Bearing | ||||
| Motor | Shimano EP600 RS Gen2 MC | Shimano EP801 RS Gen2 MC | |||
| Battery | Orbea Internal 540Wh | Orbea Internal 630Wh | Orbea Internal 420Wh | ||
| Range Extender | RS Range Extender GEN 2 210Wh (optional) | ||||
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A | ||||
| Remote | EN600-L | Orbea System Controller with eDropper Remote | |||
| Chainring | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine | e*thirteen Helix Race e*spec Direct Mount 32T 55mm ChainLine | |||
| Crank | Shimano Steps EM600 | Shimano Steps EM900 | |||
| Shifters | Shimano Deore M6100 | Shimano SLX M7100 I-Spec EV | Shimano XT M8250 | Shimano XTR M9250 | |
| Cassette | Shimano CS-M6100 10-51t 12-Speed | Shimano CS-M7100 10-51t 12-Speed | Shimano CS-M9200 10-51t 12-Speed | ||
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus | Shimano XT M8100 SGS Shadow Plus | Shimano SLX M7100 SGS Shadow Plus | Shimano XT M8260 SGS | Shimano XTR M9260 12s |
| Chain | Shimano M6100 | Shimano M7100 | Shimano CN-9100 | ||
| Chainguide | Orbea eBike chainguide | ||||
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 | OC Mountain Control MC21 Alu SL, Rise20, Width 800 | OC Mountain Control MC10 Carbon, Rise 20, Width 800 | ||
| Stem | OC Mountain Control MC20, 0º | OC Mountain Control MC11 Alu SL, 0º | |||
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma | ||||
| Brakes | Shimano MT201 Hydraulic Disc | Shimano M6120 Hydraulic Disc | Shimano M6100 Hydraulic Disc | Shimano M6120 Hydraulic Disc | Shimano XTR 9220 Hydraulic Disc |
| Rotors | Shimano SMRT30 180mm front / 180mm rear | Shimano RT64 180mm front / 180mm rear | Galfer Wave 180mm front / 180mm rear | ||
| Wheels | Alloy, Tubeless, 29", 29c, 32H | Race Face AR 30c Tubeless Ready | Oquo Mountain Control MC32TEAM | Oquo Mountain Control MC32LTD | |
| Front Tire | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown | ||||
| Rear Tire | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown | ||||
| Saddle | Fizik Terra Ridon X5 145mm | Fizik Terra Ridon X1 145mm | |||
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper | OC Mountain Control MC10, 31.6mm, Electronic Dropper | |||
| Seatpost Lever | Shimano SL-MT500 | Shimano SL-MT500 I-Spec EV | Integrated in RS remote | ||
| Grips | OC Lock On | Ergon GXR | — | ||
| Tools | — | OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal) | |||
Rise LT
H20 |
H10 |
M20 |
M10 |
M-TEAM |
|
|---|---|---|---|---|---|
| MSRP | $5,983.95 | $6,928.95 | $7,558.95 | $9,028.95 | $11,968.95 |
| Frame | Orbea Rise LT Hydro, 150mm travel, 29" wheels, Concentric Boost 12x148 | Orbea Rise LT OMR, 150mm travel, 29" wheels, Concentric Boost 12x148 | |||
| Fork | Fox 36 Float AWL HD Sport 160 Rail QR15x110 | Fox 36 Float Performance 160, Grip 3-Pos, QR15x110 | Fox 36 Float Factory 160, Grip X, QR15x110, Kashima | ||
| Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x55mm | Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm | Fox DHX Factory 2-Pos Adjust custom tune 210x55mm | ||
| Headset | Alloy 1-1/2", Black Oxidated Bearing | ||||
| Motor | Shimano EP600 RS Gen2 MC | Shimano EP801 RS Gen2 MC | |||
| Battery | Orbea Internal 630Wh | Orbea Internal 420Wh | |||
| Range Extender | RS Range Extender GEN 2 210Wh (optional) | ||||
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A | ||||
| Remote | EN600-L | Orbea System Controller with eDropper Remote | |||
| Chainring | e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine | e*thirteen Helix Race e*spec Direct Mount 32T 55mm ChainLine | |||
| Crank | Shimano Steps EM600 | Shimano Steps EM900 | |||
| Shifters | Shimano Deore M6100 I-Spec EV | Shimano SLX M7100 I-Spec EV | Shimano XT M8250 | Shimano XTR M9250 | |
| Cassette | Shimano CS-M7100 10-51t 12-Speed | Shimano CS-M9200 10-51t 12-Speed | |||
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus | Shimano XT M8100 SGS Shadow Plus | Shimano SLX M7100 SGS Shadow Plus | Shimano XT M8260 SGS | Shimano XTR M9260 12s |
| Chain | Shimano M6100 | Shimano M7100 | Shimano CN-9100 | ||
| Chainguide | Orbea eBike chainguide | ||||
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 | OC Mountain Control MC10 Carbon, Rise 20, Width 800 | |||
| Stem | OC Mountain Control MC20, 0º | OC Mountain Control MC11 Alu SL, 0º | |||
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma | ||||
| Brakes | Shimano MT420 Hydraulic Disc | Shimano M6120 Hydraulic Disc | Shimano XT 8220 Hydraulic Disc | Shimano XTR 9220 Hydraulic Disc | |
| Rotors | Galfer Wave 203mm front / 180mm rear | Shimano RT64 203mm front / 180mm rear | Galfer Wave 203mm front / 180mm rear | ||
| Wheels | Race Face AR 30c Tubeless Ready | Oquo Mountain Control MC32TEAM | Oquo Mountain Control MC32LTD | ||
| Front Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip | ||||
| Rear Tire | Maxxis Minion DHR II 2.40" WT FB 120TPI 3C MaxxTerra EXO+/TR | ||||
| Saddle | Fizik Terra Ridon X5 145mm | Fizik Terra Ridon X1 145mm | |||
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper | OC Mountain Control MC10, 31.6mm, Electronic Dropper | |||
| Seatpost Lever | Shimano SL-MT500 I-Spec EV | Integrated in RS remote | |||
| Grips | OC Lock On | — | |||
| Tools | — | OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal) | |||
