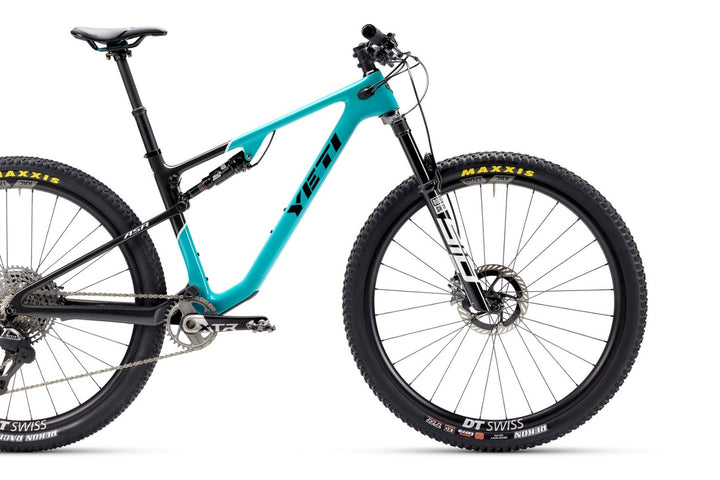

2026 Yeti ASR T4 XTR Di2
$8,600.00
$8,600.00
$8,600.00
$8,600.00
$8,600.00
Free shipping or in-store pickup
2026 Yeti ASR T4 XTR Di2
$8,600.00
$8,600.00
$8,600.00
$8,600.00
$8,600.00
Key Features
- Wheel Size: 29"
- Front Travel: 120mm
- Rear Travel: 115mm
- Frame Material: Carbon
Specs
- TURQ Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle
- RockShox SID Ultimate 3P Remote 120mm fork
- RockShox SIDLuxe Ultimate 3P Remote shock
- DT Swiss XM1700 30mm wheel set
- Shimano XTR Di2 rear derailleur
- Shimano XTR 32T 170mm Crankset
- Shimano XTR chain
- Shimano XTR 2 Piston brakes
- Shimano Freeza 180/Shimano Freeza 160 rotors
- Fox Transfer SL Performance Elite 31.6 / XS: 100mm, SM: 125mm, MD-XL: 150mm seatpost
- Maxxis Rekon 2.4 EXO front Tire
- Maxxis Rekon Race 2.4 EXO rear tire
- Cane Creek 70 Hellbender Lite headset
- RaceFace Next SL35x740 handlebar
- Bike Yoke Barkeeper 55mm stem
- WTB Solano Chromoly Saddle
Learn More About the 2026 Yeti ASR T4 XTR Di2
The 2026 Yeti ASR T4 XTR Di2 focuses purely on cross-country racing performance with a lightweight, efficient build that doesn't mess around. Its TURQ Series carbon frame is stiff and strong while staying impressively light. That frame is designed to help you climb quicker and descend with confidence. It also keeps you comfortable on longer rides. Details like a threaded bottom bracket and Boost 148 spacing make sure everything runs smoothly and stays reliable.
Suspension
The suspension gets serious with 120mm up front and 115mm out back, using RockShox’s top-of-the-line SID Ultimate fork and SIDLuxe Ultimate shock. Both offer remote lockout with three positions: open, pedal, and lock. This allows you to adjust suspension on the fly depending on the trail. This setup keeps the bike responsive and planted whether you’re bombing downhill or pushing hard uphill.
Drivetrain
Shifting is quick and precise thanks to Shimano’s XTR Di2 electronic drivetrain. The wireless rear derailleur and integrated crankset and chain deliver rapid gear changes that never miss a beat, even under heavy load. The clean battery integration helps maintain a sleek look and keeps your cockpit clutter-free.
Brakes
You'll also find a set of Shimano XTR 2-piston brakes paired with Freeza rotors (180mm front, 160mm rear). This combo brings strong, consistent braking and excellent heat management. You stay confident on technical descents and tight corners.
Comfort and Control
Comfort and control come from a thoughtfully selected cockpit. The RaceFace Next SL35 carbon handlebar measures 740mm wide, giving you plenty of leverage. Paired with a Bike Yoke Barkeeper stem and a WTB Solano saddle, the setup balances support and precision. A Fox Transfer SL Performance Elite dropper post (sizes vary from 100mm to 150mm) adds quick adjustability without adding weight.
Wheels and Tires
Rolling on DT Swiss XM1700 30mm wheels wrapped in Maxxis Rekon tires, the ASR T4 delivers a smooth blend of traction and speed. The front Rekon 2.4 EXO provides grip while the rear Rekon Race 2.4 EXO keeps rolling resistance low. This is perfect for XC conditions that vary from loose dirt to packed singletrack.
In short, this bike is built for riders who want to race hard and ride smart, from short track sprints to marathon days on the trail.
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| SIZE | XS | S | M | L | XL |
|---|---|---|---|---|---|
| SEAT TUBE LENGTH | 400 | 410 | 430 | 470 | 495 |
| EFFECTIVE TOPTUBE LENGTH | 554 | 574 | 600 | 610 | 630 |
| HEADTUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| EFF. SEAT TUBE ANGLE | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| ACTUAL SEAT TUBE ANGLE | 70.4 | 70.8 | 71.2 | 71.6 | 72.1 |
| CHAINSTAY LENGTH | 433 | 435 | 437 | 439 | 441 |
| WHEELBASE | 1122 | 1144 | 1174 | 1201 | 1236 |
| ESTIMATED BB HEIGHT | 335 | 335 | 335 | 335 | 335 |
| STANDOVER | 768 | 768 | 771 | 771 | 776 |
| HEADTUBE LENGTH | 92 | 92 | 101 | 111 | 133 |
| AXLE TO CROWN | 531 | 531 | 531 | 531 | 531 |
| OFFSET | 44 | 44 | 44 | 44 | 44 |
| STACK | 592 | 592 | 600 | 610 | 630 |
| REACH | 400 | 420 | 445 | 465 | 490 |
| FRONT CENTER | 689 | 709 | 737 | 762 | 795 |
| VERTICAL FORK TRAVEL | 110 | 110 | 110 | 110 |
Detailed Specs By Build Kit
| BUILD | T5 ULT XX SL TRANSMISSION | T3 X0 TRANSMISSION | T4 XX1 TURQ | T2 TURQ | C3 GX TRANSMISSION | C2 | FRAME ONLY |
|---|---|---|---|---|---|---|---|
| DETAILS | TURQ Carbon Frame, 120mm SID ULT Flight Attendant and SIDLUXE Flight Attendant, SRAM XX SL T-Type with Power Meter and LEVEL ULT Brakes | TURQ Carbon Frame, 120mm SID ULT 3P and SIDLUXE ULT 3p with Twistloc ULT, SRAM X0 T-Type and LEVEL TLM Brakes | TURQ Carbon Frame, 120mm SID ULT 3P and SIDLUXE ULT 3p with Twistloc ULT, SRAM XX1 and LEVEL TLM Brakes | TURQ Carbon Frame, 120mm SID ULT 3P & SIDLUXE ULT 3p with Twistloc ULT, SRAM X01 Eagle & LEVEL TLM Brakes | C/Series Carbon Frame, 120mm SID 3P and SIDLUXE SELECT+ 3p, SRAM GX T-Type and LEVEL TL Brakes | C/Series Carbon Frame, 120mm SID 3P and SIDLUXE SELECT+ 3p, SRAM GX Eagle and LEVEL TL Brakes | T-Series Carbon Frame, SIDLUXE ULT 3p with Twistloc ULT |
| FRAME | TURQ Series carbon fiber frame, threaded bottom bracket, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle | TURQ Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle | TURQ Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle | TURQ Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle | C/Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle. | C/Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle. | TURQ Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle |
| FORK | ROCK SHOX SID ULTIMATE FLIGHT ATTENDANT 120MM | ROCK SHOX SID ULTIMATE 3P REMOTE 120MM | ROCK SHOX SID ULTIMATE 3P REMOTE 120MM | ROCK SHOX SID ULTIMATE 3P REMOTE 120MM | ROCK SHOX SID SELECT 3P 120MMUPGRADABLE | ROCK SHOX SID SELECT 3P 120MMUPGRADABLE | |
| MATERIAL | TURQ SERIES | TURQ SERIES | TURQ SERIES | TURQ SERIES | C/SERIES | C/SERIES | TURQ SERIES |
| WEIGHT | 22.97 | 24.3 | 23.58 | 24.04 | 26.02 | 25.8 | 4.03 |
| TRAVEL | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") |
| REAR SHOCK | ROCK SHOX SIDLUXE ULTIMATE FLIGHT ATTENDANT | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE | ROCK SHOX SIDLUXE SELECT + 3pUPGRADABLE | ROCK SHOX SIDLUXE SELECT + 3pUPGRADABLE | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE |
| WHEELSET | DT SWISS XRC 1200 SPLINE 30MM | DT SWISS XM1700 30MMUPGRADABLE | DT SWISS XM1700 30MMUPGRADABLE | DT SWISS XM1700 30MMUPGRADABLE | DT SWISS M1900 30MM | DT SWISS M1900 30MM | |
| REAR DER | SRAM XX SL EAGLE AXS TRANSMISION | SRAM X0 EAGLE AXS TRANSMISSION | SRAM XX1 EAGLE | SRAM X01 EAGLE | SRAM GX EAGLE AXS TRANSMISSION | SRAM GX EAGLE | |
| SHIFT | SRAM AXS POD CONTROLLER | SRAM AXS POD CONTROLLER | SRAM XX1 EAGLE | SRAM X01 EAGLE | SRAM AXS POD CONTROLLER | SRAM GX EAGLE | |
| CRANK | SRAM XX SL TRANSMISSION 32T 170MM POWER METER | SRAM X0 EAGLE TRANSMISSION 32T 170MM | SRAM XX1 EAGLE 32T 170MM | SRAM X1 EAGLE 32T 170MM | SRAM GX EAGLE TRANSMISSION 32T 170MM | SRAM GX EAGLE 32T 170MM | |
| BB | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | |
| CASSETTE | SRAM XX EAGLE SL TRANSMISSION 10-52 | SRAM X0 EAGLE TRANSMISSION 10-52 | SRAM XX1 EAGLE 1299 10-52 | SRAM X01 EAGLE 1295 10-52 | SRAM GX EAGLE TRANSMISSION 10-52 | SRAM GX EAGLE 1275 10-52 | |
| CHAIN | SRAM XX EAGLE SL TRANSMISSION FLATTOP | SRAM X0 EAGLE TRANSMISSION FLATTOP | SRAM XX1 EAGLE | SRAM GX EAGLE | SRAM GX EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE | |
| BRAKES | SRAM LEVEL ULTIMATE 2 PISTON | SRAM LEVEL TLM 2 PISTON | SRAM LEVEL TLM 2PISTON | SRAM LEVEL TLM 2 PISTON | SRAM LEVEL TL 2 PISTON | SRAM LEVEL TL 2 PISTON | |
| ROTORS | SRAM CENTERLINE X 180/SRAM CENTERLINE X 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | |
| POST | SRAM REVERB AXS 31.6MM / XS: 100MM, SM: 125MM, MD: 150MM LG-XL: 170MM | FOX TRANSFER SL FACTORY 31.6MM / XS-SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL FACTORY 31.6MM / XS-SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS-SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS-SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS-SM: 125MM, MD-XL: 150MM | |
| FRONT TIRE | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | |
| REAR TIRE | MAXXIS REKON RACE 2.35 EXO | MAXXIS REKON RACE 2.35 EXO | MAXXIS REKON RACE 2.35 EXO | MAXXIS REKON RACE 2.35 EXO | MAXXIS REKON RACE 2.35 EXO | MAXXIS REKON RACE 2.35 EXO | |
| HEADSET | CANE CREEK 70 HELLBENDER LITE | CANE CREEK 70 HELLBENDER LITE | CANE CREEK 70 HELLBENDER LITE | CANE CREEK 70 HELLBENDER LITE | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | |
| BAR | RACE FACE NEXT SL 35X740 | RACE FACE NEXT SL 35X740 | RACE FACE NEXT SL 35X740 | RACE FACE NEXT SL 35X740 | BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM | BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM | |
| STEM | BIKE YOKE BARKEEPER 55MM | BIKE YOKE BARKEEPER 55MM | BIKE YOKE BARKEEPER 55MM | BIKE YOKE BARKEEPER 55MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | |
| GRIPS | ESI CHUNKY | SRAM TWISTLOC ULT 3P | SRAM TWISTLOC ULT 3P | SRAM TWISTLOC ULT 3P | ODI ELITE PRO | ODI ELITE PRO | |
| SEAT | SOLANO TITANIUM | SOLANO CHROMOLY SL | SOLANO TITANIUM | SOLANO CHROMOLY SL | SOLANO CHROMOLY SL | SOLANO CHROMOLY SL | |
| UPGRADES | DT Swiss XRC 1200 Carbon Wheelset +$2,000 | DT Swiss XRC 1200 Carbon Wheelset +$2,000 | DT Swiss XRC 1200 Carbon Wheelset +$2,000 | RockShox Ultimate Suspension with TwistLoc +$600 | RockShox Ultimate Suspension with TwistLoc +$600 | ||
| PRICE | $13,900 | $8,600 | $7,900 | $7,200 | $6,600 | $5,600 | $4,000 |
