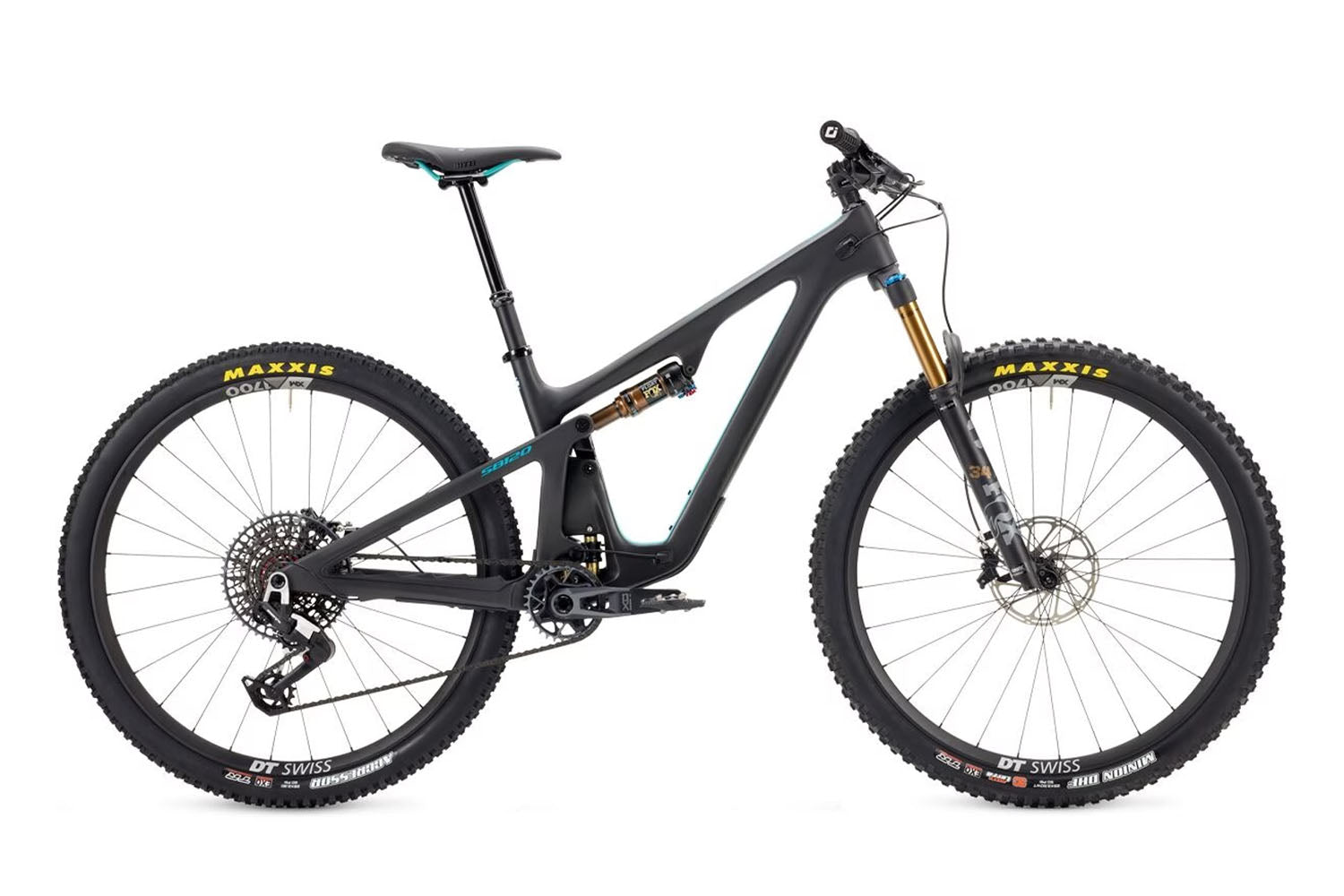

2026 Yeti SB120 LR T2 X0/90
SRAM X0/90 Transmission
Limited Lifetime Warranty
Shipped Fully Built
We ship bikes fully assembled in a very large bike box, so there’s very little setup required when it arrives. Bikes are set up in store by our expert mechanics prior to packaging for shipping.
How to Set Up Your Bike
Carefully open the box and remove the packaging. Install the front wheel and straighten the handlebar. You'll also need pedals unless you bought pedals with your bike. The suspension (if there is one) will be pre-tuned to your weight. You should be able to ride within a few minutes of opening the box.
Customize This Bike
Is there anything you want to change on this bike? We can customize the bike for you before shipping it out, just get in touch. That includes anything from basic changes like swapping out the handlebars or saddle, to complex makeovers like a drivetrain swap.
Not sure exactly what you need, or if it's worth it or even a good idea? Contact us and see what we think, we'll help you figure it out. We have deep experience working with and riding all the brands we sell, and we are here to help.
Customized bikes are non-refundable unless otherwise stated.
Buy it with
2026 Yeti SB120 LR T2 X0/90
Key Features
- Wheel Size: 29"
- Front Travel: 140mm
- Rear Travel: 120mm
- Frame Material: Carbon
Specs
- TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
- RockShox Pike Ultimate 140mm fork
- RockShox Super Deluxe Ultimate shock
- DT Swiss XM1700 30mm Ratchet wheelset
- SRAM Eagle 90 Transmission derailleur
- SRAM Eagle 90 Transmission 30T 170mm crankset
- SRAM DUB BSA 73 bottom bracket
- SRAM X0 Eagle Transmission 10-52 cassette
- SRAM X0 Eagle Transmission Flattop chain
- SRAM Motive Bronze Brakes
- SRAM HS2 200/SRAM HS2 180 rotors
- Fox Transfer 31.6mm seatpost / XS: 125mm, SM: 150mm, MD: 175mm, LG-XXL: 200mm
- Maxxis Minion DHF 2.5 EXO front tire
- Maxxis Aggressor 2.3 EXO rear tire
- Cane Creek 40 Integrated headset
- Yeti Carbon 35x780mm handlebar
- Burgtec Enduro MK3 35x50mm stem
- WTB Solano Chromoly saddle
Learn More About the 2026 Yeti SB120 LR T2 X0/90
The 2026 Yeti SB120 LR T2 X0/90 is the evolution of modern short-travel trail aggression—light, precise, and built to punch above its travel class. With the TURQ Series carbon frame, updated Switch Infinity V2 platform, and SRAM’s latest Transmission drivetrain, this build is made for riders who want all-day efficiency with the confidence to charge descents.
Frame & Suspension Platform
-
TURQ Series Carbon Fiber Frame: Yeti’s premium carbon construction provides a stiff, lightweight, and durable chassis built to handle technical terrain.
-
Switch Infinity V2 Technology: The refined dual-rail suspension design delivers efficient pedaling with buttery mid-stroke support and bottom-out control.
-
Key Frame Features:
-
Threaded bottom bracket
-
Internally tunneled cable routing
-
148mm x 12mm BOOST rear spacing
-
Universal Derailleur Hanger (UDH)
-
Sealed Enduro Max pivot bearings
-
Replaceable axle and hardware
-
Suspension Setup
-
Fork: RockShox Pike Ultimate – 140mm travel, highly adjustable and trail-tuned for precision and stiffness.
-
Rear Shock: RockShox Super Deluxe Ultimate – delivers control and support across technical climbs and fast descents.
Drivetrain & Crankset
-
Derailleur: SRAM Eagle 90 Transmission – full-mount, hangerless interface for ultra-precise shifting under load.
-
Crankset: SRAM Eagle 90 Transmission, 30T, 170mm
-
Bottom Bracket: SRAM DUB BSA 73mm
-
Cassette: SRAM X0 Eagle Transmission 10-52t – massive 520% range.
-
Chain: SRAM X0 Eagle Transmission Flattop – engineered for strength and quiet engagement.
Wheelset & Tires
-
Wheels: DT Swiss XM1700, 30mm internal, Ratchet drive – dependable, lightweight, and trail-tough.
-
Front Tire: Maxxis Minion DHF 2.5 EXO – leading cornering traction and control.
-
Rear Tire: Maxxis Aggressor 2.3 EXO – fast-rolling with balanced grip and durability.
Braking System
-
Brakes: SRAM Motive Bronze – powerful and consistent for aggressive riding.
-
Rotors: SRAM HS2
-
Front: 200mm
-
Rear: 180mm
-
Cockpit & Contact Points
-
Handlebar: Yeti Carbon 35mm x 780mm for stiffness and control.
-
Stem: Burgtec Enduro MK3, 35mm clamp x 50mm length – confidence-inspiring fit and durability.
-
Headset: Cane Creek 40 Integrated
-
Saddle: WTB Solano Chromoly – supportive for long miles.
Dropper Post
-
Fox Transfer, 31.6mm diameter
-
XS: 125mm
-
SM: 150mm
-
MD: 175mm
-
LG–XXL: 200mm
Smooth actuation and long-travel options for modern trail riding.
-
The Total Package
The SB120 LR T2 X0/90 is a short-travel 29er that thinks big. With TURQ carbon construction, the updated Switch Infinity platform, Transmission drivetrain, and dialed suspension setup, it offers surgical climbing precision and surprising descending confidence. Whether you’re linking backcountry singletrack or hunting high-speed flow, this build is ready to elevate every mile.
Product Identifiers
- Barcode: 44596708
Product Identifiers
- Barcode: 44629476
Product Identifiers
- Barcode: 44662244
Product Identifiers
- Barcode: 44695012
Product Identifiers
- Barcode: 44727780
Product Identifiers
- Barcode: 44760548
Geometry Data By Frame Size
Measurements primarily in millimeters (mm) unless otherwise noted.
| SIZE | XS | SM | MD | LG | XL | XXL |
| SEAT TUBE LENGTH | 345 | 365 | 400 | 440 | 470 | 485 |
| EFFECTIVE TOPTUBE LENGTH | 540 | 571 | 603 | 625 | 652 | 672 |
| HEADTUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| EFF. SEAT TUBE ANGLE | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| ACTUAL SEAT TUBE ANGLE | 71.1 | 71.5 | 71.9 | 72.3 | 72.7 | 73.2 |
| CHAINSTAY LENGTH | 433 | 435 | 437 | 439 | 441 | 443 |
| WHEELBASE | 1122 | 1157 | 1191 | 1217 | 1249 | 1274 |
| ESTIMATED BB HEIGHT | 335 | 335 | 335 | 335 | 335 | 335 |
| STANDOVER | 699 | 709 | 714 | 718 | 720 | 725 |
| HEADTUBE LENGTH | 92 | 98 | 104 | 115 | 126 | 147 |
| FORK AXLE TO CROWN | 544 | 544 | 544 | 544 | 544 | 544 |
| FORK OFFSET | 44 | 44 | 44 | 44 | 44 | 44 |
| STACK | 604 | 610 | 615 | 625 | 635 | 655 |
| REACH | 395 | 425 | 455 | 475 | 500 | 515 |
| FRONT CENTER | 689 | 722 | 754 | 778 | 808 | 831 |
| VERTICAL FORK TRAVEL | 119 | 119 | 119 | 119 | 119 | 119 |
Detailed Specs By Build Kit
| BUILD KIT | X0 TRANSMISSION | LR T3 X0 TRANSMISSION | LR T2 | T2 | C3 GX TRANSMISSION | LR C2 | C2 | FRAME ONLY |
| MSRP | $8,600 | $8,600 | $7,400 | $7,200 | $6,800 | $6,500 | $5,800 | $4,300 |
| Details | TURQ Carbon Frame, 130mm Fox Factory 34 GRIP X and FLOAT, SRAM X0 T-Type and G2 RSC Brakes | TURQ Carbon Frame, 140mm RockShox Pike Ultimate and Super Deluxe Ultimate, SRAM X0 T-Type and Code RSC Brakes | TURQ Carbon Frame, 140mm RockShox Pike Ultimate and Super Deluxe Ultimate, SRAM X01 Eagle and Code RSC Brakes | TURQ Carbon Frame, 130mm Fox Factory 34 GRIP X and FLOAT, SRAM X01 Eagle and G2 RSC Brakes | C/Series Carbon Frame, 130mm Fox Performance 34 and Float DPS, SRAM GX T-Type and G2 R Brakes | C/Series Carbon Frame, 140mm RockShox Pike Ultimate and Super Deluxe Ultimate, SRAM GX Eagle and Code R Brakes | C/Series Carbon Frame, 130mm Fox Performance 34 and Float DPS, SRAM GX Eagle and G2 R Brakes | TURQ series carbon, Fox Factory Float |
| Frame | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
| Fork | FOX FACTORY 34 GRIP X/130MM | ROCK SHOX PIKE ULTIMATE/140MM | ROCK SHOX PIKE ULTIMATE/140MM | FOX FACTORY 34 GRIP X/130MM | FOX PERFORMANCE 34/130MMUpgradable | ROCK SHOX PIKE ULTIMATE/140MM | FOX PERFORMANCE 34/130MMUpgradable | |
| Material | TURQ SERIES | TURQ SERIES | TURQ SERIES | TURQ SERIES | C/SERIES | C/SERIES | C/SERIES | TURQ SERIES |
| Weight | 29.39 | 30.25 | 29.87 | 29.38 | 29.99 | 30.92 | 30.48 | 6.66 |
| Travel | 120MM (4.7"") | 120MM (4.7"") | 120MM (4.7"") | 120MM (4.7"") | 120MM (4.7"") | 120MM (4.7"") | 120MM (4.7"") | 120MM (4.7"") |
| Rear Shock | FOX FACTORY FLOAT | ROCK SHOX SUPER DELUXE ULTIMATE | ROCK SHOX SUPER DELUXE ULTIMATE | FOX FACTORY FLOAT | FOX PERFORMANCE FLOAT DPSUpgradable | ROCK SHOX SUPER DELUXE ULTIMATE | FOX PERFORMANCE FLOAT DPSUpgradable | FOX FACTORY FLOAT |
| Wheelset | DT SWISS XM1700 30MMUpgradable | DT SWISS XM1700 30MMUpgradable | DT SWISS XM1700 30MMUpgradable | DT SWISS XM1700 30MMUpgradable | DT SWISS M1900 30MM | DT SWISS M1900 30MM | DT SWISS M1900 30MM | |
| Rear Der | SRAM X0 EAGLE AXS TRANSMISSION | SRAM X0 EAGLE AXS TRANSMISSION | SRAM X01 EAGLE | SRAM X01 EAGLE | SRAM GX EAGLE AXS TRANSMISSION | SRAM GX EAGLE | SRAM GX EAGLE | |
| Shift | SRAM AXS POD CONTROLLER | SRAM AXS POD CONTROLLER | SRAM X01 EAGLE | SRAM X01 EAGLE | SRAM AXS POD CONTROLLER | SRAM GX EAGLE | SRAM GX EAGLE | |
| Crank | SRAM X0 EAGLE TRANSMISSION 30T 170MM | SRAM X0 EAGLE TRANSMISSION 30T 170MM | SRAM X1 EAGLE CARBON 30T 170MM | SRAM X1 EAGLE CARBON 30T 170MM | SRAM GX EAGLE TRANSMISSION 30T 170MM | SRAM GX EAGLE 30T 170MM | SRAM GX EAGLE 30T 170MM | |
| BB | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | |
| Cassette | SRAM X0 EAGLE TRANSMISSION 10-52 | SRAM X0 EAGLE TRANSMISSION 10-52 | SRAM X01 EAGLE 1295 10-52 | SRAM X01 EAGLE 1295 10-52 | SRAM GX EAGLE TRANSMISSION 10-52 | SRAM GX EAGLE 1275 10-52 | SRAM GX EAGLE 1275 10-52 | |
| Chain | SRAM X0 EAGLE TRANSMISSION FLATTOP | SRAM X0 EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE | SRAM GX EAGLE | SRAM GX EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE | SRAM GX EAGLE | |
| Brakes | SRAM G2 RSC | SRAM CODE RSC | SRAM CODE RSC | SRAM G2 RSC | SRAM G2 R | SRAM CODE R | SRAM G2 R | |
| Rotors | SRAM CENTERLINE 180/SRAM CENTERLINE 180 | SRAM CENTERLINE 200/SRAM CENTERLINE 180 | SRAM CENTERLINE 200/SRAM CENTERLINE 180 | SRAM CENTERLINE 180/SRAM CENTERLINE 180 | SRAM CENTERLINE 180/SRAM CENTERLINE 180 | SRAM CENTERLINE 200/SRAM CENTERLINE 180 | SRAM CENTERLINE 180/SRAM CENTERLINE 180 | |
| Post | FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XXL: 200MM | FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XXL: 200MM | FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XXL: 200MM | FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XXL: 200MM | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM | |
| Front Tire | MAXXIS MINION DHF 2.5 EXO | MAXXIS MINION DHF 2.5 EXO | MAXXIS MINION DHF 2.5 EXO | MAXXIS MINION DHF 2.5 EXO | MAXXIS MINION DHF 2.5 EXO | MAXXIS MINION DHF 2.5 EXO | MAXXIS MINION DHF 2.5 EXO | |
| Rear Tire | MAXXIS AGGRESSOR 2.3 EXO | MAXXIS AGGRESSOR 2.3 EXO | MAXXIS AGGRESSOR 2.3 EXO | MAXXIS AGGRESSOR 2.3 EXO | MAXXIS AGGRESSOR 2.3 EXO | MAXXIS AGGRESSOR 2.3 EXO | MAXXIS AGGRESSOR 2.3 EXO | |
| Headset | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | |
| Bar | YETI CARBON 35X780MM | YETI CARBON 35X780MM | YETI CARBON 35X780MM | YETI CARBON 35X780MM | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM | |
| Stem | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | |
| Grips | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | |
| Seat | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM | SILVERADO CUSTOM |
